Section 1 — Hero
**H1:** Acoustic Glass for Phone Booths
**Subheading:** Compact, Safety-Rated Acoustic Glazing for Office Phone Booths and Acoustic Call Booths
**Key Specs Badge:**
`Acoustic Laminated Glass` ｜ `Compact Acoustic IGU` ｜ `STC 35–43` ｜ `Tempered Safety Glass` ｜ `CNC Cut-outs` ｜ `OEM`
**CTA Buttons:**
[Request a Quote] [Send Your Glass Specification]
Section 2 — Application Definition

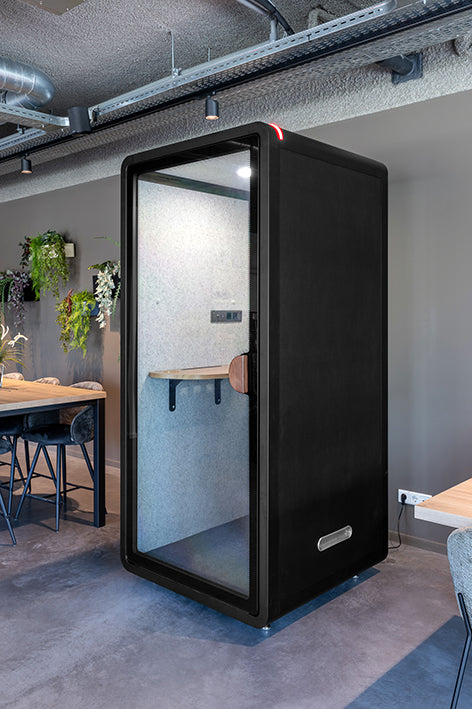

**H2:** What Is Phone Booth Acoustic Glass?
Office phone booths are small, single-user enclosures designed for private voice calls, video meetings, and focused work within open-plan workplaces. Because the enclosure is compact, the glazing occupies a relatively large proportion of the total surface area—which means the glass has an unusually high impact on the booth's overall acoustic performance.
Phone Booth Acoustic Glass refers to the specialized glass components—side panels, front glazing, and the door leaf—engineered for the unique constraints of small acoustic cabins: limited wall thickness, tight framing profiles, integrated ventilation, and the need for a small but fully sealed door.
Unlike glazing for larger office pods, phone booth glass must deliver meaningful sound reduction in a **thin, lightweight, safety-compliant** build that fits standard aluminum extrusion systems.
*(~110 words, 30 秒可读完)*
**Why Phone Booths Need Purpose-Built Acoustic Glass:**
- **One-person privacy** — Even a short call must not disturb nearby desks
- **High glass-to-volume ratio** — Glass dominates the enclosure surface, so its STC directly caps the whole-booth result
- **Compact door** — Small doors are hard to seal; glass must integrate precisely with drop seals and hinges
- **Ventilation openings** — Fan cut-outs and intake slots must not become acoustic leaks
- **Weight limits** — Thin, light glass is essential for portable / flat-pack booth designs
- **Safety in commercial interiors** — Fully tempered and laminated for user protection
Section 3 — Acoustic Requirements
**H2:** Acoustic Requirements for Phone Booths
| Requirement | Why It Matters |
|-------------|---------------|
| **Speech Privacy** | Prevent phone/video conversations from reaching open-office desks |
| **External Noise Isolation** | Block nearby talking and office ambient noise from entering the booth |
| **Compact Cavity** | Fit within slim aluminum profiles (often ≤ 40 mm total wall thickness) |
| **Door Sealing** | The small door and its perimeter are the #1 acoustic weak point |
| **Ventilation Compatibility** | Fan and intake cut-outs must not leak sound |
| **Lightweight Build** | Keep total booth weight manageable for portable / flat-pack designs |
| **Safety & Compliance** | Protect users in enclosed commercial spaces (tempered + laminated) |
Section 4 — Recommended Glass Solutions
**H2:** Recommended Acoustic Glass for Phone Booths
| Glass Solution | Typical Structure | Acoustic Target* | Recommended Use |
|----------------|-------------------|------------------|-----------------|
| Acoustic Laminated Glass | 5T + Acoustic PVB + 5T | STC 35–38 | Compact call booth, focus booth |
| Acoustic Laminated Glass | 6T + Acoustic PVB + 6T | STC 39–41 | Standard office phone booth |
| Acoustic Laminated Glass | 8T + Acoustic PVB + 8T | STC 41–43 | Premium acoustic call booth |
| Acoustic Insulated Glass (Compact IGU) | 5T + 9Ar + 5T | STC 40–43 | Slim-wall high-performance booth |
| Acoustic Laminated Insulated Glass | 5T+PVB+5T + 9Ar + 5T | STC 43–45 | Executive / recording-grade booth |
*\*Indicative performance only. Actual acoustic performance depends on the complete glazing, framing, seals, door, ventilation, and booth construction.*
**Internal linking :**
- [Acoustic Laminated Glass](/acouspace/products/acoustic-glass/acoustic-laminated-glass/)
- [Acoustic Insulated Glass](/acouspace/products/acoustic-glass/acoustic-insulated-glass/)
- [Acoustic Laminated Insulated Glass](/acouspace/products/acoustic-glass/acoustic-laminated-insulated-glass/)
Section 5 — Glass Structure Diagram
**H2:** Glass Structure for Phone Booths
**Standard Build (Most Common — Thin & Light):**
┌──────────────────────────┐
│ 5 mm / 6 mm Tempered │
├──────────────────────────┤
│ Acoustic PVB Interlayer │
├──────────────────────────┤
│ 5 mm / 6 mm Tempered │
└──────────────────────────┘
↓
Speech Privacy · Door Sealing · Safety · Lightweight
```
*Overall thickness ~10–12 mm — fits slim aluminum profiles; ideal for side panels and doors.*
**High-Performance Build (Compact IGU Option):**
```
┌──────────────────────────┐
│ Acoustic Laminated Glass│
├──────────────────────────┤
│ Argon Cavity (9–12 mm) │
├──────────────────────────┤
│ Tempered Glass (5–6 mm) │
└──────────────────────────┘
↓
Higher STC · Thermal Control · Still Slim
```
*Compact cavity preserves narrow wall design while adding mass + decoupling.*
---
Section 6 — Performance
**H2:** Acoustic Performance & Testing
| Performance | Typical Range / Target |
|-------------|------------------------|
| STC | 35–43 (depending on configuration) |
| Rw | Up to 42 dB |
| Overall Glass Thickness | 10–24 mm |
| VLT | 80–90% (clear), up to 91% (Low-Iron) |
| Safety | Tempered + Laminated (EN 14449 / ANSI Z97.1) |
| Weight | Optimized for portable / flat-pack booths |
| Thermal Performance | Available with compact IGU / Low-E |
> *The acoustic performance of a phone booth is determined by the complete enclosure, not glass alone. Glass thickness, interlayer, frame design, door seals, ventilation cut-outs, and installation all affect the final result. In compact booths, the glass-to-volume ratio is high—so selecting the right glazing is especially critical.*
Section 7 — Specifications
**H2:** Phone Booth Glass Specifications
| Specification | Available Options |
|---------------|-------------------|
| Glass Type | Tempered Laminated / Compact IGU |
| Glass Thickness | 4–8 mm per lite (thin-build optimized) |
| Overall Thickness | 10–24 mm |
| Interlayer | Acoustic PVB (0.76 / 1.14 mm) |
| Cavity (IGU) | 9 / 12 mm, Argon-filled |
| Glass Color | Clear / Low-Iron / Custom Tint |
| Surface | Clear / Frosted / Silk Screen |
| Edge | Flat Polish / CNC Machined |
| CNC Processing | Hinge / lock / closer cut-outs; vent & fan openings |
| Maximum Size | Up to 2440 × 5000 mm (Jumbo line available) |
| Packaging | Export wooden crates, foam protection, private labeling |
Section 8 — Integration With Phone Booth
**H2:** Acoustic Glass Integration
The glazing system should be designed together with the frame, door, and sealing system to minimize acoustic leakage—especially important in a compact phone booth. Our acoustic glass is engineered to integrate with:
- **Aluminum Frame** — Standard slim-profile extrusion systems
- **Steel Frame** — Heavy-duty commercial enclosures
- **Frameless System** — Structural silicone glazing for a clean look
- **Compact Acoustic Door** — Matching door leaf with drop seals and hinge cut-outs
- **Magnetic & Compression Seals** — Perimeter gaskets at jambs, head, and threshold
- **Ventilation Openings** — Precision CNC fan / intake cut-outs designed to avoid acoustic leaks
- **EPDM / Acoustic Gaskets** — Compression seals at all glass-to-frame interfaces
- **Door Hardware** — Hinges, locks, closers (CNC cut-outs per template: Assa Abloy, Dormakaba, etc.)
*In a phone booth, the small door and its perimeter seals are the #1 source of acoustic leakage. We machine hinge, lock, and closer cut-outs to ±0.5 mm tolerance so the glass integrates flush with the sealing system.*
- Section 9 — Customization
**H2:** Custom Acoustic Glass for Phone Booth Manufacturers
We manufacture to your exact booth design. OEM options include:
- **Custom dimensions** — Cut to size, optimized for compact panels and small doors
- **Custom thickness** — Thin-build configurations to fit narrow wall cavities
- **Custom acoustic target** — Engineering support to hit your STC/Rw goal
- **Low-Iron glass** — Ultra-clear for premium brand aesthetics
- **Frosted glass** — Acid-etch or silk-screen for visual privacy at eye level
- **Silk-screen printing** — Logos, graphics, decorative bands
- **Logo printing** — Custom branding on glass
- **CNC vent cut-outs** — Fan and intake openings with acoustic labyrinth design
- **Door cut-outs** — Hinge, lock, closer, and handle precision machining
- **Hardware cut-outs** — Template-matched to your hardware supplier
- **Special shapes** — Radius corners, notches, irregular geometries
- **Lightweight optimization** — Glass builds engineered to meet booth weight budgets
- **Custom packaging** — Export-standard wooden crates, foam protection, private labeling
**CTA:** Send us your drawing or glass specification. Our engineering team can recommend a suitable acoustic glass configuration for your phone booth.
Section 10 — Glass Selection (Application 页独家模块)
**H2:** How to Select Acoustic Glass for a Phone Booth
| Your Requirement | Recommended Solution |
|------------------|----------------------|
| Entry-level call / focus booth | Acoustic Laminated Glass (5+5) |
| Standard office phone booth | Acoustic Laminated Glass (6+6) |
| Higher speech privacy | Thicker Acoustic Laminated Glass (8+8) |
| Slim wall + better STC | Compact Acoustic IGU (9–12 mm cavity) |
| Premium transparency / branding | Low-Iron Acoustic Glass |
| Acoustic + energy efficiency | Low-E Acoustic IGU |
| Executive / recording-grade booth | Acoustic Laminated Insulated Glass |
| Custom / OEM booth design | Custom Acoustic Glass |
**Need help selecting the right configuration?** Send us your booth drawings and target acoustic performance. We'll engineer the glass structure to your exact cavity, weight, and STC budget.
Section 11 — Manufacturing & Quality
**H2:** Manufactured for Global Phone Booth Brands
- **20+ Years** in tempered, laminated, and IGU glass manufacturing
- **Thin-Glass Expertise** — precision handling of 4–6 mm lites for compact booths
- **Dedicated Acoustic Line** — separate production for contamination control
- **Jumbo Capability** — panels up to 2440 × 5000 mm
- **Precision CNC** — ±0.5 mm tolerance for hinge, lock, vent, and closer cut-outs
- **In-House R&D** — acoustic calculation and STC modeling support
- **Quality Inspection** — 100% spark test, dimensional laser check
- **Export Packaging** — seaworthy crates, EVA protection, custom labeling
- **OEM Production** — serving 30+ countries, Incoterms, customs documentation
Section 12 — Testing & Compliance
**H2:** Acoustic Testing & Standards
- **Glass Acoustic Testing:** ASTM E90, EN ISO 10140 (lab transmission loss)
- **Safety Glass:** CE (EN 14449), UKCA, ANSI Z97.1, AS/NZS 2208
- **Factory Certification:** ISO 9001:2015 Quality Management System
- **Third-Party Verification:** SGS, Intertek (on request)
- **Booth System Reference:** Glass solutions engineered for phone booths evaluated under ISO 23351 (office booth acoustic performance) requirements
*"Glass tested according to applicable glass/acoustic standards (ASTM E90 / EN 14449); glass solutions engineered for phone booths evaluated under ISO 23351 requirements."*
## Final CTA
**H2:** Need Acoustic Glass for Your Phone Booth?
Send us your glass drawing, dimensions, or acoustic target. We can recommend a suitable glass structure and provide a project-specific quotation.
[Request a Quote] [Send Your Drawing] [Download Acoustic Glass Datasheet]
Section 13 — FAQ
**H2:** Frequently Asked Questions
1. **What type of glass is best for a phone booth?**
Acoustic laminated glass with PVB interlayer is the most common choice for compact booths, offering STC 35–41 in a thin, lightweight build. For higher performance, a compact acoustic IGU is recommended.
2. **What STC rating is recommended for a phone booth?**
For clear speech privacy in open offices, STC 38–43 is typical. The final booth rating also depends on door seals, frame, and ventilation design.
3. **Can acoustic laminated glass be tempered?**
Yes—all our acoustic laminated glass uses fully tempered lites for safety compliance (EN 12150 / ANSI Z97.1).
4. **Can you manufacture custom phone booth glass?**
Absolutely. We provide OEM manufacturing with custom dimensions, thin-build thickness, vent cut-outs, and acoustic targets.
5. **What thickness of glass is suitable for phone booths?**
Most compact booths use 10–12 mm (5+5 or 6+6) acoustic laminated. Premium builds range up to 24 mm overall with a compact IGU.
6. **Can you supply large glass panels for phone booths?**
Yes—our jumbo line handles up to 2440 × 5000 mm, suitable for full-height booth side panels.
7. **Can acoustic glass be combined with Low-E glass?**
Yes. Low-E coatings can be applied to the #2 or #3 surface of a compact IGU for thermal control without compromising acoustic performance.
8. **Can you make glass with CNC holes for booth hardware and ventilation?**
Yes. We provide precision CNC machining for hinges, locks, closers, handles, and fan/intake openings per your hardware template.
9. **How do you prevent sound leaks around the door?**
We machine door cut-outs to ±0.5 mm tolerance and engineer the glass to integrate flush with drop seals, compression gaskets, and magnetic seals at the perimeter.
10. **Can you provide acoustic test reports?**
Yes. We supply lab test reports (ASTM E90 / ISO 10140) for specific glass builds, plus calculation support for complete booth systems.
11. **Can you manufacture glass according to our drawings?**
Yes. Send us your drawing or spec sheet. Our engineering team will recommend the optimal glass structure and provide a project-specific quotation.
- 📩 Email: tomron1688@gmail.com
- [Request a Quote] [Download Datasheet]
🔗 Internal Link Cluster
Related Applications
Acoustic Glass for Office Pods | Office Pod Glass Manufacturer – AcouSpace
Phone Booth Glass | Acoustic Glass for Phone Booths – AcouSpace
Acoustic Glass for Meeting Pods | Meeting Pod Glass Manufacturer – AcouSpace
Acoustic Glass for Work Pods | Work Pod Glass Manufacturer – AcouSpace
Acoustic Glass for Office Privacy Booths | Privacy Booth Glass Manufacturer – AcouSpace
Acoustic Glass for Recording Booths | Recording Booth Glass Manufacturer – AcouSpace
Acoustic Glass for Podcast Booths | Podcast Booth Glass Manufacturer – AcouSpace
Related Product
- [Acoustic Laminated Glass](/acouspace/products/acoustic-glass/acoustic-laminated-glass/)
- [Acoustic Insulated Glass](/acouspace/products/acoustic-glass/acoustic-insulated-glass/)
- [Acoustic Laminated Insulated Glass](/acouspace/products/acoustic-glass/acoustic-laminated-insulated-glass/)
- [Low-E Acoustic Glass](/acouspace/products/acoustic-glass/low-e-acoustic-glass/)
- [Low-Iron Acoustic Glass](/acouspace/products/acoustic-glass/low-iron-acoustic-glass/)
- [Acoustic Glass Doors](/acouspace/products/acoustic-glass/acoustic-glass-doors/)
- [Acoustic Glass Panels](/acouspace/products/acoustic-glass/acoustic-glass-panels/)
- [Custom Acoustic Glass](/acouspace/products/acoustic-glass/custom-acoustic-glass/)
Related Technology supporting
- STC Rating & Rw Rating for Acoustic Glass | STC vs Rw Explained – AcouSpace
- Acoustic PVB Interlayer & Acoustic Laminated Glass Technology – How It Works
- Double Glazing for Acoustics – How IGU Works for Sound Insulation | JUMBO AcouSpace
-Acoustic Laminated Glass vs Double Glazing – Which Is Right for Your Project?
Acoustic Glass Performance – How to Read Acoustic Performance Data | JUMBO AcouSpace
- ISO 23351 for Acoustic Office Pods & Meeting Pods – ASTC, SNR & Classification | JUMBO AcouSpace
Acoustic Glass Testing – How Acoustic Glass Is Tested & How to Read Test Reports | JUMBO AcouSpace
