Custom Acoustic Glass

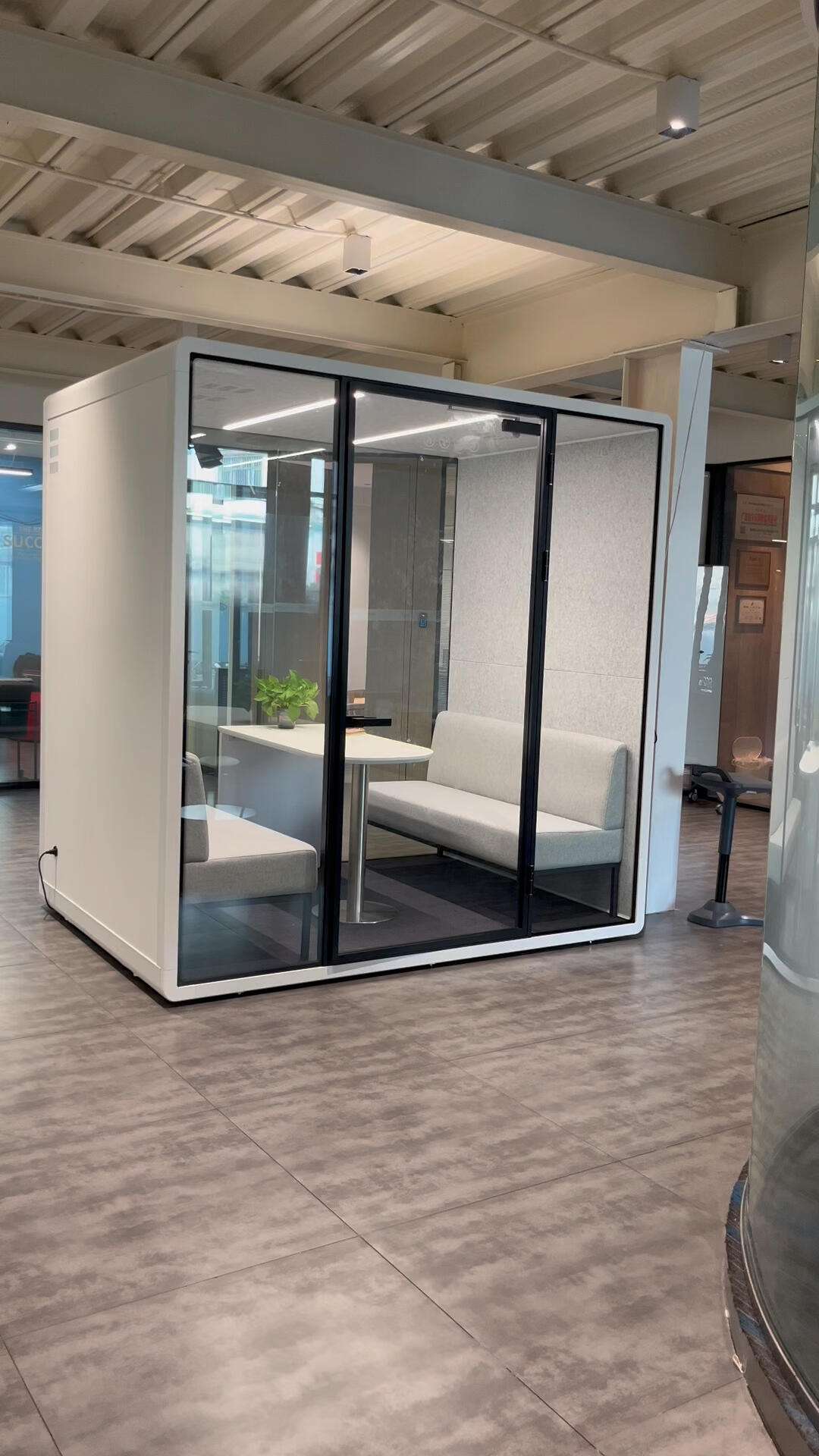

Engineered-to-Order Soundproof Glass for Office Pods, Doors, Partitions & Architectural Systems

Key Specs Badge: OEM & ODM ｜ STC 35–52 ｜ Jumbo Sizes ｜ CNC Precision ｜ Global Shipping

CTA Buttons: [Request a Quote] [Send Your Drawing]

02 – Product Definition (What Is It?)

H2: What Is Custom Acoustic Glass?

Custom Acoustic Glass refers to high-performance soundproof glass manufactured to your exact technical specifications, rather than a standard off-the-shelf product. It allows pod manufacturers, contractors, and architects to define every parameter—from glass thickness and interlayer type to cavity depth, coating, and CNC processing. This ensures the final glass component integrates perfectly with your frame system, hardware, and acoustic target, eliminating the compromise of standard sizes.

03 – Glass Structure

H2: Build Your Acoustic Structure

We manufacture custom acoustic glass using three primary technical pathways, which can be combined to hit your target STC:

Pathway A: Acoustic Laminated Glass (Damping)

[Tempered] + [Acoustic PVB/SGP] + [Tempered]
Ideal for doors, single-panel pods, and safety-critical areas.
Pathway B: Acoustic Insulated Glass (Mass + Cavity)

[Tempered] + [Argon Cavity] + [Tempered]
Ideal for wall panels and high-performance partitions.
Pathway C: Composite Acoustic Glass (Maximum Performance)

[Laminated] + [Argon Cavity] + [Tempered]
Ideal for executive pods and recording studios (STC 48–52).
Your Variables:

Glass Thickness: 5 mm – 19 mm per lite
Interlayer: Acoustic PVB (0.76–1.52 mm), SGP (structural)
Cavity: 9–20 mm, Air or Argon/Krypton
Coatings: Low-E (thermal), Low-Iron (optical)

04 – Available Configurations

H2: Common Custom Builds (Reference Only)

Your Target	Typical Build (Example)	Indicative STC*
Entry Pod / Booth	6 mm + 0.76 PVB + 6 mm	STC 35–38
Standard Office Pod	8 mm + 1.14 PVB + 8 mm	STC 40–43
Meeting Pod Wall	6 mm + 16Ar + 8 mm	STC 43–46
Executive / Recording	6+1.52PVB+6 + 16Ar + 8	STC 48–52
Your Custom Build	Define your specs below	Engineered to target *Performance depends on complete system assembly. We provide calculation support based on your drawing.

05 – Acoustic Performance

H2: Engineered Acoustic Performance

Target STC / Rw: 35 – 52 (engineered to your requirement)
Frequency Optimization: 500 Hz – 4000 Hz (speech band)
Calculation Support: We model performance based on your glass build-up
Testing: ASTM E90, ISO 10140 (lab testing available per project)
Data Output: Acoustic calculation reports provided with quotes

06 – Safety Performance

H2: Safety & Compliance

Impact Safety: Tempered (EN 12150 / ANSI Z97.1) or Heat-Strengthened
Post-Breakage: Laminated glass retains fragments (EN 14449)
Heat Soak Test: Optional (EN 14179-1) to minimize spontaneous breakage
Edge Safety: Polished edges for hardware integration
UV Protection: PVB interlayer blocks 99% UV

07 – Specifications

H2: Customization Specifications

Parameter	Custom Range
Glass Thickness	5 / 6 / 8 / 10 / 12 / 15 / 19 mm
Interlayer	Acoustic PVB 0.76 / 1.14 / 1.52 mm; SGP
Cavity Width	9 / 12 / 16 / 20 mm
Max Size	Up to 2440 × 5000 mm (Jumbo)
Processing	CNC cut-outs, hinge holes, lock boreholes, notches
Surface	Clear, Low-Iron, Tinted, Silk-Screen, Frosted
Coating	Low-E (single/double silver)
