01 Low-E Acoustic Glass
Subheading: Energy-Efficient Acoustic Glass with Integrated Low-E Coating — Sound Control Meets Thermal Performance for Premium Office Pods & Architectural Interiors
Key Specs Badge: STC 39–48 ｜ Low-E Coating ｜ Argon Optional ｜ U-value Project-Specific ｜ OEM & Custom Sizes
CTA Buttons: [Request a Quote] [Download Datasheet]
02 — Product Definition (What Is It?)
Low-E Acoustic Glass is a high-performance glazing product that combines sound-control glass construction with a Low-Emissivity (Low-E) coating to simultaneously address acoustic privacy and building thermal performance. It is typically built either as (a) an acoustic laminated glass lite with a Low-E coating applied to the exposed surface, or (b) an acoustic insulating glass unit (IGU) where one or more lites carry a Low-E coating and the cavity is argon-filled. The result is a single glazing specification that meets both speech-privacy (STC/Rw) and energy-efficiency targets (U-value, SHGC), reducing the need to choose between "quiet" and "efficient." It is the preferred specification for premium office pods, executive meeting pods, and high-end architectural partitions where both comfort metrics matter.
(~110 words, 30 秒可读完)
03 — Glass Structure
Typical Structure A — Low-E Acoustic Laminated Glass：
6 mm Tempered Glass (surface facing room)
↓
Low-E Coating (soft-coat, on designated surface)
↓
Acoustic PVB Interlayer (0.76 / 1.14 / 1.52 mm)
↓
6 mm Tempered Glass
Overall thickness: ~12 mm · Target: STC 41–44 + Low-E thermal performance
Typical Structure B — Low-E Acoustic Insulated Glass (IGU)：
6 mm Tempered Glass + Low-E Coating
↓
16 mm Argon Cavity (warm-edge spacer)
↓
6 / 8 mm Tempered Glass
Overall thickness: ~28–30 mm · Target: STC 43–48 + enhanced U-value
Structural Variables:
• Glass Substrate: 4 / 5 / 6 / 8 / 10 mm tempered; Low-Iron (ultra-clear) available
• Low-E Coating: Single silver / Double silver soft-coat (selective); Coating position designed according to IGU orientation
• Sandwich Options: Acoustic PVB (standard) / SGP (on request); Sandwich can be placed on the outer or inner sheet
• Cavity: 9 / 12 / 16 / 20 mm; Argon 90% optional
• Asymmetric Structure: Different sheet thicknesses (e.g., 6+8) to suppress coincidence effect
• For sandwich + hollow composite requirements → see the Acoustic Laminated Insulated Glass page
04 — Available Configurations
| Configuration | Build | Overall Thickness | Indicative STC* | Thermal Note | Typical Application |
|---|
| 6 Low-E + PVB + 6 | Laminated, coated | ~12 mm | STC 41–43 | Low-E on room-side surface | Premium office pod |
| 8 Low-E + PVB + 8 | Laminated, coated | ~16 mm | STC 43–45 | Improved U-value | Executive meeting pod |
| 6 Low-E + 16Ar + 6 | IGU, coated, argon | ~28 mm | STC 43–45 | Strong U-value | High-end partition |
| 6 Low-E + 16Ar + 8 | IGU, asymmetric | ~30 mm | STC 45–48 | Strong U-value | Recording / exec pod |
| Custom | Project-specific | Specified | Specified | Per climate zone | OEM systems
*Acoustic performance is indicative. Final STC depends on frame, gasket, seal and full pod/window assembly. U-value / SHGC / VLT are project-specific and quoted per glazing system and climate zone. Lab reports available on request. |
05 — Acoustic Performance
- STC: 39–48 (configuration dependent)
- Rw (EN ISO 717-1): up to 46 dB
- Frequency optimization: 500–4000 Hz speech band; asymmetric lites + cavity shift coincidence dip away from speech frequencies
- Test basis: ASTM E90 / E413, ISO 10140 series, EN 12758
- Datasheet includes 1/3-octave transmission loss curve on request
Low-E 涂层本身对 STC 贡献极小；本页声学性能来自 "acoustic glass structure + Low-E" 的组合，而非涂层单独隔音。
06 — Thermal & Safety Performance
Thermal properties:
- U-value: project-specific (typical IGU range 1.2–2.6 W/m²K with argon + Low-E; quoted per system)
- SHGC: project-specific (Low-E selective coating reduces solar heat gain)
- VLT: project-specific (clear ~78–89%; Low-Iron upgrade for premium transparency)
- Coating type: Soft-coat Low-E (high selectivity); surface position engineered per orientation
- Safety features:
- Tempered (EN 12150) or Heat-Strengthened; laminated option for fall-out safety (EN 14449)
- Post-breakage: glass fragments remain bonded to PVB interlayer
- Optional heat soak test (EN 14179-1) to minimize spontaneous breakage
- UV blocking: acoustic PVB blocks up to 99% UV; Low-E coating further reduces UV/heat transmission
07 — Specifications
| Parameter | Details |
|---|
| Glass type | Fully Tempered / Heat-Strengthened (optional) |
| Low-E coating | Single/dual silver soft-coat (selective) |
| Interlayer | Acoustic PVB (standard), SGP (on request) |
| Overall thickness | 12 mm (laminated) · 28–32 mm (IGU) |
| Max size | Up to 2440 mm × 5000 mm (jumbo) |
| Cavity (IGU) | 9–20 mm · Argon 90% optional |
| VLT | 78–89% (clear); Low-Iron available |
| Edgework | Polished / grinded / CNC machined |
| Processing | CNC cutting, holes, cut-outs, silk screen, frosted |
08 — Applications

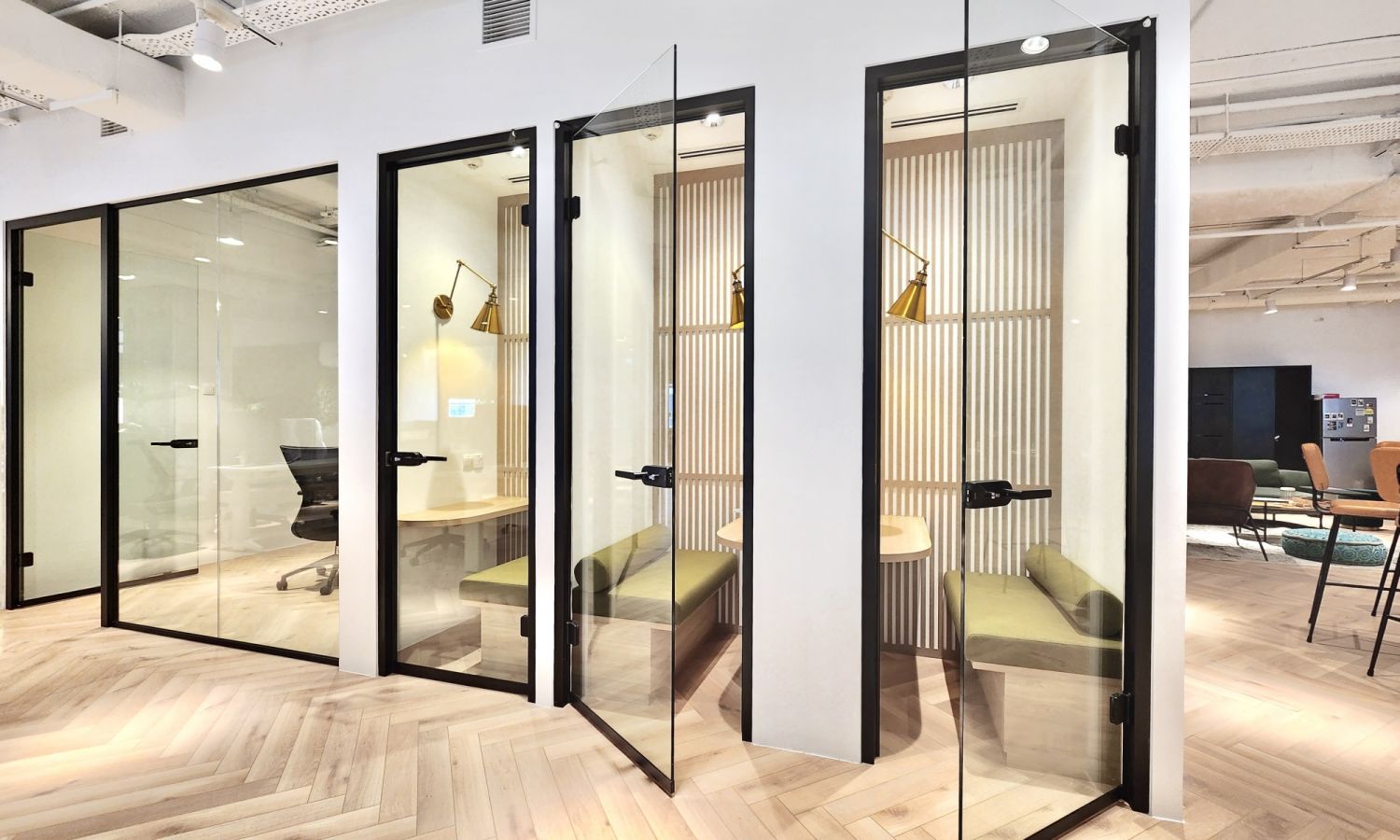

- Premium Office Pods — quiet + energy-efficient single-user focus pods (link → Applications / Office Pods)
- Executive Meeting Pods — high-spec conference spaces with thermal comfort requirements (link → Applications / Meeting Pods)
- High-End Architectural Partitions — glazed walls where both acoustics and building energy performance are specified
- Recording & Podcast Booths — when climate control and sound isolation are both critical (link → Applications / Recording Booths)
- Acoustic Rooms / Quiet Rooms — wellness and focus-oriented interiors
09 — Customization & OEM
- Custom glass build: lite thickness, PVB thickness, cavity width, gas fill, coating selection
- Climate-zone matching: we size U-value / SHGC / VLT to your project's climate zone and energy-code target (ASHRAE / EN 410 / local code)
- Low-Iron upgrade: for maximum visible light transmittance and premium appearance
- CNC processing: precision holes, cut-outs, notches for hardware integration
- Surface treatments: silk screen, frosted acid-etch, digital ceramic frit
- OEM packaging: export-standard crates, custom labeling, spec-sheet co-branding
- Acoustic target matching: engineer to a specific STC/Rw goal in combination with thermal targets
10 — Testing & Certifications
- Acoustic: ASTM E90, ISO 10140, EN 12758
- Safety glass: EN 12150, EN 14449, ANSI Z97.1, AS/NZS 2208
- Thermal / Coating: EN 410 (light & solar properties), EN 673 (U-value), EN 12898
- IGU: EN 1279 (1–4) sealed unit standard
- CE / UKCA · ISO 9001:2015 factory
- Third-party: SGS / Intertek on request
- Document package: test reports, declarations of performance, compliance certificates per shipment
11 — Manufacturing Capability
- 20+ years tempered, laminated and IGU export manufacturing (jumbotemperedglass.com mother line)
- Dedicated acoustic production line — separated from standard glass to prevent cross-contamination
- Low-E coating integration via qualified coating partners and in-house IGU sealing; coating surface position verified per build
- Jumbo glass capability — units up to 2440 × 5000 mm
- In-house acoustic + thermal R&D — we engineer to both STC and U-value targets
- Export experience — served 30+ countries; Incoterms, ocean-freight packaging and customs documentation handled
- Fast sampling — prototype glass ready in 7–10 days
12 — RFQ (Request for Quotation)
Ready to specify Low-E acoustic glass for your project?
Please provide:
- Glass build (e.g. 6 Low-E + 1.14 PVB + 6, or 6 Low-E + 16Ar + 8)
- Dimensions (W × H) and quantity
- Acoustic target (STC or Rw, if specified)
- Thermal targets (U-value / SHGC / VLT, or climate zone)
- Processing requirements (holes, edgework, surface treatment)
- Delivery destination & Incoterm
- 📩 Email your spec to: tomron1688@gmail.com
- [Request a Quote] [Download Datasheet]
