Acoustic Glass for Recording Booths
**Subheading:** Broadcast-Grade Acoustic Glazing for Recording Booths, Vocal Booths & Podcast Studios
**Key Specs Badge:** STC 47–55 ｜ Laminated + IGU Composite ｜ Asymmetric Build ｜ Low-Flank Leakage ｜ OEM
**CTA Buttons:** [Request a Quote] [Send Your Glass Specification]
## 02 – Application Definition
**H2:** What Is Recording Booth Acoustic Glass?

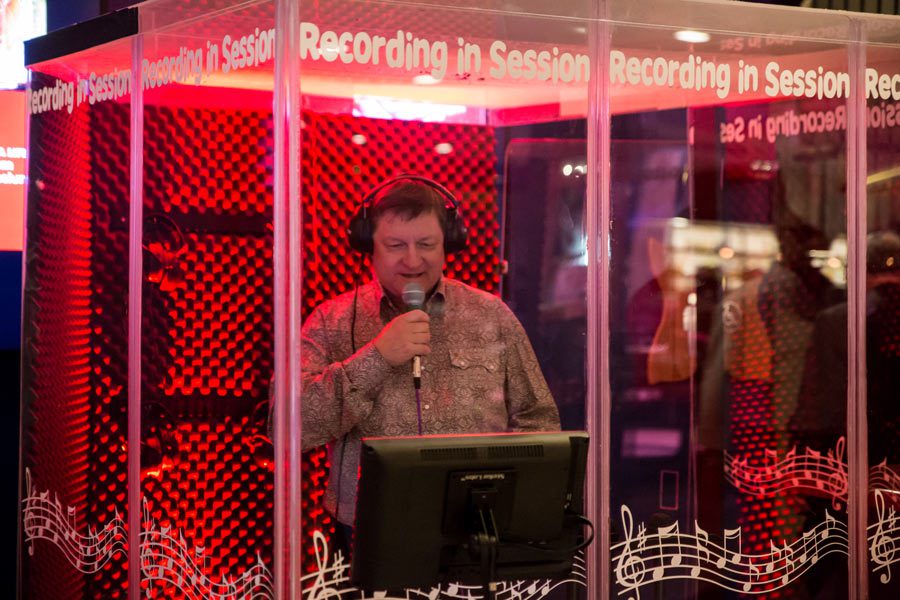

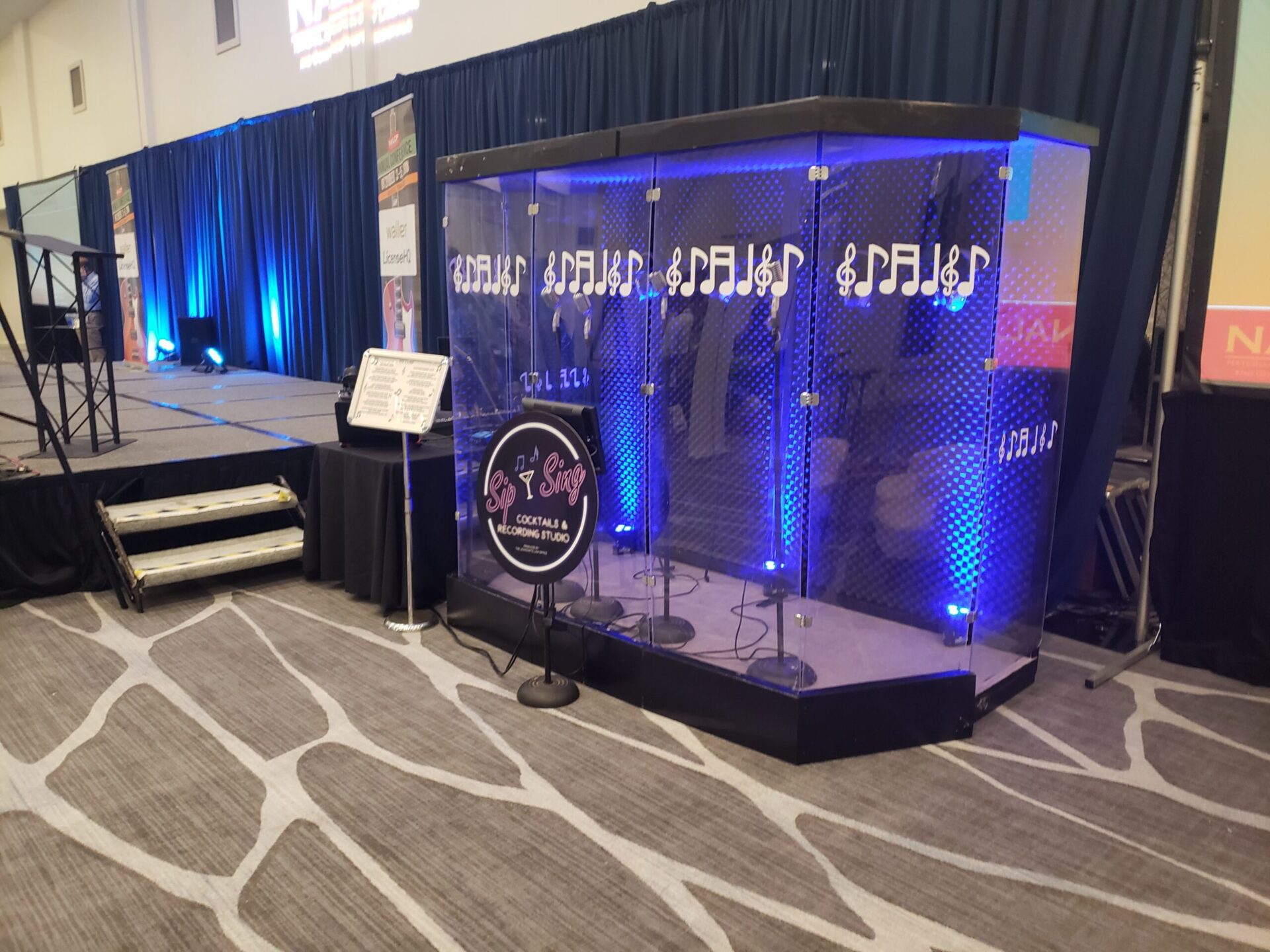

A Recording Booth is a small, fully sealed acoustic enclosure built for one purpose: **capture clean audio without outside noise, and keep the performance inside from bleeding out.** Whether it is a vocal booth, a voice-over booth, a podcast studio, or a telemedicine / court-reporting recording room, the requirement is fundamentally stricter than an office pod. Speech must be isolated across the **full vocal range (125 Hz – 8 kHz)**, not just the 500–4000 Hz speech band — which means the glazing must control both low-frequency rumble and high-frequency sibilance.
Recording Booth Acoustic Glass refers to the engineered, typically **composite laminated-insulated** glass panels and viewing windows that deliver this elevated isolation while remaining safety-rated, optically clear, and integrable with the booth's sealed framework. Unlike a standard office pod — where STC 40–45 is acceptable — a recording booth commonly targets **STC 47–55 glass**, because the microphone hears what the human ear forgives.
## 03 – Acoustic & Design Requirements
**H2:** Why Recording Booths Demand the Highest Glass Performance
| Requirement | Why It Matters in Recording Booths |
|-------------|-----------------------------------|
| **Full-band isolation (125 Hz – 8 kHz)** | Vocal booth must kill HVAC rumble, traffic, and room reflections — not just office chatter |
| **Low-frequency control** | Asymmetric pane thickness + mass law defeats the coincidence dip at bass frequencies |
| **Zero flanking** | Window frame, perimeter seal, and cable passthrough are the #1 leak paths |
| **Viewing window** | Engineers need visual contact with the performer — large window, zero acoustic penalty |
| **Interior acoustic treatment compatibility** | Glass must sit flush with foam/bass-trap treatment, no recesses to trap reflections |
| **Safety + durability** | Tempered-laminated, post-breakage retention, suitable for repeated hardware mounting |
| **Compact footprint** | Booths are small (~1.5–2.5 m²); thick glass must still fit the wall cavity |
> **Key insight:** In a recording booth, the **viewing window is the weak point** — it is the one hard, reflective, potentially thin surface in an otherwise fully treated room. Getting the window build right is 50 % of the acoustic battle. This is where our composite glass wins.
## 04 – Recommended Glass Solutions (Glass Selection Module)
**H2:** Recommended Acoustic Glass for Recording Booths
| Glass Solution | Typical Structure | Indicative STC* | Recording Booth Use |
|---------------|-------------------|-----------------|---------------------|
| Acoustic Laminated Glass | 8T + 1.52 PVB + 8T | STC 43–45 | Entry-level voice-over, treatment-heavy booth |
| Acoustic Insulated Glass | 8T + 16Ar + 10T (asymmetric) | STC 45–48 | Mid-tier vocal booth, home studio |
| **Acoustic Laminated Insulated (standard)** | 6T+1.52PVB+6T + 16Ar + 10T | **STC 49–52** | **Professional recording / podcast booth — most common** |
| High-End Composite | 8T+1.52PVB+8T + 20Ar + 12T (asymmetric, SGP optional) | STC 52–55 | Broadcast / ADR / critical listening room |
| Custom System | Project-specific, triple-glazed option | Specified | OEM high-end studios |
*\*Indicative glass-only rating. Final booth performance depends on frame, seals, wall treatment, and ventilation path. Tested per ASTM E90 / ISO 10140 (glass) and evaluated under ISO 23351-1 (complete booth).*
**Downstream anchors → Product pages:**
- [Acoustic Laminated Glass](/acouspace/products/acoustic-glass/acoustic-laminated-glass/)
- [Acoustic Insulated Glass](/acouspace/products/acoustic-glass/acoustic-insulated-glass/)
- [Acoustic Laminated Insulated Glass](/acouspace/products/acoustic-glass/acoustic-laminated-insulated-glass/) *(the recording-booth workhorse)*
- [Low-Iron Acoustic Glass](/acouspace/products/acoustic-glass/low-iron-acoustic-glass/) *(broadcast-clear viewing window)*
- [Custom Acoustic Glass](/acouspace/products/acoustic-glass/custom-acoustic-glass/)
## 05 – Glass Structure Diagram
**H2:** Typical Glass Build-Ups for Recording Booths
**Professional Standard (Most Common):**
```text
6 mm Tempered Glass
↓
1.52 mm Acoustic PVB Interlayer
↓
6 mm Tempered Glass
↓
16 mm Argon Cavity (warm-edge spacer)
↓
10 mm Tempered Glass (asymmetric)
→ STC 49–52, ~40 mm overall, full vocal-band control
```
**Broadcast / Critical Listening (High-End):**
```text
8 mm Tempered Glass
↓
1.52 mm Acoustic PVB (or SGP)
↓
8 mm Tempered Glass
↓
20 mm Argon Cavity
↓
12 mm Tempered Glass (asymmetric)
→ STC 52–55, ~50 mm overall, low-frequency optimized
```
**Viewing Window Design Principle:**
- **Angled / splayed glass** (5–10°) to break standing waves and avoid flutter echo between booth walls
- **Flush-mount** with interior acoustic treatment — no reveals or recesses
- **Double-sealed perimeter** — structural silicone + EPDM compression gasket
- **Asymmetric panes** — different thicknesses on each side shift the coincidence frequency below/above the vocal range
## 06 – Acoustic Performance & Testing
**H2:** Acoustic Performance
- **Glass-only STC:** 47–55 (by configuration)
- **Rw (EN ISO 717-1):** up to 53 dB
- **Frequency range:** Engineered for **125 Hz – 8 kHz** (full vocal / instrumental range), not just 500–4000 Hz
- **Coincidence control:** Asymmetric lite thicknesses (6/10 or 8/12) push the coincidence dip away from the vocal band
- **Damping layer:** Acoustic PVB/SGP adds viscoelastic damping, critical for mid-high frequency absorption
- **Mass law:** Total glass mass ~30–50 kg/m² — heavy is quiet
- **Test standards:** ASTM E90 / E413, EN ISO 10140 (glass transmission loss); ISO 23351-1 (complete booth speech/audio level reduction)
- **Complete-system reference:** Glass solutions engineered for recording booths are evaluated under **ISO 23351-1** — accurately stated as a *booth system* standard, **not** a "glass certificate"
> **Performance promise:** We do not sell "probably quiet enough." We model the full build-up against your target curve and supply the calculation note with every quotation.
## 07 – Specifications
**H2:** Recording Booth Glass Specifications
| Parameter | Available Options |
|-----------|------------------|
| Glass Type | Acoustic Laminated / IGU / Laminated-Insulated Composite / Triple-glazed |
| Pane Thickness | 5 / 6 / 8 / 10 / 12 mm per lite |
| Overall Thickness | 24 mm – 55 mm (composite) |
| Interlayer | Acoustic PVB 1.14 / 1.52 mm, SGP (structural, optional) |
| Cavity | 12 / 16 / 20 mm, Argon 90%, warm-edge spacer |
| Build Options | Double-glazed asymmetric / Triple-glazed |
| Max Panel Size | Up to 2440 × 5000 mm (Jumbo line) |
| Typical Window Size | 600×900 mm – 1200×1500 mm (flush viewing window) |
| VLT | 80–90% clear, ~91% Low-Iron (studio-clear) |
| Surface | Clear / Low-Iron / Optional anti-reflective (AR) coating |
| Edgework | Polished, CNC-machined, finger-pull / hinge / latch cut-outs |
| Compliance | EN 12150, EN 14449, ANSI Z97.1, CE, UKCA |
## 08 – Integration With Recording Booth System
**H2:** Acoustic Glass Integration for Recording Booths
The window performs only as well as its seal. Our glass is engineered to integrate with:
- **Sealed aluminum/steel window frame** — dual EPDM gasket + structural silicone, no screw penetrations through the acoustic barrier
- **Flush interior mounting** — glass face aligns with acoustic foam/bass-trap layer; optional fabric-wrapped reveal
- **Angled/splayed window frame** — 5–10° splay available to break internal reflections (flutter echo control)
- **Cable & vent passthrough** — engineered acoustic labyrinth + removable plug for XLR/mic cables and silent air exchange
- **Door system** — matched laminated acoustic door leaf with drop seal + jamb/head gaskets (see [Acoustic Glass Doors](/acouspace/products/acoustic-glass/acoustic-glass-doors/))
- **Wall system** — compatible with [Acoustic Glass Panels](/acouspace/products/acoustic-glass/acoustic-glass-panels/) for full booth enclosure
- **Hardware cut-outs** — hinges, latches, window latch, microphone boom arm mounts per your DWG/DXF (±0.5 mm)
## 09 – Customization for Recording Booth OEMs
**H2:** Custom Acoustic Glass for Recording Booth Manufacturers
- **Build-to-target curve** — send your required TL (Transmission Loss) curve or STC/Rw goal; we reverse-engineer the glass build-up
- **Triple-glazed option** — for ultra-critical broadcast / ADR rooms pushing STC 55+
- **Asymmetric engineering** — pane thicknesses calculated to move coincidence dip outside the vocal band
- **Broadcast optics** — Low-Iron + anti-reflective (AR) coating for true color, no glare under studio lighting
- **Flush-mount framing** — custom profile to sit perfectly with your interior acoustic treatment
- **Splayed / angled window** — fixed splay angle to control internal reflections
- **Service passthroughs** — XLR, power, network, ventilation acoustic labyrinth cut-outs with sealing plugs
- **Private label** — crate labeling, spec-sheet co-branding, HS code support
- **Prototype lead time** — 10–14 days for sample window + test report
## 10 – Manufacturing & Quality
**H2:** Manufactured for Global Recording & Broadcast Brands
- **20+ years** tempered / laminated / IGU export manufacturing (JUMBO Glass Group)
- **Dedicated acoustic line** — separate PVB laminating room, humidity-controlled IGU chamber (argon concentration verified)
- **Jumbo tempering** — up to 2440 × 5000 mm, flatness ≤ 0.3%
- **Precision CNC** — window-frame cut-outs, hinge/latch/cable holes tolerance **±0.5 mm**
- **In-house acoustic R&D** — STC / TL curve calculation and modeling support
- **QC per batch** — 100% spark test, dimensional laser scan, sample transmission-loss audit
- **Export crating** — fumigated wood, EVA edge guard, vertical dividers, shock label; window faces protected
- **OEM experience** — serving recording-booth, broadcast, and pro-audio brands across EU, UK, US, AU, UAE
- **Lead time** — samples 10–14 days; bulk 25–35 days FOB
## 11 – Testing & Compliance
**H2:** Testing & Standards
- **Glass acoustic:** ASTM E90, EN ISO 10140-1/2 (transmission loss / TL curve)
- **Safety glass:** EN 12150 (tempered), EN 14449 (laminated), ANSI Z97.1, AS/NZS 2208
- **IGU durability:** EN 1279-1~4 (sealed unit)
- **Coated / AR (if applicable):** EN 1096-4, ASTM C1376
- **Factory:** ISO 9001:2015; CCC for China market
- **Third-party:** SGS / Intertek on request
- **Booth-level reference:** Glass solutions evaluated under **ISO 23351-1** (audio/speech level reduction, Class A–D) — stated accurately as a *complete booth* standard, not a glass certification
## 12 – FAQ
**H2:** Frequently Asked Questions
1. **What STC should a recording booth window have?**
For a vocal/podcast booth, target **STC 47–52** glass; professional broadcast/ADR reaches **STC 52–55** with composite or triple-glazed builds.
2. **Is laminated glass alone enough?**
8+1.52PVB+8 (STC ~43–45) is entry-level. For true studio isolation, pair laminated + IGU (composite) to engage both damping and mass-air-mass principles.
3. **Why asymmetric panes?**
Different thicknesses (e.g., 6 mm + 10 mm) shift the coincidence frequency away from the vocal range, preventing a sudden mid-band transmission spike.
4. **Can the window be flush with acoustic foam?**
Yes — we design flush-mount framing so the glass face aligns with your interior treatment, avoiding reflective reveals.
5. **Do you offer angled/splayed windows?**
Yes — a 5–10° splay breaks standing waves and flutter echo between parallel booth surfaces.
6. **Can you machine holes for XLR / cable passthrough?**
Yes — CNC cable/vent labyrinth cut-outs with removable acoustic plugs, ±0.5 mm to your DXF.
7. **Can the window be Low-Iron and anti-reflective?**
Yes — Low-Iron + optional AR coating reaches ~91% VLT with near-zero glare, ideal for on-camera studio use.
8. **Can glass-only STC be guaranteed for the whole booth?**
No — only glass STC is certifiable per ASTM E90. Complete-booth performance (ISO 23351) depends on your full assembly; we provide the calculation note and support.
9. **What is the typical window size?**
600×900 mm to 1200×1500 mm is standard for recording booths; custom sizes available up to jumbo.
10. **Lead time and packaging?**
Samples 10–14 days; bulk 25–35 days FOB. Windows crated with EVA edge guards, vertical dividers, and clearly labeled assembly drawings.
### Final CTA
**H2:** Need Acoustic Glass for Your Recording Booth?
Send us your target TL curve, STC/Rw goal, or booth drawing. Our engineering team recommends the optimal composite build-up and quotes per project.
[Request a Quote] [Send Your Drawing] [Download Acoustic Glass Datasheet]
