H1: Acoustic Laminated Glass
Subheading: High-Performance Acoustic Laminated Safety Glass for Office Pods & Soundproof Booths
Key Specs Badge: STC 39–45 ｜ Tempered ｜ Acoustic PVB ｜ OEM ｜ Custom Sizes
CTA Buttons: [Request a Quote] [Download Datasheet]
H2: What Is Acoustic Laminated Glass?
Acoustic Laminated Glass is a high-performance safety glass engineered by bonding two or more layers of tempered glass with a specialized acoustic PVB (Polyvinyl Butyral) interlayer. This structure is designed to absorb and dampen sound vibrations, delivering exceptional noise reduction for commercial and architectural applications. Unlike standard laminated glass, our acoustic variant uses a viscoelastic interlayer that targets the frequency range of human speech and office noise, making it the preferred choice for office pods, phone booths, and meeting rooms.
H2: Glass Structure & Composition
6 mm Tempered Glass
↓
Acoustic PVB Interlayer (0.76 mm / 1.14 mm / 1.52 mm)
↓
6 mm Tempered Glass
Key Structural Elements:
- Glass Thickness: 5 mm, 6 mm, 8 mm, 10 mm (per layer)
- Interlayer Type: Acoustic PVB (standard) / SGP (on request)
- Interlayer Thickness: 0.76 mm, 1.14 mm, 1.52 mm
- Overall Thickness: ~10 mm to ~22 mm
- Safety Construction: Fully tempered, heat-soaked optional, meets EN 14449 / ANSI Z97.1
04 – Available Configurations
| Configuration | Overall Thickness | Typical Acoustic Target (Indicative*) | Typical Application |
|---|
| 5 + Acoustic PVB + 5 | ~10 mm | STC 39–40 | Phone Booth |
| 6 + Acoustic PVB + 6 | ~12 mm | STC 41–43 | Office Pod |
| 8 + Acoustic PVB + 8 | ~16 mm | STC 43–45 | Meeting Pod |
| 10 + Acoustic PVB + 10 | ~20 mm | STC 45–47 | High-End Acoustic Room |
| Custom | Project-specific | Project-specific | OEM / Special Projects
*Acoustic performance is indicative and depends on complete system design, including frame, sealing, and installation. Test reports available upon request. |
05 – Acoustic Performance
H2: Acoustic Performance
- Sound Transmission Class (STC): 39 – 45 (depending on configuration)
- Weighted Sound Reduction Index (Rw): Up to 44 dB
- Frequency Range: Optimized for 500 Hz – 4000 Hz (speech frequencies)
- Test Standards: ASTM E90, EN ISO 10140, ISO 717-1
- Performance Data: Available in downloadable datasheet (includes lab-tested reports for specific builds)
06 – Safety Performance
H2: Safety & Impact Performance
- Impact Safety: Classified as Class A / Class B (EN 12600), ANSI Z97.1 Category II
- Post-Breakage Behavior: Glass fragments remain bonded to the PVB interlayer, preventing shattering and fall-out
- Tempered Glass: Heat-treated for 4–5x strength vs. annealed glass
- Optional Heat Soak Test: According to EN 14179-1 to minimize spontaneous breakage
- UV Blocking: Acoustic PVB blocks up to 99% of harmful UV radiation
07 – Specifications
H2: Technical Specifications
| Parameter | Details |
|---|
| Glass Type | Fully Tempered / Heat-Strengthened (optional) |
| Interlayer | Acoustic PVB (standard), SGP (on request) |
| Overall Thickness | 10 mm – 22 mm |
| Max Size | Up to 2440 mm × 5000 mm (jumbo size available) |
| Visible Light Transmittance (VLT) | 80% – 90% (clear), custom with Low-Iron |
| Edgework | Polished / Grinded / CNC machined |
| Processing | CNC cutting, waterjet, holes, cut-outs, silk screen, frosted |
08 – Applications
H2: Typical Applications

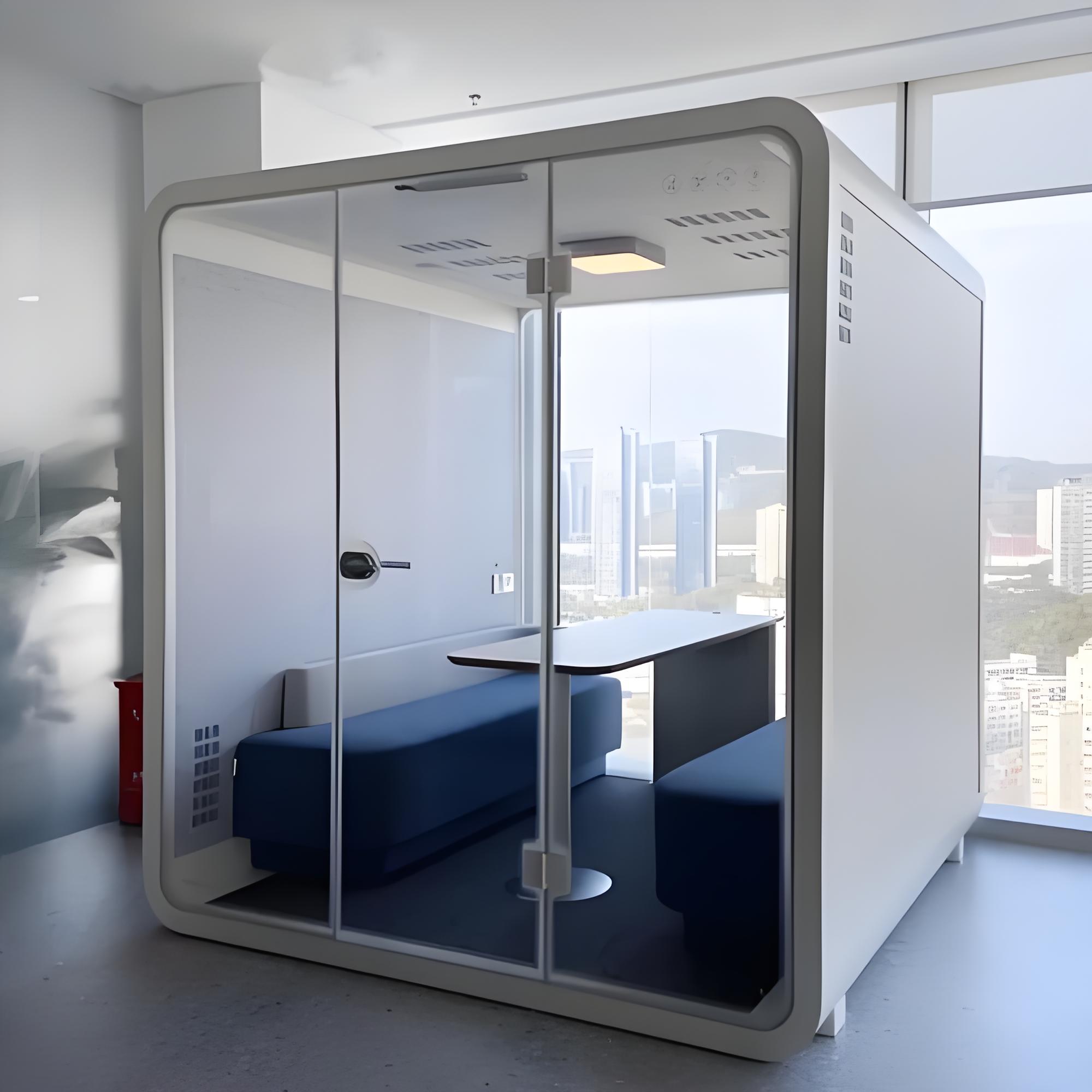

- Office Pods – Single-user focus pods requiring STC 40+ privacy

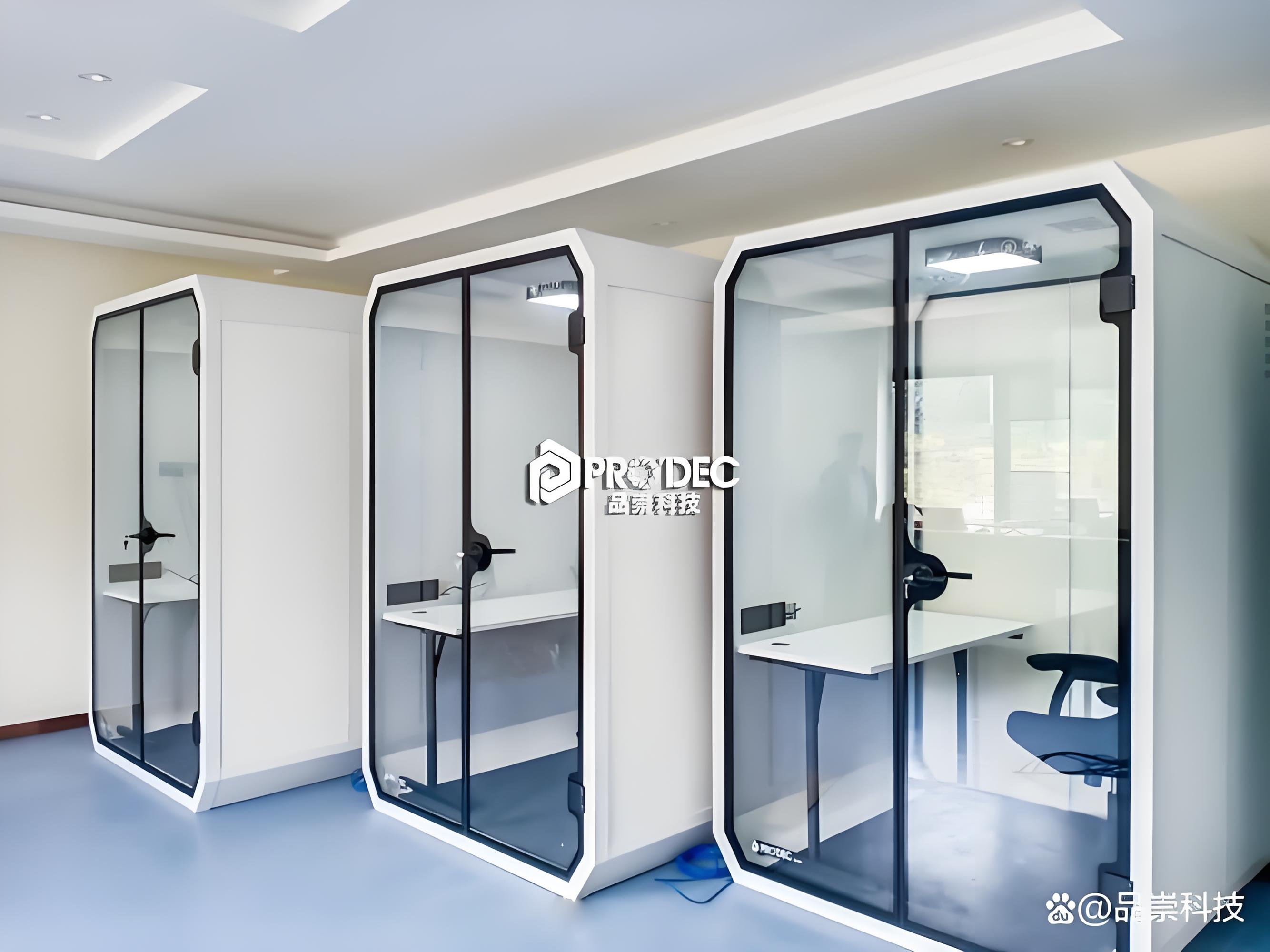

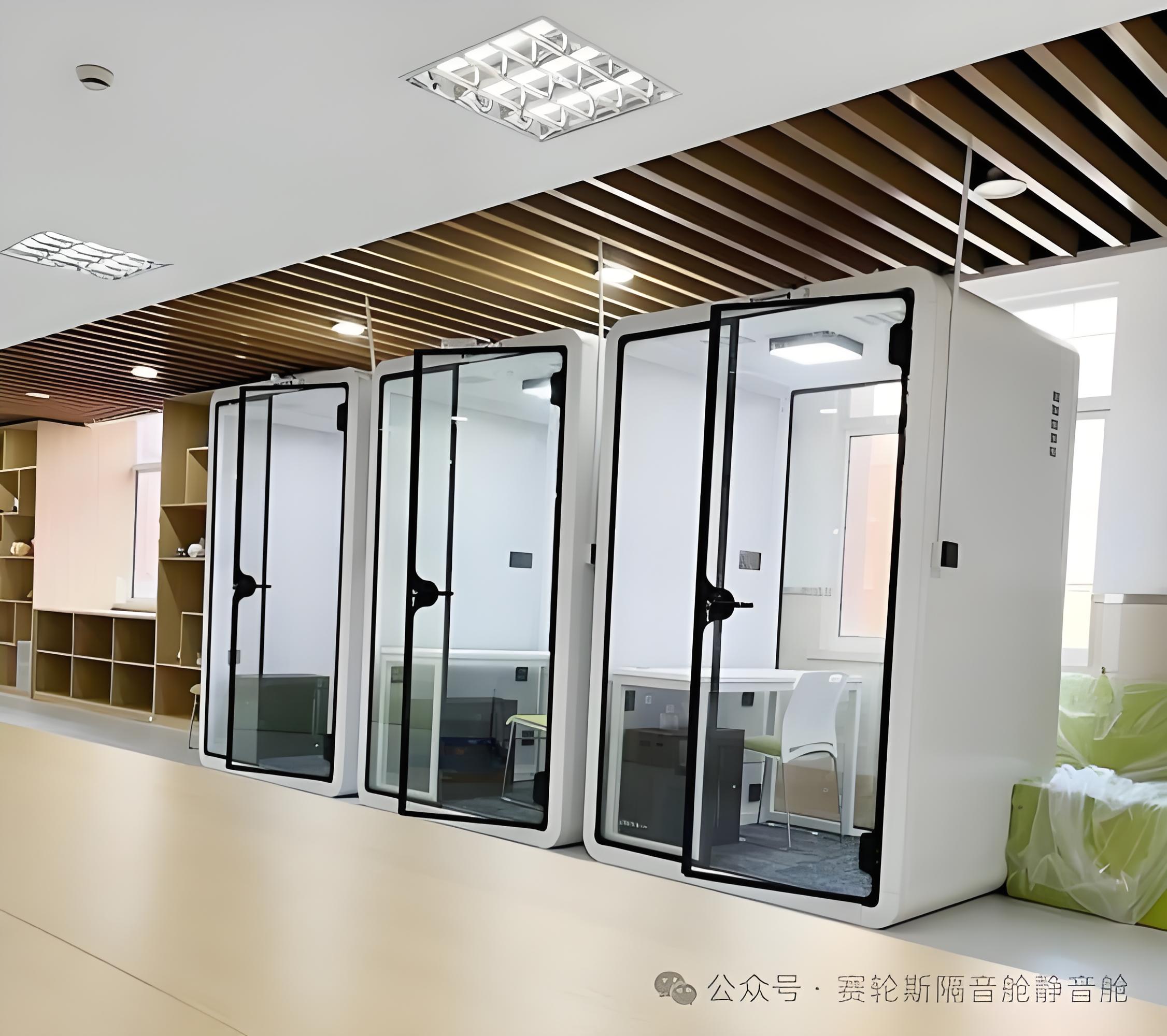

- Phone Booths – Compact acoustic cabins for private calls
- Meeting Pods – Small to medium conference spaces with high speech intelligibility requirements
- Recording Booths – Voice-over and podcast studios (link to Applications → Recording Booths)
- Acoustic Partitions – Interior glazed walls in open-plan offices
09 – Customization
H2: Customization & OEM Options
We manufacture to your exact specification. Our acoustic laminated glass supports:
- Custom Thickness: Tailored glass + interlayer combinations
- Custom Dimensions: Cut to size, including oversized jumbo panels
- CNC Processing: Precision holes, cut-outs, notches for hardware integration
- Surface Treatments: Silk screen printing, frosted acid-etch, digital ceramic frit
- Glass Options: Low-Iron (ultra-clear), tinted, reflective
- OEM Packaging: Export-standard wooden crates with foam protection, custom labeling
- Acoustic Target Matching: We work with your engineering team to hit a specific STC/Rw goal
10 – Testing & Certifications
H2: Testing & Certifications
- Acoustic Testing: ASTM E90, EN ISO 10140 series
- Safety Glass: CE Marking (EN 14449), UKCA, ANSI Z97.1, AS/NZS 2208
- Factory Certification: ISO 9001:2015 Quality Management System
- Third-Party Verification: SGS, Intertek, or equivalent (on request)
- Document Package: Test reports, declarations of performance, and compliance certificates provided with every shipment
11 – Manufacturing Capability
H2: Why Source From Us?
- 20+ Years in tempered and laminated glass manufacturing
- Dedicated Acoustic Production Line – separate from standard glass to avoid cross-contamination
- Jumbo Glass Capability – maximum 2440 × 5000 mm
- In-House Acoustic R&D – we don't just trade; we engineer
- Export Experience – served 30+ countries, familiar with Incoterms, ocean freight packaging, and customs documentation
- Fast Sampling – prototype glass ready in 7–10 days
12 – RFQ (Request for Quotation)
H2: Send Your Glass Specification
Ready to get pricing for your acoustic laminated glass project?
Please provide:
- Glass structure (e.g., 6 mm + 1.14 mm PVB + 6 mm)
- Dimensions (W × H, quantity)
- Acoustic target (STC or Rw if specified)
- Processing requirements (holes, edgework, surface treatment)
- Delivery destination & Incoterm
- 📩 Email your spec to: [tomron1688@gmail.com]
- [Request a Quote Button] [Download Datasheet Button]
