01 Acoustic Laminated Insulated Glass
Subheading: High-Performance Laminated Insulating Glass Unit (IGU) for Premium Office Pods, Executive Meeting Pods & Recording Spaces
Key Specs Badge: STC 47–52 ｜ Acoustic PVB + Argon Cavity ｜ Asymmetric Build-Up ｜ CE / ASTM ｜ OEM
CTA Buttons: [Request a Quote] [Download IGU Datasheet]
02 – Product Definition (What Is It?)
Acoustic Laminated Insulated Glass is a sealed insulating glass unit (IGU) in which at least one glazing lite is an acoustic laminated glass (tempered glass + acoustic PVB interlayer). The laminated lite provides viscoelastic sound damping—especially in the speech frequency band—while the argon-filled cavity and asymmetric pane construction add mass-air-mass isolation. The result is a single, high-performance acoustic glass unit that outperforms either a standalone laminate or a standard IGU on airborne sound control. It is the technical answer when a project specification calls for both acoustic privacy and thermal / condensation control in one glazed panel.
03 – Glass Structure
Representative build-up (typical premium pod wall):
6 mm Tempered Glass
↓
Acoustic PVB Interlayer (1.14 / 1.52 mm)
↓
6 mm Tempered Glass ← laminated lite
↓
16 mm Argon Cavity (warm-edge spacer + desiccant)
↓
8 mm Tempered Glass ← asymmetric monolithic lite
Alternative high-performance build-up:
6T + Acoustic PVB + 6T
↓
20Ar (Krypton optional)
↓
10T
Structural variables:
- Laminated lite: glass 5/6/8/10 mm + acoustic PVB 0.76/1.14/1.52 mm (+ SGP on request)
- Cavity: 12 / 16 / 20 mm; argon 90% standard, krypton on request
- Second lite: 6 / 8 / 10 mm tempered (asymmetric to defeat coincidence)
- Pane count: double-glazed IGU (standard); triple-glazed on project request
- Optional upgrades: Low-E coating on cavity face, Low-Iron glass, tinted, reflective
A CAD cross-section line drawing of the build-up is recommended here to visually separate this product from both the Laminated and Insulated standalone pages.
04 – Available Configurations
| Configuration (Laminated Lite + Cavity + Lite) | Overall Thickness | Indicative STC* | Typical Application |
|---|
| (5+PVB+5) + 12Air + 6 | ~24 mm | STC 45–47 | Premium phone booth |
| (6+PVB+6) + 16Ar + 8 | ~32 mm | STC 47–49 | Office pod wall |
| (6+PVB+6) + 16Ar + 10 | ~34 mm | STC 48–50 | Executive meeting pod |
| (8+PVB+8) + 20Ar + 10 | ~38 mm | STC 50–52 | Recording / podcast booth |
| (6+PVB+6) + 16Ar + 8 + Low-E | ~32 mm | STC 48 / U-low | High-end architectural partition |
| Custom | Project-specific | Specified | OEM / acoustic room systems
*Indicative only. Final acoustic performance depends on frame, gasket, sealing, and complete pod / room assembly. Lab-tested reports available per build-up. |
05 – Acoustic Performance
- STC: 47–52 (configuration dependent)
- Rw (EN ISO 717-1): up to 50 dB
- Performance advantage: The laminated lite damps vibration at the source (speech frequencies 500–4000 Hz) while the cavity + asymmetric lites add mass-air-mass isolation—delivering higher STC than either a plain laminate or a standard IGU of similar overall thickness.
- Coincidence control: Asymmetric construction shifts the coincidence dip away from the critical speech band.
- Test basis: ASTM E90 / E413, ISO 10140 series, EN 12758
- Documentation: 1/3-octave transmission loss curve and build-specific test report available in downloadable datasheet.
06 – Safety & Thermal Performance
Safety:
- Laminated lite retains fragments on breakage (EN 14449 / ANSI Z97.1)
- Tempered lites: 4–5× strength of annealed glass (EN 12150)
- Optional heat soak test (EN 14179-1) to minimize spontaneous breakage
- Acoustic PVB blocks up to 99% UV
- Thermal:
- U-value: 1.1–2.4 W/m²K (argon-filled, depending on coating and cavity)
- Optional Low-E coating for solar control and reduced HVAC load
- Suitable for climate-controlled office pods, meeting rooms, and interior acoustic partitions
07 – Specifications
| Parameter | Range / Details |
|---|
| Glass thickness per lite | 5 / 6 / 8 / 10 mm |
| Interlayer | Acoustic PVB (0.76 / 1.14 / 1.52 mm), SGP on request |
| Cavity width | 12 / 16 / 20 mm |
| Gas fill | Argon 90% standard / Krypton optional |
| Spacer | Aluminum / Warm-edge TPS |
| Max unit size | Up to 2440 × 5000 mm (jumbo IGU) |
| VLT | 78–89% (clear); Low-Iron available |
| Processing | CNC cutting, holes, cut-outs, silk screen, frosted, edge polish |
08 – Applications

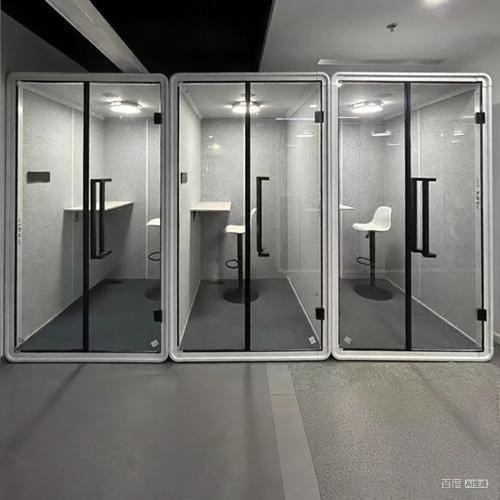

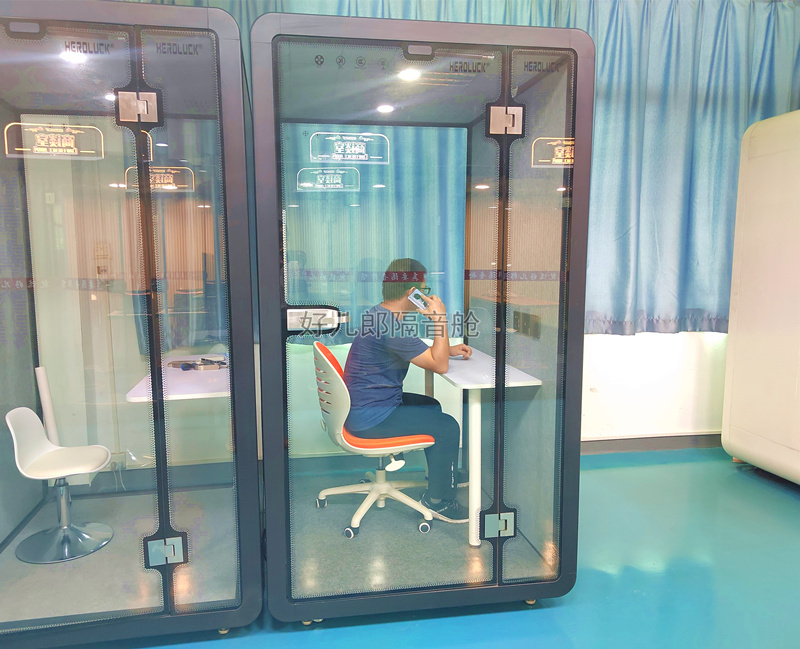

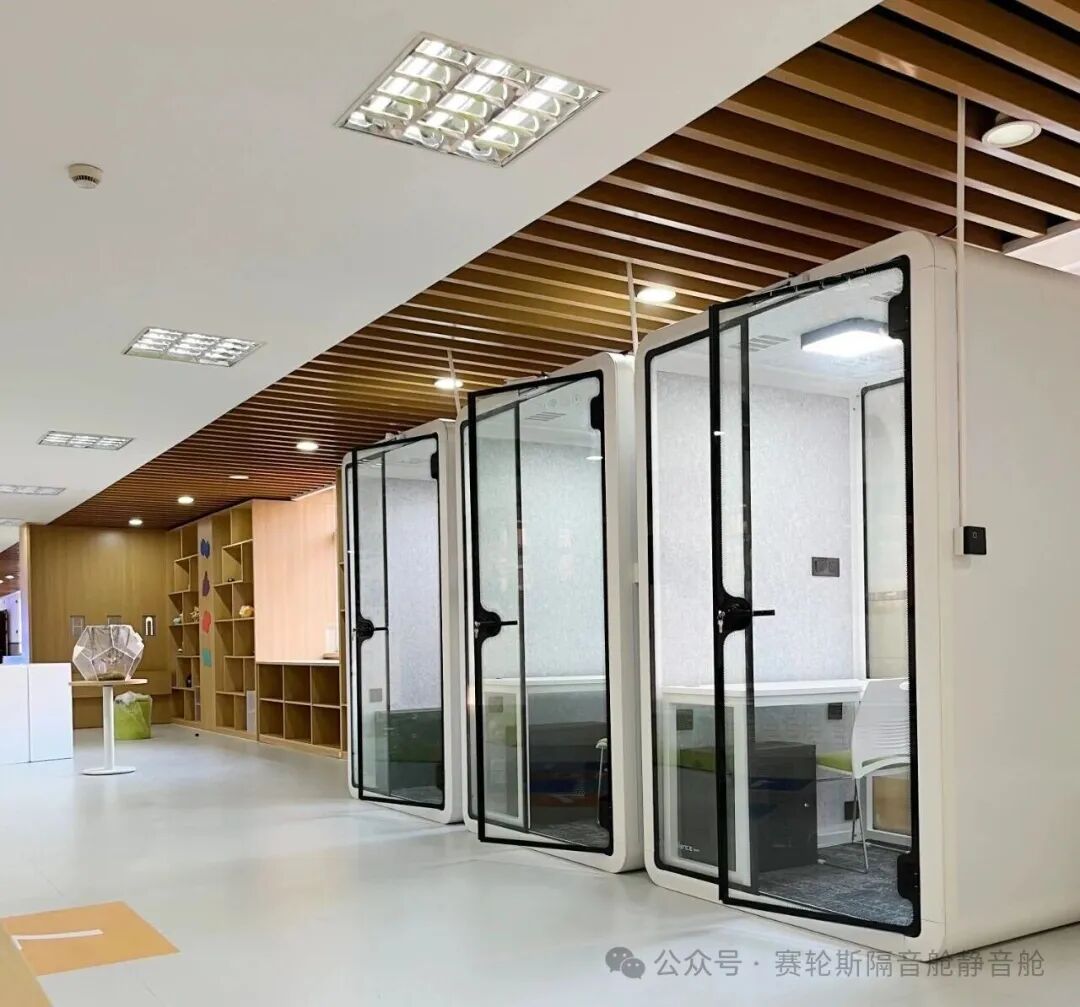

- Premium Office Pods – high-spec single-user pods requiring STC 47+ speech privacy (link → Applications / Office Pods)

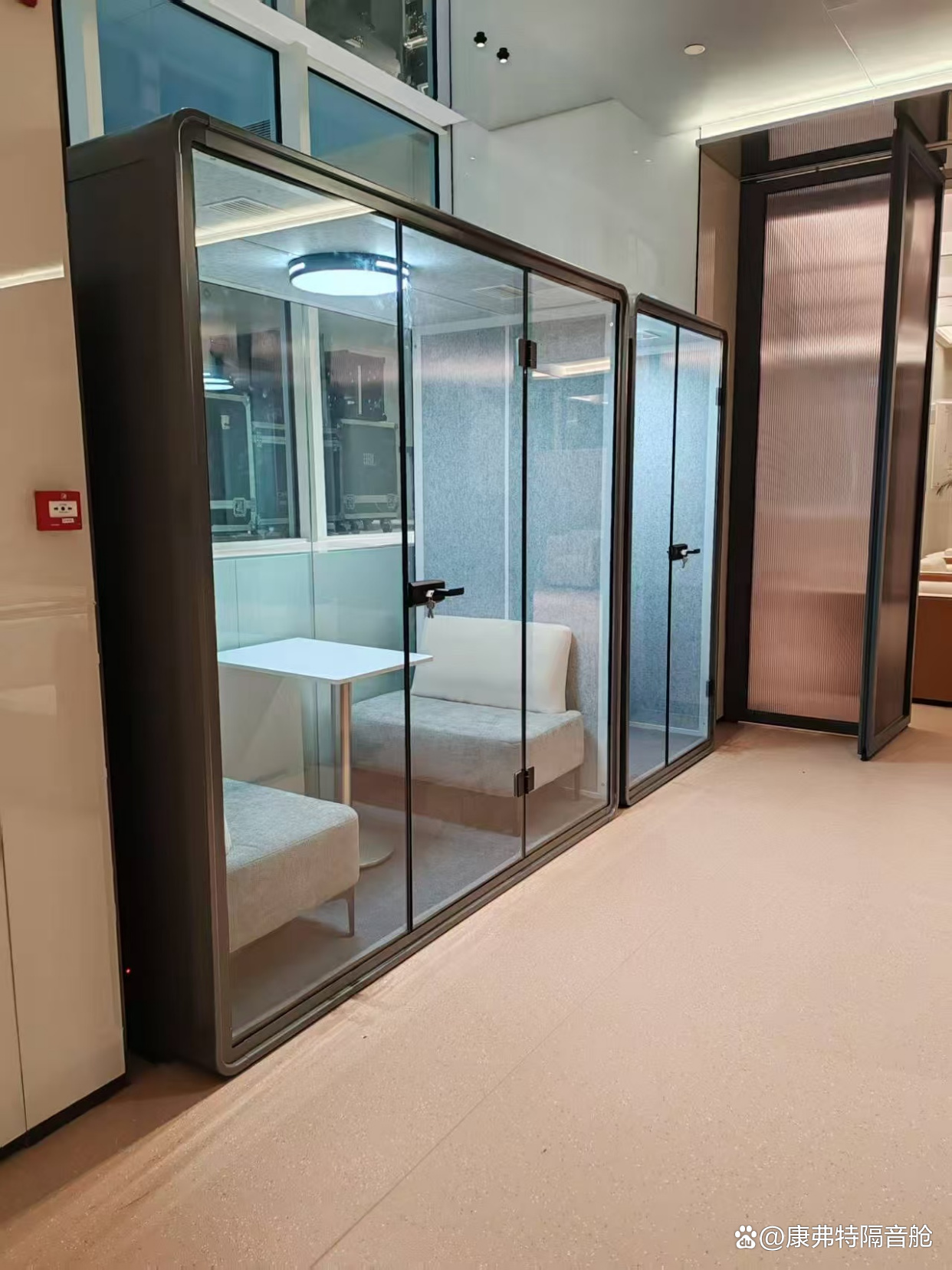

- Executive Meeting Pods – confidential small-boardroom acoustic glass walls (link → Applications / Meeting Pods)
- Recording & Podcast Booths – voice-over, podcast, and recording studios (link → Applications / Recording Booths)
- Acoustic Rooms & Quiet Rooms – focused work / telemedicine / interview rooms
- Architectural Acoustic Partitions – high-end glazed walls in open-plan and commercial interiors
Applications are downstream anchor links only. This product is not renamed "Office Pod Glass" or "Recording Booth Glass"—those terms live in the Applications taxonomy, per the agreed SEO architecture.
09 – Customization & OEM
- Custom laminated-lite build-up (glass + PVB thickness) matched to your STC target
- Custom cavity width and gas fill (air / argon / krypton)
- Asymmetric pane engineering in collaboration with your pod / room designer
- Integration with Low-E and/or Low-Iron for premium visual + thermal projects
- CNC processing: precision holes, cut-outs, notches for hardware integration
- Surface treatments: silk screen, frosted acid-etch, digital ceramic frit
- OEM packaging: export-standard wooden crates, custom labeling, spec-sheet co-branding
- Prototype IGU available in 10–14 days
10 – Testing & Certifications
- Acoustic: ASTM E90, ISO 10140 series, EN 12758
- Safety glass: EN 12150, EN 14449, ANSI Z97.1, AS/NZS 2208
- Sealed IGU: EN 1279 (1–4)
- CE / UKCA marking; ISO 9001:2015 factory management system
- Third-party verification: SGS / Intertek on request
- Document package: test reports, declarations of performance, compliance certificates per shipment
11 – Manufacturing Capability
- 20+ years tempered, laminated, and IGU export manufacturing (jumbotemperedglass.com mother line)
- Dedicated acoustic IGU line – separate humidity-controlled cavity assembly room
- Jumbo capacity – IGU units up to 2440 × 5000 mm
- Automated argon filling with gas-concentration verification
- In-house acoustic R&D – we engineer build-ups to a target STC/Rw rather than reselling generic units
- Export experience – 30+ countries; Incoterms, ocean-freight crating, customs documentation handled
- Fast sampling – prototype laminated IGU in 10–14 days
12 – RFQ (Request for Quotation)
Ready to specify a high-performance acoustic laminated IGU? Send your build-up and we will quote within 24 hours.
Please provide:
- Laminated-lite build-up (e.g., 6 mm + 1.14 mm PVB + 6 mm)
- Cavity (width + gas): e.g., 16 mm argon
- Second lite thickness (e.g., 8 mm tempered)
- Required acoustic target (STC or Rw, if specified)
- Dimensions (W × H) and quantity
- Low-E / Low-Iron / tinted preferences
- Processing requirements (holes, edgework, surface treatment)
- Destination port / Incoterm
- 📩 Email: tomron1688@gmail.com
- [Request a Quote] [Download Datasheet]
