Stair Glass Railing | Glass for Stair Railing Systems – Jumbo Glass
Glass for Stair Railing Systems – Safety Glass Engineered for Staircase Guardrails & Balustrades
Stair glass railing refers to the glass panels installed as guardrails or balustrades along staircases – whether in residential homes, commercial buildings, hotels, or public spaces. Unlike balcony glass railing, stair glass railing must contend with angled installations, variable guard load directions, impact from foot traffic, and often tighter dimensional constraints due to stair geometry.
For procurement managers and railing system fabricators supplying commercial office lobbies, hotel atriums, luxury residences, and public buildings, specifying the correct stair railing glass is critical. The glass must meet guard load requirements (typically 1.0 kN/m for stairs), resist impact at multiple heights, and integrate precisely with stair‑mounted hardware systems.
💡 Why stair glass railing is specified: Stair glass railing is a distinct sub‑category because staircases have unique safety requirements – guard loads apply at varying heights along the stair slope, and impact risks differ from level balcony applications. The global market for glass stair railings is driven by commercial interiors, hospitality, and high‑end residential sectors where open sightlines and natural light transmission are prioritized.
1. Quick Specification
| Parameter | Standard Stair Railing | Jumbo Stair Railing |
|---|
| Glass Types | Tempered, Laminated, Tempered‑Laminated | Tempered, Laminated, Tempered‑Laminated, Low‑Iron |
| Thickness Range | 12–21.52 mm | 12–21.52 mm |
| Max Width | ≤2440 mm | ≤3560 mm |
| Max Height | ≤6000 mm | ≤11000 mm (extreme up to 12800 mm) |
| Max Panel Area | ~15 m² | ~39 m² |
| Guard Load Capacity | 1.0 kN/m (stairs, typical) | Same + jumbo engineering |
| Safety Performance | ANSI Z97.1 / EN 15600 Class 1B1 | Same + jumbo validation |
2. Stair Railing System Types
The glass specification for stair railing depends on how the glass is mounted relative to the stair structure.

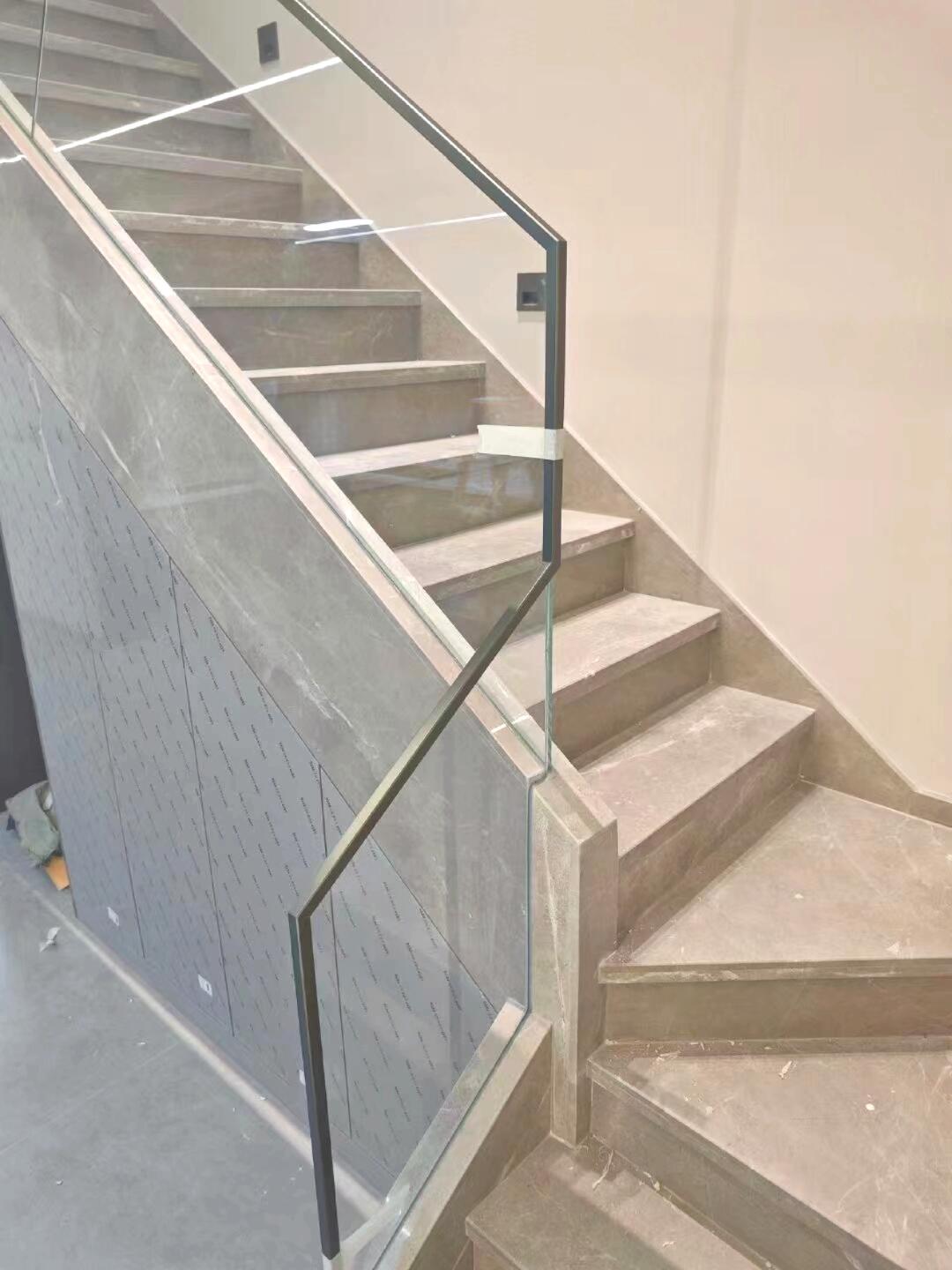

2.1 Frameless Stair Glass Railing
- Description: Glass panels without visible vertical posts, held by base shoe or standoffs mounted to stair treads or stringers
- Glass requirement: 12mm tempered, 13.52mm laminated, or 17.52mm tempered‑laminated
- Best for: Modern residential stairs, hotel atriums, commercial lobbies
- Key advantage: Uninterrupted sightlines, minimalist aesthetic
2.2 Post‑and‑Rail Stair Glass Railing
- Description: Glass panels fitted between vertical posts with top handrail, posts mounted to stair treads
- Glass requirement: 12mm tempered
- Best for: Code‑driven commercial stairs, high‑traffic public buildings
- Key advantage: Proven structural performance, lower cost
2.3 Point‑Supported (Standoff) Stair Glass Railing
- Description: Glass held by discrete standoffs/spiders mounted to stair stringers or side walls
- Glass requirement: 13.52mm or 17.52mm laminated (SGP recommended)
- Best for: Signature architectural stairs, floating staircase designs
- Key advantage: Maximum transparency, dramatic visual effect
2.4 Glass‑to‑Glass Stair Railing
- Description: Glass panels joined at corners with structural adhesive, no metal posts
- Glass requirement: 13.52mm or 17.52mm laminated
- Best for: Continuous glass runs around curved or multi‑landing stairs
- Key advantage: Seamless glass surfaces
3. Glass Configurations for Stair Railing
| Glass Configuration | Typical Use | Key Benefit | Recommended Thickness |
|---|
| Monolithic Tempered | Standard stair railing | Safety break pattern, cost‑effective | 12mm |
| Laminated Glass (PVB) | Safety‑critical stair railing | Post‑breakage retention | 13.52mm |
| Laminated Glass (SGP) | High‑traffic stairs, premium | Superior strength + retention | 13.52mm, 17.52mm |
| Tempered‑Laminated | High‑performance stairs | Strength + post‑breakage retention | 13.52mm, 17.52mm, 21.52mm |
| Low‑Iron Laminated | Luxury stairs, showrooms | Maximum clarity, no green edge | 13.52mm, 17.52mm |
Why Laminated Glass Is Critical for Stair Railing
- Post‑breakage retention: Prevents glass from falling onto people using the stairs below
- Higher guard load: Stairs typically require 1.0 kN/m vs. 0.74 kN/m for residential balconies
- Impact at multiple heights: Stair railings can be struck at any point along their height
- Code trend: More jurisdictions are requiring laminated glass for stair guards
4. Safety & Performance – Engineering Considerations
4.1 Guard Load Requirements for Stairs
| Building Type | Typical Guard Load | Applicable Standard |
|---|
| Residential stairs | 1.0 kN/m | IRC, NBC |
| Commercial stairs | 1.0 kN/m | IBC |
| Public assembly stairs | 1.5 kN/m | IBC |
| Handrail attachment load | 0.73 kN concentrated | IBC |
4.2 Impact Performance
| Standard | Test Method | Requirement |
|---|
| ANSI Z97.1 | 100 lb (445 N) impact | No penetration |
| EN 14600 | 40 kg soft body impact | Class 1B1 |
| AS/NZS 3708 | 100 kg pendulum impact | No penetration |
4.3 Post‑Breakage Behavior – Stair Specific
| Glass Type | Post‑Breakage Outcome |
|---|
| Monolithic Tempered (12mm) | Shatters into small cubes – potential fall‑through onto stairs below |
| Laminated (13.52mm PVB) | Cracks but remains bonded – no fall‑through |
| Laminated (17.52mm SGP) | Cracks, rigid retention – minimal deflection |
| Tempered‑Laminated (17.52mm) | Outer tempered cracks, inner laminated retains |
💡 Critical note for stairs: Because stair railings are located above descending paths of travel, laminated glass is strongly recommended even when local codes permit tempered glass alone. The consequence of glass failure on a staircase is more severe than on a level balcony.
4.4 Handrail Integration
- Glass stair railings often support or attach to handrails
- Handrail load must be transferred through glass or separate structure
- Clamp‑fixed systems allow handrail attachment directly to glass
5. Recommended Glass Thickness by Stair Application
| Configuration | Thickness | Typical Application |
|---|
| Tempered Glass | 12 mm | Low‑rise residential, post‑and‑rail |
| Laminated Glass (PVB) | 13.52 mm | Standard stairs, frameless |
| Laminated Glass (SGP) | 13.52 mm | Premium stairs, standoff system |
| Laminated Glass (SGP) | 17.52 mm | Large panels, high‑traffic stairs |
| Tempered‑Laminated | 17.52 mm | Commercial, public assembly |
| Tempered‑Laminated | 21.52 mm | Extra‑large panels, special projects |
| Low‑Iron Laminated | 13.52 mm | Luxury residential, showrooms |
| Low‑Iron Laminated | 17.52 mm | High‑end commercial atriums
Important: These are indicative thicknesses. Final selection must be verified by engineering calculation considering panel dimensions, support conditions, guard load, and local code. |
6. Jumbo & Oversized Stair Railing Glass
Our jumbo tempering and laminating lines enable stair railing glass at sizes that most suppliers cannot match – enabling continuous glass runs across multiple stair flights.
| Parameter | Standard | Jumbo |
|---|
| Max Width | ≤2440 mm | ≤3560 mm |
| Max Height | ≤6000 mm | ≤11000 mm (extreme up to 13200 mm) |
| Max Area | ~15 m² | ~39 m² |
| Glass Thickness | 12–21.52 mm | 12–21.52 mm |
| Flatness Tolerance | ±0.5 mm/m | ±0.5 mm/m |
Benefits of Jumbo Stair Railing Glass
- Continuous glass along stair flights – fewer joints, cleaner appearance
- Full‑height stairwell glass – spans multiple floors without horizontal seams
- Reduced hardware cost – fewer posts or standoffs needed
- Installation efficiency – fewer panels per linear metre of stair
7. Glass Processing for Stair Railing Systems
7.1 Edge Finishing
| Edge Type | Appearance | Best For |
|---|
| Flat Ground | Smooth matte | Post‑and‑rail, clamp‑fixed |
| Polished | Glossy, transparent | Frameless, standoff, exposed edges |
| Beveled | Angled decorative | Premium residential |
7.2 Hole Drilling
- For standoff systems and handrail brackets
- Diameter: Typically 12–50 mm
- Edge distance: ≥2× glass thickness
- Countersinking: Available for flush hardware
7.3 Notching
- For base shoe drainage slots and post clearance
- Depth: Typically 10–30 mm
- Position: Bottom edge only
7.4 Angled Top Edge Cutting
- Stair railings often follow the stair slope
- Angled cuts at top edge to match handrail alignment
- Custom angles per project
7.5 CNC Processing
- Custom cut‑outs for hardware
- Radius corners
- Slot cutting for post‑and‑rail systems
7.6 Tempering
- All stair railing glass must be fully tempered
- Heat soak test (HST) recommended for commercial and public stairs
7.7 Laminating
- PVB: Standard for most stair applications
- SGP (SentryGlas®): Recommended for high‑traffic stairs, large panels, and standoff systems
- Acoustic PVB: Available for noise‑sensitive environments
8. Glass Appearance Options
| Appearance | Suitable Application | Notes |
|---|
| Clear | Standard stair railing | Slight green edge visible in thicker glass |
| Low‑Iron / Ultra‑Clear | Luxury stairs, showrooms | Water‑white, no green edge |
| Grey Tinted | Contemporary design | Subtle solar control |
| Bronze Tinted | Hospitality, resorts | Warm aesthetic |
| Frosted / Acid‑Etched | Privacy stairs | Partial obscurity |
| Patterned | Decorative projects | Custom textures |
💡 Recommendation: For interior stair railings where the glass edge is highly visible (frameless, standoff systems), low‑iron glass with polished edges is strongly recommended to achieve the premium appearance expected in modern architecture.
9. Applications
| Application | Typical Glass | System Type |
|---|
| Residential Stairs | 12mm Tempered, 13.52mm Laminated | Frameless, post‑and‑rail |
| Luxury Home Stairs | 13.52mm Low‑Iron Laminated | Frameless, standoff |
| Commercial Office Stairs | 13.52mm Laminated | Post‑and‑rail, standoff |
| Hotel Atrium Stairs | 13.52mm Low‑Iron Laminated | Frameless, glass‑to‑glass |
| Public Building Stairs | 13.52mm Laminated | Post‑and‑rail |
| Shopping Mall Stairs | 13.52mm Tempered‑Laminated | Post‑and‑rail, standoff |
| Showroom / Display Stairs | 13.52mm Low‑Iron Laminated | Frameless, standoff |
| Educational Facility Stairs | 13.52mm Laminated | Post‑and‑rail |
10. Standards & Certifications
| Standard | Scope |
|---|
| ASTM E2358 | Standard practice for glazing for railing systems |
| ASTM C1048 | Heat‑treated flat glass – Kind HS, Kind FT |
| EN 16600 | Impact resistance of glass – classification |
| AS/NZS 4308 | Safety glazing for buildings |
| ANSI Z97.1 | Safety glazing materials used in buildings |
| EN 15449 | Laminated glass – definition and description |
| CE | European conformity marking |
| SGCC | Safety Glazing Certification Council |
| CCC | China compulsory certification |
11. Pricing Guidance (Indicative FOB, USD/m²)
Stair railing glass pricing varies by configuration, thickness, and processing requirements.
Base Glass Pricing (Standard Sizes ≤2440×6000mm)
| Configuration | Price Range (USD/m²) |
|---|
| 12mm Tempered | $26–38 |
| 13.52mm Laminated (PVB) | $48–66 |
| 13.52mm Laminated (SGP) | $60–82 |
| 17.52mm Laminated (PVB) | $72–98 |
| 17.52mm Laminated (SGP) | $88–118 |
| 17.52mm Tempered‑Laminated | $78–108 |
| 21.52mm Tempered‑Laminated | $98–138 |
| 13.52mm Low‑Iron Laminated | $68–88 |
| 17.52mm Low‑Iron Laminated | $92–124 |
Jumbo Size Surcharge
- Panels >3300×6000mm: +15–25%
- Extreme length (>9000mm): Engineering review required
Processing Surcharges
| Service | Surcharge |
|---|
| Polished edges | +$3–6/m |
| Beveled edges | +$6–12/m |
| Hole drilling (per hole) | +$2–5 |
| Countersinking (per hole) | +$2–4 |
| CNC cut‑outs | +$10–25 per cut‑out |
| Notching (per notch) | +$3–8 |
| Angled top edge cutting | +$5–12/m |
| Heat soak test | +$4–8/m² |
| SGP interlayer vs. PVB | +$12–20/m² |
12. Request Stair Glass Railing Quote
Submit your project requirements for a competitive FOB quotation and engineering assessment.
Required Information:
- Stair railing system: Frameless / Post‑and‑rail / Point‑supported / Glass‑to‑glass
- Glass configuration: Tempered / Laminated / Tempered‑Laminated / Low‑Iron
- Interlayer: PVB / SGP / Acoustic PVB
- Glass thickness (if known)
- Dimensions (width × height × quantity per panel)
- Stair slope angle (if applicable)
- Guard load requirement (kN/m) or building code
- Edge finish: Flat ground / Polished / Beveled
- Top edge angle: Horizontal / Sloped (specify angle)
- Hardware details: Holes, notches, cut‑outs (provide drawing)
- Handrail integration: Yes / No (if yes, describe)
- Application: Residential / Commercial / Hotel / Public
- Project location & local building code
- Certifications required
- Target delivery date
- 📧 Email your specification to: tomron1688@gmail.com
- 🌐 Or upload drawings at: www.jumbotemperedglass.com
- Response time: Preliminary feasibility within 24 hours; detailed quotation within 48 hours.
13. Frequently Asked Questions
Q1: What glass thickness is used for stair railing?
Typically 12mm tempered for low‑rise residential stairs; 13.52mm laminated for commercial and high‑traffic stairs. Final thickness depends on panel size, guard load, and local code.
Q2: Is laminated glass required for stair railings?
Strongly recommended. Many building codes require laminated glass for stair guards, especially where the stair is above a path of travel. Even when not mandated, it is the safest choice.
Q3: What is the difference between stair glass railing and glass balustrade?
They are functionally the same. "Glass balustrade" is more common in UK, Europe, Australia, and New Zealand. "Stair glass railing" is preferred in North America.
Q4: Can tempered glass be used for stair railings?
Yes, for low‑rise residential stairs with post‑and‑rail systems. For any stair where glass failure could result in a fall onto stairs below, laminated glass is strongly recommended.
Q5: What is the maximum panel size for stair railing glass?
Up to 3560 × 10200 mm for laminated glass. Larger sizes require engineering review.
Q6: Can you cut angled top edges for sloped stair railings?
Yes. We provide precision angled cutting to match stair slope and handrail alignment.
Q7: Do you provide glass with pre‑drilled holes for standoff systems?
Yes. We provide precision hole drilling, countersinking, and edge polishing for all standoff hardware configurations.
Q8: Should I specify low‑iron glass for stair railing?
For luxury residential, hotel atriums, and showrooms where the glass edge is visible, low‑iron glass is strongly recommended. The absence of green tint significantly enhances the premium appearance.
Q9: What standards apply to stair glass railing?
ASTM E2358, EN 57600, AS/NZS 9108, and ANSI Z97.1 are the primary standards. Local building codes determine guard load requirements.
Q10: What is the lead time?
Standard sizes: 5–7 weeks. Jumbo sizes: 7–9 weeks. Complex processing (angles, holes): +1–2 weeks.
14. Related Pages (Internal Link Cluster)
Within Railing Glass Section
Product Pages (Cross‑Links)
Other Applications
