Jumbo insulated Glass: The Energy saving Revolution Engine for Global Buildings
(jumbo insulating glass supplier, energy-saving curtain wall glass exporter, EN certified ultra large soundproof glass)
1.What is jumbo insulating glass?
Jumbo Glass also called Oversize glass, due to the aesthetic requirements of modern architectural projects, achieving the desired effect becomes challenging when there are too many glass gaps. Jumbo Insulating Glass refers to oversized insulating glass units (IGUs) typically exceeding 3.3m×2.4m. Composed of two or more glass panes bonded with advanced sealants and spacer systems, filled with dry air or inert gases, engineered for high-rise curtain walls and large-span skylights.Currently, tempered glass, laminated glass, and insulated glass, our maximum available dimensions are 3,300×13,000mm (11*42′), with an extreme length of up to 20,000mm (65.6′). Curved tempered glass up to 2800mm X 7500mm （9.2*24.6’）
2.Technical Specifications Table
| Category | Type | Parameters | Applications |
|---|
| Structure | Double Glazing | Thickness:12-36mm | Standard Facades |
| Triple Glazing | Thickness:24-60mm, U-value≤0.8W/m²K | Polar Regions |
| Function | Low-E Coated | SC:0.25-0.60, VLT:40-70% | Energy-efficient Buildings |
| Laminated+IGU | Wind Load Class 5, UV Block 99% | Skylights/Safety Glass |
| Gas Fill | Argon/Krypton | U-value↓15%, Sound Insulation≥40dB | Airports/Concert Halls |
3.Jumbo Size Specifications
✅ Max Size: 13000mm × 3000mm (Custom sizes supported)
✅ Glass Thickness: 3-19mm (Tempered/Laminated)
✅ Spacer: Stainless Steel/Thermoplastic (12-24mm adjustable)
📌 Note: German CNC cutting, tolerance≤±0.5mm
4. 6 Key Advantages
- Structural IntegrityPasses 2400Pa wind load test (ASTM E2190), suitable for 300m+ skyscrapers.
- Superior Energy EfficiencyLow-E + Argon gas, U-value as low as 0.6W/m²K, reduces HVAC costs by 30%.
- Customization CapabilitiesCurved cutting, frit patterns, smart film integration.
- Anti-CondensationMolecular sieve adsorption≥2800mg/g, no condensation at -40℃.
- 30-Year Seal LifeKödispace sealant + Automatic warm edge spacer technology.
- Global LogisticsA-grade crating with shock-proof packaging, DDP shipping worldwide.
5. Why Choose Us?

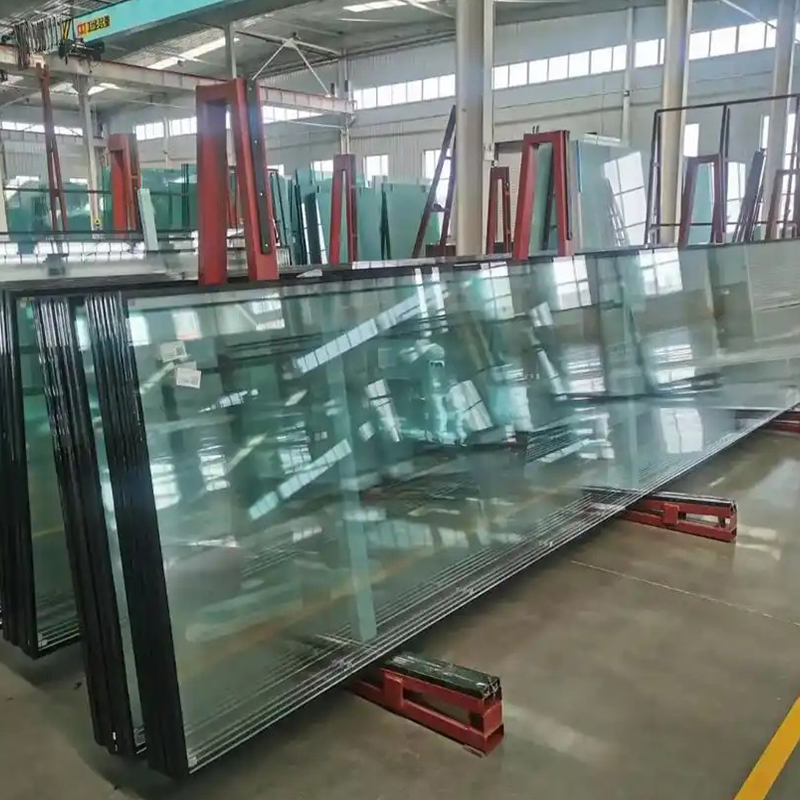

► European Production Line: Robotic assembly system (Image: Production line)
► Certifications: CE / ASTM E2190 / IGCC / SGCC
► Project Portfolio: Burj Khalifa supplier, Changi Airport facade
► Service Commitment: 30-day delivery | Free technical design
6. Applications

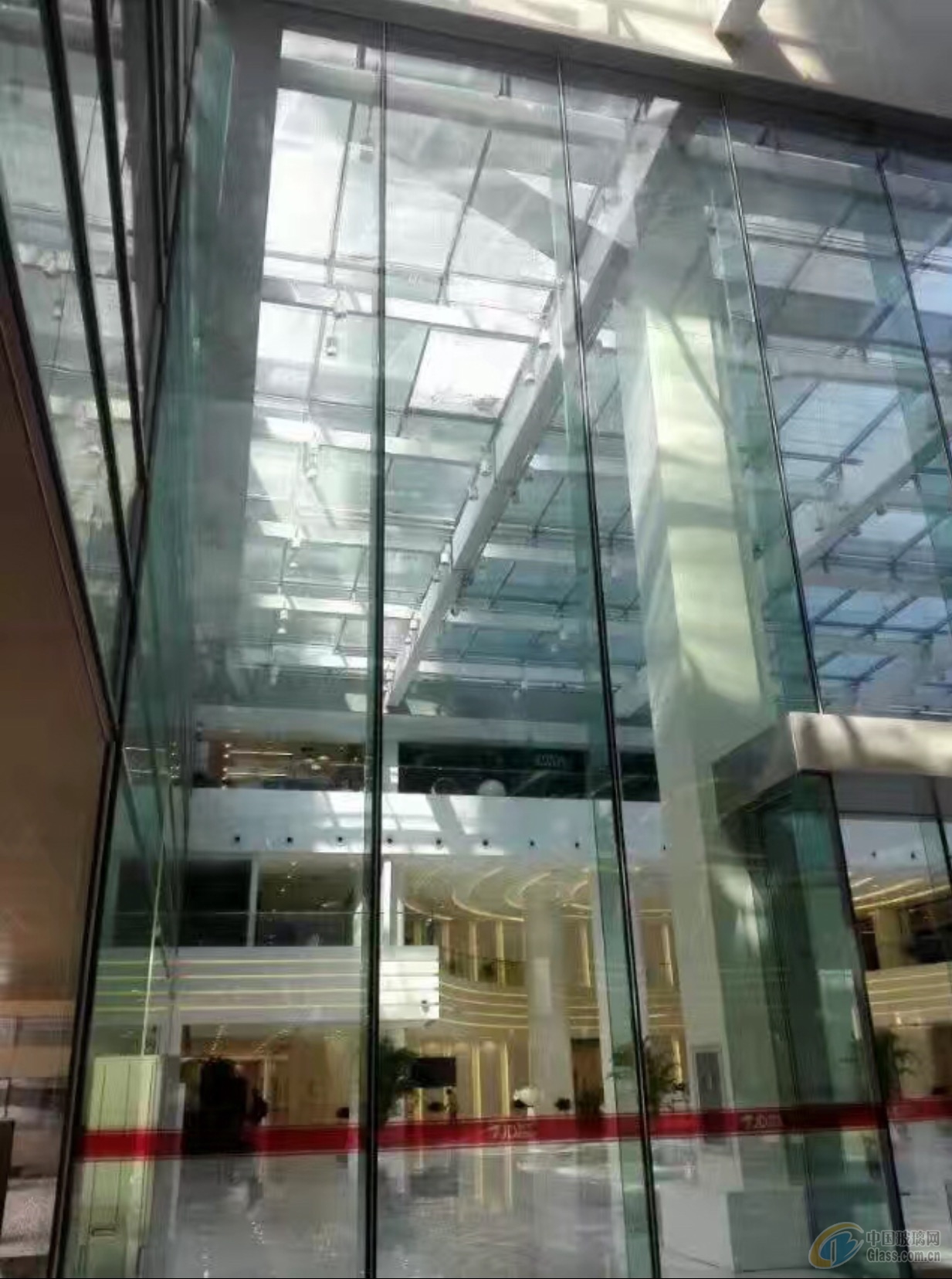

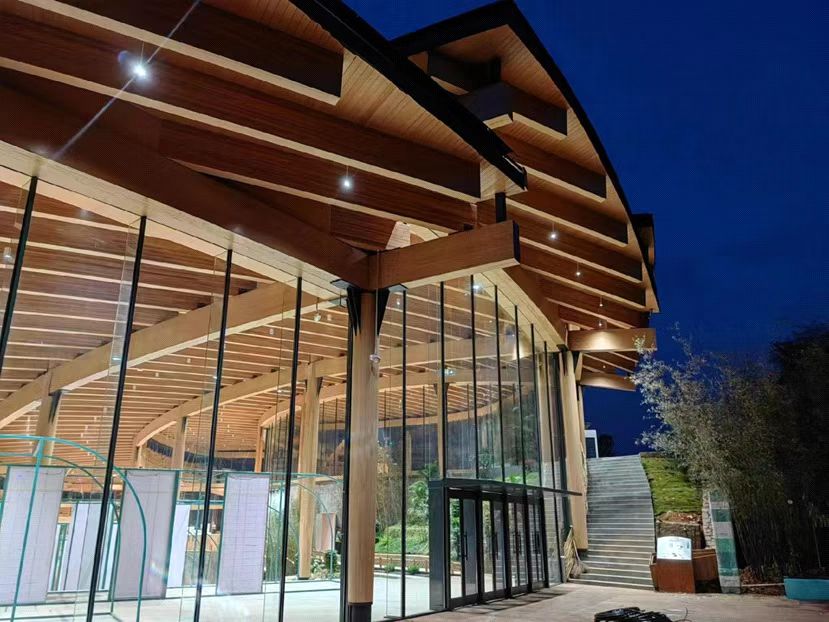

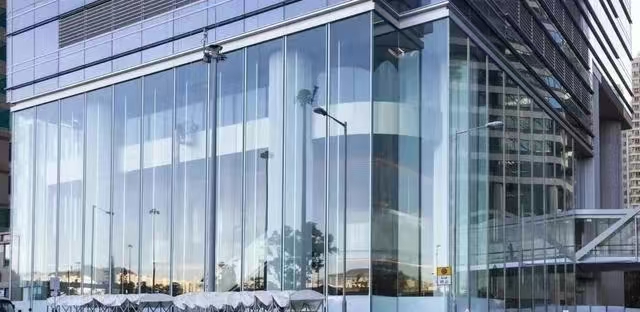

◼ Skyscraper curtain walls
◼ Airport terminal skylights
◼ Luxury hotel panoramic windows
◼ Museum glass facades
◼ BIPV (Building Integrated Photovoltaics)
![]()
![]()
![]()
![]()
- 📧 Email your specification to: tomron1688@gmail.com
- 🌐 Or visit: www.jumbotemperedglass.com
