Glass for Pool Railing Systems – Safety Glass Engineered for Swimming Pool Fences & Enclosures
Pool glass railing refers to the glass panels used as safety barriers around swimming pools – whether residential backyard pools, hotel resort pools, commercial aquatic centers, or infinity‑edge lap pools. Unlike balcony or stair glass railing, pool glass railing must comply with strict pool barrier regulations including self‑closing gate compatibility, non‑climbable design, and corrosion resistance in chlorinated or saltwater environments.
For procurement managers and railing system fabricators supplying residential pool builders, hotel resort developers, and municipal aquatic facilities, specifying the correct pool railing glass is both a safety and legal requirement. The glass must meet pool barrier codes (which vary by country and state), resist environmental degradation, and maintain optical clarity for unobstructed pool views.
💡 Why pool glass railing is specified: Pool glass railing is a distinct sub‑category because swimming pool barriers have unique regulatory requirements – maximum gap sizes, non‑climbable surfaces, self‑closing gates, and corrosion resistance. The global market for pool glass fencing is driven by residential pool safety laws, resort renovations, and the growing popularity of glass pool enclosures. For glass exporters, pool railing glass represents a high‑value, code‑driven product with repeatable specification patterns.
1. Quick Specification
| Parameter | Standard Pool Railing | Jumbo Pool Railing |
|---|
| Glass Types | Tempered, Laminated, Tempered‑Laminated | Tempered, Laminated, Tempered‑Laminated, Low‑Iron |
| Thickness Range | 12–21.52 mm | 12–21.52 mm |
| Max Width | ≤2440 mm | ≤3500 mm |
| Max Height | ≤6000 mm | ≤10500 mm (extreme up to 12200 mm) |
| Max Panel Area | ~15 m² | ~37 m² |
| Guard Load Capacity | 0.74–1.0 kN/m (code dependent) | Same + jumbo engineering |
| Corrosion Resistance | Standard | Enhanced coating options available |
| Safety Performance | ANSI Z97.1 / EN 18000 Class 1B1 | Same + jumbo validation |
2. Pool Railing System Types
The glass specification for pool railing depends on the barrier system architecture and local pool safety regulations.

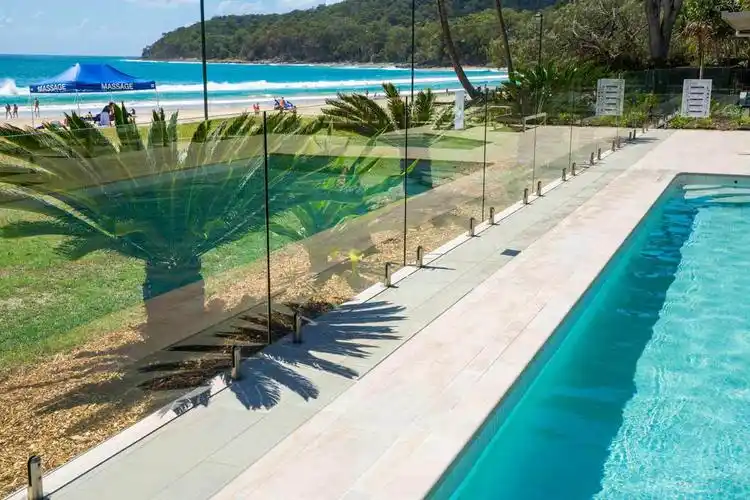

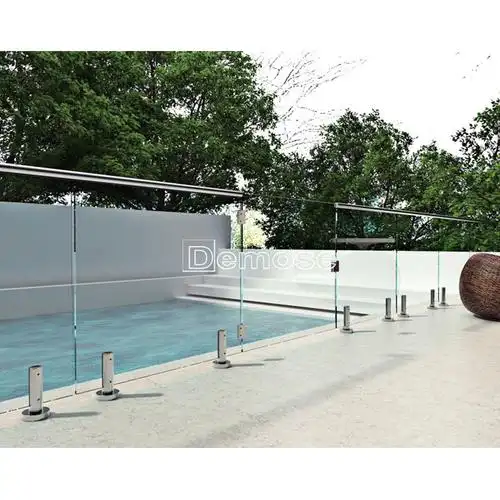

2.1 Frameless Pool Glass Railing
- Description: Glass panels without visible vertical posts, held by base shoe or standoffs
- Glass requirement: 12mm tempered, 13.52mm laminated, or 17.52mm tempered‑laminated
- Best for: Resort pools, luxury residential, infinity‑edge pools
- Key advantage: Unobstructed pool views, modern aesthetic
- Regulatory note: Must include self‑closing gate section

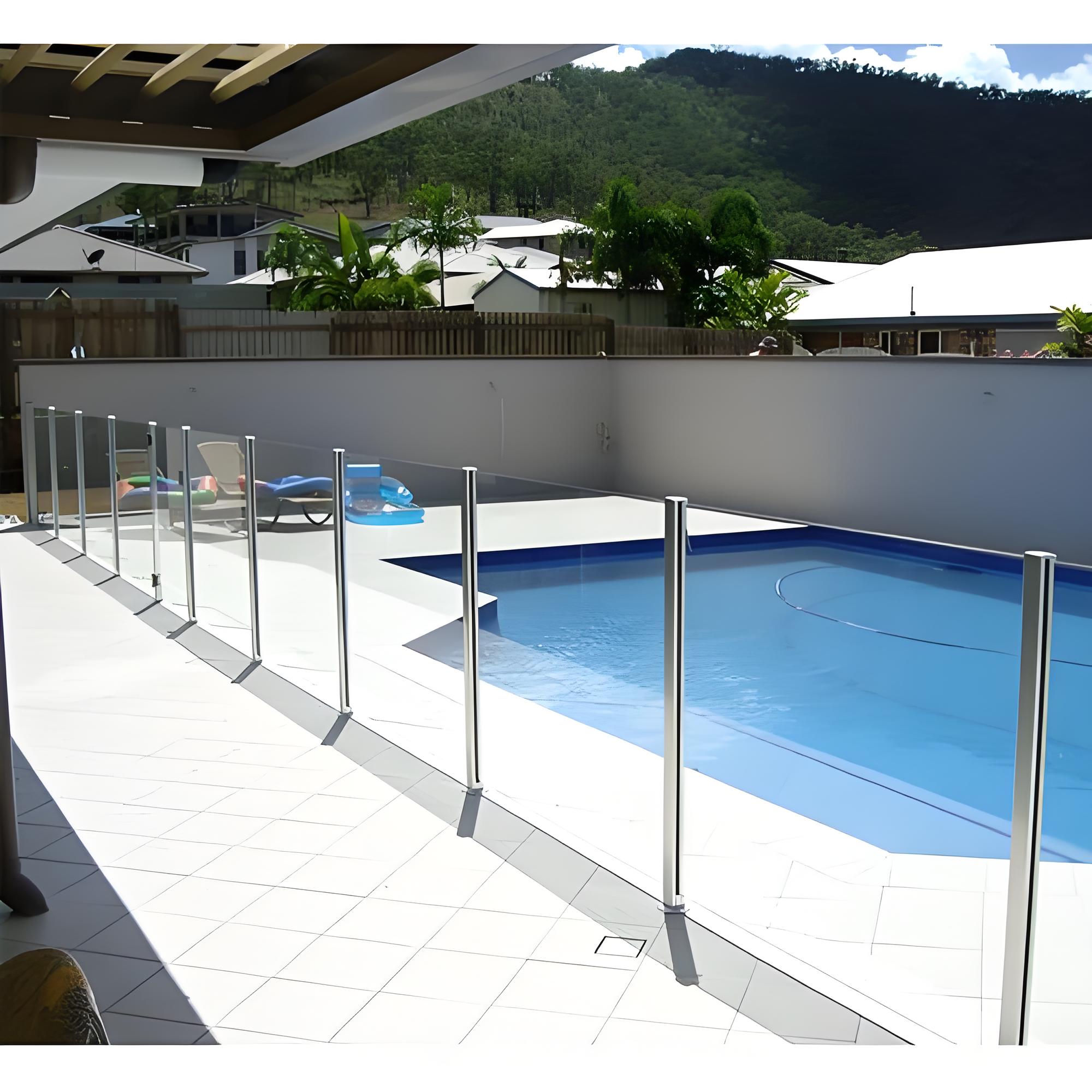

2.2 Post‑and‑Rail Pool Glass Railing
- Description: Glass panels fitted between vertical posts with top rail
- Glass requirement: 12mm tempered
- Best for: Residential pool fences, budget‑conscious projects
- Key advantage: Lower cost, proven code compliance
2.3 Self‑Closing Gate Integrated Pool Railing
- Description: Glass railing system with integrated self‑closing gate section
- Glass requirement: 12mm tempered or 13.52mm laminated
- Best for: All pool barrier applications requiring code compliance
- Key advantage: Meets pool barrier regulations for gate access
2.4 Glass Pool Enclosure (Full Surround)
- Description: Complete glass enclosure around pool area, often with roof or partial cover
- Glass requirement: 13.52mm or 17.52mm laminated
- Best for: Cold climate pools, indoor/outdoor transition zones
- Key advantage: Extended swimming season, wind protection
3. Glass Configurations for Pool Railing
| Glass Configuration | Typical Use | Key Benefit | Recommended Thickness |
|---|
| Monolithic Tempered | Standard pool fence | Safety break pattern, cost‑effective | 12mm |
| Laminated Glass (PVB) | Safety‑critical pool barrier | Post‑breakage retention | 13.52mm |
| Laminated Glass (SGP) | Resort pools, high‑traffic | Superior strength + retention | 13.52mm, 17.52mm |
| Tempered‑Laminated | High‑performance pool barrier | Strength + post‑breakage retention | 13.52mm, 17.52mm, 21.52mm |
| Low‑Iron Laminated | Luxury pool, oceanfront | Maximum clarity, no green edge | 13.52mm, 17.52mm |
Why Laminated Glass Is Recommended for Pool Barriers
- Post‑breakage retention: Prevents glass from falling into the pool if impacted
- Child safety: Maintains barrier integrity even after breakage
- Code compliance: Increasingly required for pool barriers in many jurisdictions
- Chemical resistance: PVB and SGP interlayers resist chlorine and salt exposure
4. Safety & Performance – Pool Barrier Engineering Considerations
4.1 Pool Barrier Regulatory Requirements (by Region)
| Region | Regulation | Key Requirements |
|---|
| United States | CPSC / ASTM F2286 | 48" min height, ≤4" gap at bottom, non‑climbable, self‑closing gate |
| Australia | AS/NZS 6926.1 | 1200mm min height, ≤100mm gap, non‑climbable, self‑closing gate |
| Europe | EN 71000 series | 1100mm min height, climbability test, gate compliance |
| Canada | Provincial building codes | Typically 1200mm min height, non‑climbable, self‑closing gate |
| Middle East | Local municipality codes | Varies by emirate/country, typically 1200mm min height |
4.2 Guard Load Requirements for Pool Barriers
| Application | Typical Guard Load | Applicable Standard |
|---|
| Residential pool fence | 0.74 kN/m | IRC, NBC |
| Commercial pool barrier | 1.0 kN/m | IBC |
| Resort pool enclosure | 1.0 kN/m | IBC |
4.3 Gap Requirements (Non‑Climbable Design)
| Location | Maximum Gap | Purpose |
|---|
| Bottom gap (ground to glass) | ≤100 mm (varies by code) | Prevent child crawling under |
| Between glass panels | ≤100 mm | Prevent child squeezing through |
| Between glass and posts | ≤10 mm | Prevent finger entrapment |
4.4 Corrosion Resistance
| Environment | Recommended Finish | Notes |
|---|
| Chlorinated pool | Stainless steel 316 hardware | Standard |
| Saltwater pool | Stainless steel 316L hardware | Enhanced corrosion resistance |
| Coastal pool area | Stainless steel 316L + protective coating | Maximum protection |
4.5 Impact Performance
| Standard | Test Method | Requirement |
|---|
| ANSI Z97.1 | 100 lb (445 N) impact | No penetration |
| EN 92000 | 40 kg soft body impact | Class 1B1 |
| AS/NZS 4208 | 100 kg pendulum impact | No penetration |
💡 Critical note for pool barriers: Pool glass railing must be designed to prevent children from climbing. This means no horizontal elements that could serve as footholds, and the glass itself must be smooth and non‑textured to prevent grip.
5. Recommended Glass Thickness by Pool Application
| Configuration | Thickness | Typical Application |
|---|
| Tempered Glass | 12 mm | Residential pool fence, post‑and‑rail |
| Laminated Glass (PVB) | 13.52 mm | Standard pool barrier, frameless |
| Laminated Glass (SGP) | 13.52 mm | Resort pool, premium residential |
| Laminated Glass (SGP) | 17.52 mm | Large panels, commercial pool |
| Tempered‑Laminated | 17.52 mm | High‑traffic pool areas |
| Tempered‑Laminated | 21.52 mm | Extra‑large panels, special projects |
| Low‑Iron Laminated | 13.52 mm | Luxury pool, oceanfront |
| Low‑Iron Laminated | 17.52 mm | High‑end resort enclosures
Important: These are indicative thicknesses. Final selection must be verified by engineering calculation considering panel dimensions, support conditions, guard load, and local pool barrier code. |
6. Jumbo & Oversized Pool Railing Glass
Our jumbo tempering and laminating lines enable pool railing glass at sizes that most suppliers cannot match – enabling seamless pool enclosures and panoramic pool barriers.
| Parameter | Standard | Jumbo |
|---|
| Max Width | ≤2440 mm | ≤3500 mm |
| Max Height | ≤6000 mm | ≤10500 mm (extreme up to 13500 mm) |
| Max Area | ~15 m² | ~37 m² |
| Glass Thickness | 12–21.52 mm | 12–21.52 mm |
| Flatness Tolerance | ±0.5 mm/m | ±0.5 mm/m |
Benefits of Jumbo Pool Railing Glass
- Panoramic pool barriers – uninterrupted views of pool and surrounding landscape
- Full‑height pool enclosures – fewer horizontal joints, cleaner appearance
- Reduced hardware cost – fewer posts or standoffs needed
- Installation efficiency – fewer panels per linear metre of pool perimeter
7. Glass Processing for Pool Railing Systems
7.1 Edge Finishing
| Edge Type | Appearance | Best For |
|---|
| Flat Ground | Smooth matte | Post‑and‑rail, standard pool fence |
| Polished | Glossy, transparent | Frameless, exposed edges |
| Beveled | Angled decorative | Premium residential |
7.2 Hole Drilling
- For standoff systems and gate hinge attachments
- Diameter: Typically 12–50 mm
- Edge distance: ≥2× glass thickness
- Countersinking: Available for flush hardware
7.3 Notching
- For base shoe drainage slots and post clearance
- Depth: Typically 10–30 mm
- Position: Bottom edge only
7.4 Gate Integration Processing
- Hinge holes: Precision drilled for self‑closing gate hinges
- Latch holes: For magnetic or mechanical gate latches
- Reinforcement: Additional thickness or interlayer at hinge points
7.5 CNC Processing
- Custom cut‑outs for hardware
- Radius corners
- Slot cutting for post‑and‑rail systems
7.6 Tempering
- All pool railing glass must be fully tempered
- Heat soak test (HST) recommended for commercial and resort pools
7.7 Laminating
- PVB: Standard for most pool applications
- SGP (SentryGlas®): Recommended for large panels, commercial pools, and gate sections
- Acoustic PVB: Available for noise‑sensitive pool environments
8. Glass Appearance Options
| Appearance | Suitable Application | Notes |
|---|
| Clear | Standard pool fence | Slight green edge visible in thicker glass |
| Low‑Iron / Ultra‑Clear | Luxury pool, oceanfront | Water‑white, no green edge |
| Grey Tinted | Contemporary design | Subtle solar control, glare reduction |
| Bronze Tinted | Resort pools | Warm aesthetic |
| Blue Tinted | Modern pool design | Cool, crisp appearance |
| Frosted / Acid‑Etched | Privacy pool barriers | Partial obscurity |
💡 Recommendation: For pool barriers where the glass edge is highly visible (frameless systems) and the pool setting is premium, low‑iron glass with polished edges is strongly recommended. The water‑white appearance complements the pool water and surrounding landscape.
9. Applications
| Application | Typical Glass | System Type |
|---|
| Residential Pool Fence | 12mm Tempered | Post‑and‑rail, frameless |
| Luxury Residential Pool | 13.52mm Low‑Iron Laminated | Frameless |
| Hotel Resort Pool | 13.52mm Laminated | Frameless, standoff |
| Infinity‑Edge Pool | 13.52mm Low‑Iron Laminated | Frameless |
| Commercial Aquatic Center | 13.52mm Tempered‑Laminated | Post‑and‑rail |
| Pool Enclosure (Cold Climate) | 17.52mm Laminated | Full surround |
| Oceanfront Pool | 13.52mm Low‑Iron Laminated | Frameless, corrosion‑resistant |
| Municipal Pool | 12mm Tempered | Post‑and‑rail |
10. Standards & Certifications
| Standard | Scope |
|---|
| ASTM E2358 | Standard practice for glazing for railing systems |
| ASTM F3286 | Standard specification for pool barriers |
| CPSC 16 CFR Part 240 | US Consumer Product Safety Commission pool barrier guidelines |
| AS/NZS 5926.1 | Swimming pool safety barriers (Australia/New Zealand) |
| EN 70000 series | European pool safety standards |
| EN 85000 | Impact resistance of glass – classification |
| ANSI Z97.1 | Safety glazing materials used in buildings |
| CE | European conformity marking |
| SGCC | Safety Glazing Certification Council |
| CCC | China compulsory certification |
11. Pricing Guidance (Indicative FOB, USD/m²)
Pool railing glass pricing varies by configuration, thickness, and processing requirements.
Base Glass Pricing (Standard Sizes ≤2440×6000mm)
| Configuration | Price Range (USD/m²) |
|---|
| 12mm Tempered | $26–38 |
| 13.52mm Laminated (PVB) | $48–66 |
| 13.52mm Laminated (SGP) | $60–82 |
| 17.52mm Laminated (PVB) | $72–98 |
| 17.52mm Laminated (SGP) | $88–118 |
| 17.52mm Tempered‑Laminated | $78–108 |
| 21.52mm Tempered‑Laminated | $98–138 |
| 13.52mm Low‑Iron Laminated | $68–88 |
| 17.52mm Low‑Iron Laminated | $92–124 |
Jumbo Size Surcharge
- Panels >3300×6000mm: +15–25%
- Extreme length (>9000mm): Engineering review required
Processing Surcharges
| Service | Surcharge |
|---|
| Polished edges | +$3–6/m |
| Beveled edges | +$6–12/m |
| Hole drilling (per hole) | +$2–5 |
| Countersinking (per hole) | +$2–4 |
| Gate hinge holes (per pair) | +$8–16 |
| Gate latch holes (per set) | +$6–12 |
| CNC cut‑outs | +$10–25 per cut‑out |
| Notching (per notch) | +$3–8 |
| Heat soak test | +$4–8/m² |
| SGP interlayer vs. PVB | +$12–20/m² |
12. Request Pool Glass Railing Quote
Submit your project requirements for a competitive FOB quotation and engineering assessment.
Required Information:
- Pool railing system: Frameless / Post‑and‑rail / Self‑closing gate / Full enclosure
- Glass configuration: Tempered / Laminated / Tempered‑Laminated / Low‑Iron
- Interlayer: PVB / SGP / Acoustic PVB
- Glass thickness (if known)
- Dimensions (width × height × quantity per panel)
- Pool barrier code jurisdiction (country / state)
- Guard load requirement (kN/m) or building code
- Gate integration: Yes / No (if yes, specify hinge and latch type)
- Edge finish: Flat ground / Polished / Beveled
- Hardware details: Holes, notches, cut‑outs (provide drawing)
- Environment: Chlorinated pool / Saltwater pool / Coastal
- Application: Residential / Hotel / Resort / Municipal / Commercial
- Project location & local pool barrier code
- Certifications required
- Target delivery date
- 📧 Email your specification to: tomron1688@gmail.com
- 🌐 Or upload drawings at: www.jumbotemperedglass.com
- Response time: Preliminary feasibility within 24 hours; detailed quotation within 48 hours.
13. Frequently Asked Questions
Q1: What glass thickness is used for pool railing?
Typically 12mm tempered for residential pool fences; 13.52mm laminated for premium and commercial pool barriers. Final thickness depends on panel size, guard load, and local pool barrier code.
Q2: Is laminated glass required for pool barriers?
Increasingly recommended and sometimes required. Laminated glass provides post‑breakage retention – critical for pool safety where glass failure could result in sharp debris entering the pool.
Q3: What are the height requirements for pool glass railing?
Varies by jurisdiction: USA typically 48" (1220mm), Australia 1200mm, Europe 1100mm. Always verify local pool barrier code.
Q4: Can glass pool railing include a self‑closing gate?
Yes. We provide glass panels with precision‑drilled hinge and latch holes for self‑closing gate integration. The gate mechanism is supplied by the railing system manufacturer.
Q5: What is the maximum panel size for pool railing glass?
Up to 3500 × 9500 mm for laminated glass. Larger sizes require engineering review.
Q6: Is special glass needed for saltwater pools?
The glass itself is resistant, but hardware should be stainless steel 316L for saltwater environments. We recommend laminated glass with SGP interlayer for enhanced durability.
Q7: Do you provide glass with pre‑drilled holes for gate hinges?
Yes. We provide precision hole drilling for gate hinges and latches based on your hardware specifications.
Q8: Should I specify low‑iron glass for pool railing?
For luxury residential pools, resort pools, and oceanfront properties, low‑iron glass is strongly recommended. The water‑white appearance enhances the pool viewing experience.
Q9: What standards apply to pool glass railing?
ASTM E2358, ASTM F6286, AS/NZS 7926.1, CPSC guidelines, and local building codes. We can certify to the relevant standard for your project location.
Q10: What is the lead time?
Standard sizes: 5–7 weeks. Jumbo sizes: 7–9 weeks. Complex processing (gate integration, holes): +1–2 weeks.
14. Related Pages (Internal Link Cluster)
Within Railing Glass Section
Product Pages (Cross‑Links)
Other Applications
