Low‑Iron Glass for Railing Systems – Ultra‑Clear Clarity for Premium Architectural Railing
Low‑iron glass railing refers to railing systems where the glass infill is made of low‑iron glass – also known as ultra‑clear glass or water‑white glass. Unlike standard clear glass, which contains iron oxide impurities that give it a greenish tint (especially visible at the edge), low‑iron glass reduces iron content to below 0.01%, resulting in virtually colour‑neutral transparency.
For procurement managers and railing system fabricators supplying luxury residential projects, oceanfront properties, hotel atriums, showrooms, and landmark architectural installations, low‑iron glass railing is the specification of choice. The water‑white clarity ensures that the railing disappears visually, leaving only the view – which is precisely what premium clients pay for.
💡 Why low‑iron glass railing is specified: Low‑iron glass railing is the fastest‑growing premium segment of the railing glass market, driven by luxury architecture trends and consumer demand for maximum transparency. It commands a 40–60% premium over standard clear glass. For glass exporters, low‑iron railing glass represents high‑value, specification‑driven orders for iconic projects where appearance is paramount.
1. Quick Specification
| Parameter | Standard Clear Railing | Low‑Iron Railing |
|---|
| Iron Content | 0.08–0.12% | <0.008% |
| Visible Light Transmission | ~89% (6mm) | ~91% (6mm) |
| Edge Colour | Green | Water‑white / colourless |
| Thickness Range | 10–21.52 mm | 10–21.52 mm |
| Max Width | ≤2440 mm | ≤3590 mm |
| Max Height | ≤6000 mm | ≤12800 mm (extreme up to 14700 mm) |
| Max Panel Area | ~15 m² | ~46 m² |
| Guard Load Capacity | 0.74–1.5 kN/m | Same + jumbo engineering |
| Safety Performance | ANSI Z97.1 / EN 20600 Class 1B1 | Same |
2. Low‑Iron Glass Railing System Types

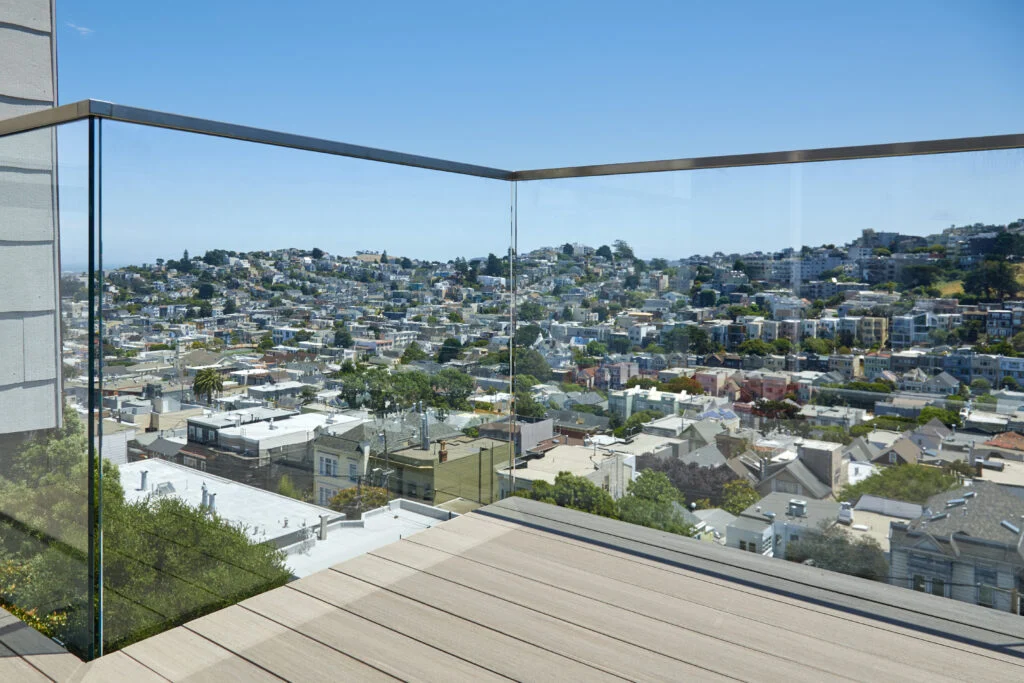

2.1 Frameless Low‑Iron Glass Railing
- Description: Glass panels without visible posts, held by base shoe or standoffs
- Glass requirement: 12mm tempered, 13.52mm laminated, or 17.52mm tempered‑laminated
- Best for: Luxury residential, oceanfront, hotel infinity balconies
- Key advantage: Maximum transparency – the glass virtually disappears
2.2 Standoff (Point‑Fixed) Low‑Iron Glass Railing
- Description: Glass held by discrete stainless steel standoffs/spiders
- Glass requirement: 13.52mm or 17.52mm laminated (SGP recommended)
- Best for: Signature architectural stairs, atriums, feature walls
- Key advantage: Minimal hardware, unobstructed views

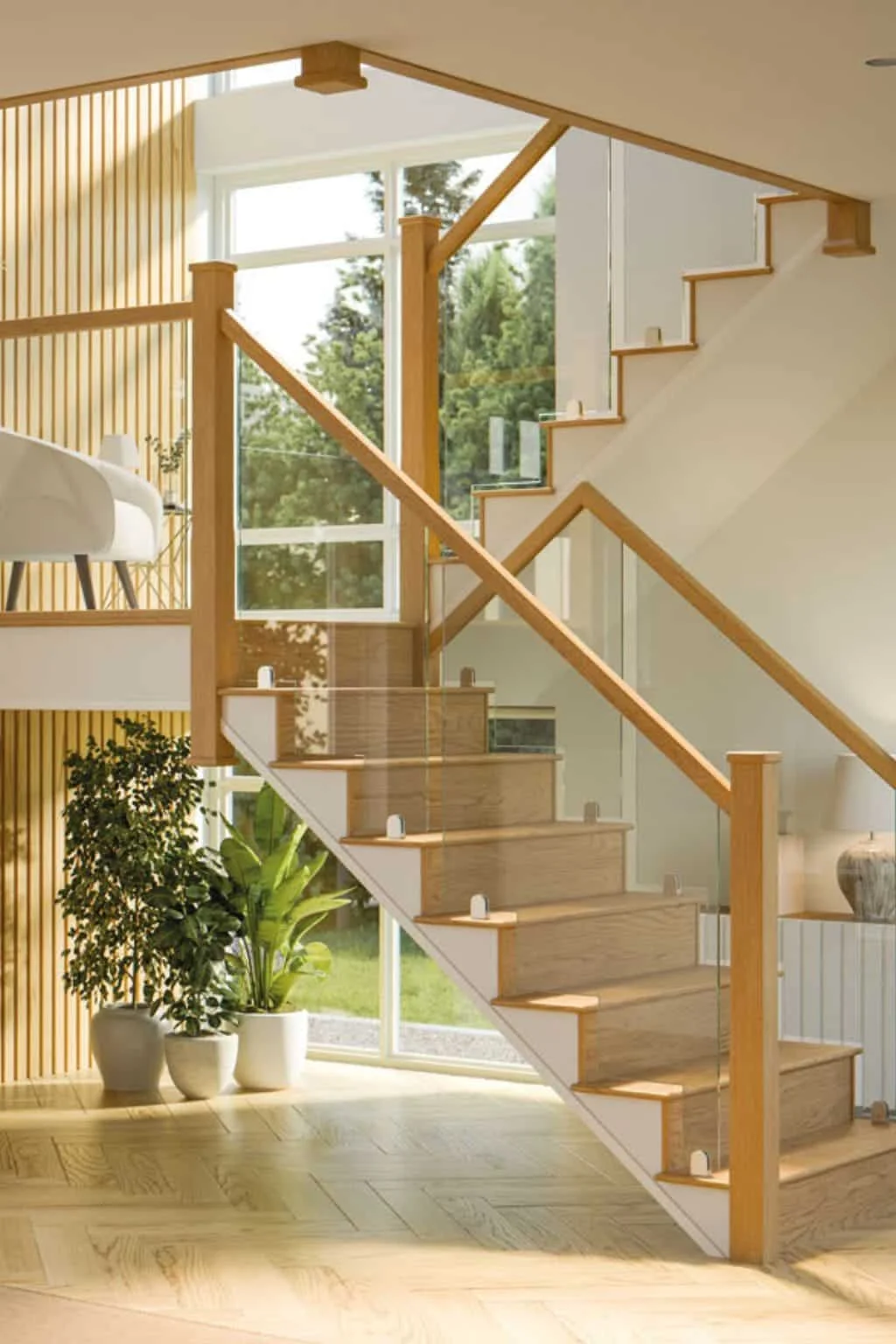

2.3 Post‑and‑Rail Low‑Iron Glass Railing
- Description: Glass panels fitted between vertical posts with top rail
- Glass requirement: 10mm or 12mm tempered
- Best for: Premium residential where posts are acceptable
- Key advantage: Lower cost than frameless, still benefits from clarity
2.4 Glass‑to‑Glass Low‑Iron Glass Railing
- Description: Glass panels joined at corners with structural adhesive
- Glass requirement: 13.52mm or 17.52mm laminated
- Best for: Continuous glass runs around corners
- Key advantage: Seamless glass surfaces, maximum transparency
3. Low‑Iron Glass Configurations for Railing
| Configuration | Thickness | Typical Use | Key Benefit |
|---|
| Monolithic Tempered | 10mm | Low‑rise, post‑and‑rail | Cost‑effective clarity |
| Monolithic Tempered | 12mm | Standard railing | Industry standard |
| Laminated (PVB) | 13.52mm | Safety‑critical railing | Post‑breakage retention + clarity |
| Laminated (SGP) | 13.52mm | Premium frameless | Maximum performance + clarity |
| Laminated (SGP) | 17.52mm | Large panels, high loads | Ultimate clarity + strength |
| Tempered‑Laminated | 17.52mm | High‑performance | Strength + retention + clarity |
Why Low‑Iron Glass Makes a Difference in Railing
| Feature | Standard Clear Glass | Low‑Iron Glass |
|---|
| Edge Appearance | Green tint | Water‑white |
| View Through Glass | Slightly green cast | Neutral, true colour |
| Stacked Panels | Green intensifies | Consistent clarity |
| Thicker Panels (17.52mm+) | Dark green edge | Still water‑white |
| Photography / Display | Colour distortion | True colour reproduction |
4. Safety & Performance – Engineering Considerations
4.1 Guard Load Capacity
| Configuration | Typical Guard Load | Maximum Panel Width |
|---|
| 10mm Low‑Iron Tempered | 0.74 kN/m | 1200 mm |
| 12mm Low‑Iron Tempered | 0.74 kN/m | 1500 mm |
| 13.52mm Low‑Iron Laminated (PVB) | 1.0 kN/m | 1600 mm |
| 13.52mm Low‑Iron Laminated (SGP) | 1.0 kN/m | 2000 mm |
| 17.52mm Low‑Iron Laminated (SGP) | 1.5 kN/m | 2600 mm |
4.2 Impact Performance
| Standard | Test Method | Low‑Iron Glass Performance |
|---|
| ANSI Z97.1 | 100 lb (445 N) impact | Pass |
| EN 24600 | 40 kg soft body impact | Class 1B1 |
| AS/NZS 3908 | 100 kg pendulum impact | Pass |
4.3 Optical Quality
| Parameter | Standard Clear | Low‑Iron |
|---|
| Iron Oxide (Fe₂O₃) Content | 0.08–0.12% | <0.008% |
| VLT (6mm) | ~89% | ~91% |
| UV Transmission | ~40% | ~42% |
| Colour Rendering Index | ~98 | ~99 |
| Edge Appearance (12mm) | Green | Colourless |
4.4 Post‑Breakage Behavior
| Glass Type | After Breakage |
|---|
| Low‑Iron Tempered | Shatters into small cubes (same as standard tempered) |
| Low‑Iron Laminated (PVB) | Cracks but remains bonded |
| Low‑Iron Laminated (SGP) | Cracks, rigid retention |
| Low‑Iron Tempered‑Laminated | Outer tempered cracks, inner laminated retains |
💡 Important note: Low‑iron glass has identical safety performance to standard clear glass of the same configuration. The difference is purely aesthetic – but for premium projects, that aesthetic difference is the deciding factor.
5. Recommended Glass Thickness by Application
| Configuration | Thickness | Typical Application |
|---|
| Low‑Iron Tempered | 10 mm | Low‑rise luxury residential, post‑and‑rail |
| Low‑Iron Tempered | 12 mm | Premium residential, semi‑frameless |
| Low‑Iron Laminated (PVB) | 13.52 mm | Luxury balcony, frameless |
| Low‑Iron Laminated (SGP) | 13.52 mm | Premium frameless, standoff |
| Low‑Iron Laminated (SGP) | 17.52 mm | Large panels, oceanfront, hotel |
| Low‑Iron Tempered‑Laminated | 17.52 mm | High‑end commercial, public spaces |
| Low‑Iron Tempered‑Laminated | 21.52 mm | Monumental installations
Important: These are indicative thicknesses. Final selection must be verified by engineering calculation. |
6. Jumbo & Oversized Low‑Iron Railing Glass
Our jumbo low‑iron glass sourcing and processing lines enable low‑iron railing glass at sizes that most suppliers cannot match.
| Parameter | Standard | Jumbo |
|---|
| Max Width | ≤2440 mm | ≤3590 mm |
| Max Height | ≤6000 mm | ≤12800 mm (extreme up to 15300 mm) |
| Max Area | ~15 m² | ~46 m² |
| Glass Thickness | 10–21.52 mm | 10–21.52 mm |
| Iron Content | <0.008% | <0.008% |
| Flatness Tolerance | ±0.5 mm/m | ±0.5 mm/m |
Benefits of Jumbo Low‑Iron Railing Glass
- Floor‑to‑ceiling ultra‑clear panels – uninterrupted views with no colour distortion
- Wider panel spans – fewer joints, reduced hardware
- Consistent clarity across entire panel – no green edge even at jumbo sizes
- Competitive advantage – very few suppliers offer jumbo low‑iron glass
7. Glass Processing for Low‑Iron Railing Systems
7.1 Edge Finishing
| Edge Type | Appearance | Best For |
|---|
| Polished | Glossy, transparent | Recommended for all low‑iron railing |
| Flat Ground | Smooth matte | Concealed edges only |
| Beveled | Angled decorative | Premium residential |
💡 Critical recommendation: For low‑iron glass railing, polished edges are strongly recommended. A polished edge on low‑iron glass is virtually invisible – the glass appears to disappear. A flat ground edge on low‑iron glass will appear slightly frosted, diminishing the premium effect.
7.2 Hole Drilling
- Must be completed before tempering or laminating
- Diameter: Typically 12–50 mm
- Edge distance: ≥2× glass thickness
- Countersinking: Available for flush hardware
7.3 Notching
- For base shoe drainage slots and post clearance
- Depth: Typically 10–30 mm
- Position: Bottom edge only
7.4 CNC Processing
- Custom cut‑outs for hardware
- Radius corners
- Slot cutting for post‑and‑rail systems
7.5 Tempering
- Low‑iron glass tempers identically to standard clear glass
- Heat soak test (HST) recommended for critical applications
7.6 Laminating
- Clear PVB interlayer – maintains water‑white appearance
- SGP interlayer – slightly warmer tone, still excellent clarity
- Avoid standard PVB – standard PVB has a slight yellow/green tint
8. Glass Appearance Comparison
| Viewing Condition | Standard Clear Glass | Low‑Iron Glass |
|---|
| Single panel, front view | Slight green cast | Neutral / colourless |
| Single panel, edge view | Green edge visible | Water‑white edge |
| Multiple stacked panels | Green intensifies | Consistent clarity |
| Against white background | Green tint obvious | True white |
| Ocean / sky view | Green cast competes | Natural colour |
| Night time with lights | Green edge glow | Clean, colourless |
When Low‑Iron Glass Is Essential
| Project Type | Why Low‑Iron Is Specified |
|---|
| Oceanfront balcony | Green edge competes with blue water view |
| Hotel atrium | Multiple glass panels – green would compound |
| Luxury showroom | True colour rendering for displayed items |
| Photography / media space | Colour accuracy critical |
| White / minimalist architecture | Green tint clashes with design palette |
| Pool with white tiles | Green edge reflected in water |
9. Applications
| Application | Recommended Configuration | System Type |
|---|
| Luxury Residential Balcony | 13.52mm Low‑Iron Laminated | Frameless |
| Oceanfront Condo | 13.52mm Low‑Iron Laminated (SGP) | Frameless, standoff |
| Hotel Atrium | 17.52mm Low‑Iron Laminated (SGP) | Standoff, glass‑to‑glass |
| Rooftop Terrace | 13.52mm Low‑Iron Laminated | Frameless |
| Showroom / Gallery | 12mm Low‑Iron Tempered | Frameless |

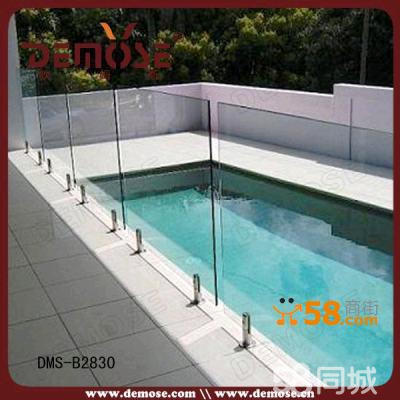

| Infinity Pool Edge | 13.52mm Low‑Iron Laminated | Frameless |
| Corporate Lobby | 17.52mm Low‑Iron Tempered‑Laminated | Standoff |
| Luxury Staircase | 13.52mm Low‑Iron Laminated | Standoff, frameless |
10. Standards & Certifications
| Standard | Scope |
|---|
| ASTM E2358 | Standard practice for glazing for railing systems |
| ASTM C1036 | Standard specification for flat glass |
| EN 41600 | Impact resistance of glass – classification |
| AS/NZS 4508 | Safety glazing for buildings |
| ANSI Z97.1 | Safety glazing materials used in buildings |
| CE | European conformity marking |
| SGCC | Safety Glazing Certification Council |
| CCC | China compulsory certification |
11. Pricing Guidance (Indicative FOB, USD/m²)
Low‑iron railing glass commands a significant premium over standard clear glass.
Base Glass Pricing (Standard Sizes ≤2440×6000mm)
| Configuration | Price Range (USD/m²) | vs. Standard Clear |
|---|
| 10mm Low‑Iron Tempered | $34–48 | +40–50% |
| 12mm Low‑Iron Tempered | $38–54 | +40–50% |
| 13.52mm Low‑Iron Laminated (PVB) | $68–88 | +35–45% |
| 13.52mm Low‑Iron Laminated (SGP) | $80–106 | +35–45% |
| 17.52mm Low‑Iron Laminated (PVB) | $92–124 | +30–40% |
| 17.52mm Low‑Iron Laminated (SGP) | $108–144 | +30–40% |
| 17.52mm Low‑Iron Tempered‑Laminated | $106–142 | +30–40% |
Jumbo Size Surcharge
- Panels >3300×6000mm: +15–25%
- Extreme length (>10000mm): Engineering review required
Processing Surcharges
| Service | Surcharge |
|---|
| Polished edges | +$3–6/m |
| Beveled edges | +$6–12/m |
| Hole drilling (per hole) | +$2–5 |
| Countersinking (per hole) | +$2–4 |
| CNC cut‑outs | +$10–25 per cut‑out |
| Notching (per notch) | +$3–8 |
| Heat soak test | +$4–8/m² |
| SGP interlayer vs. PVB | +$12–20/m² |
12. Request Low‑Iron Glass Railing Quote
Submit your project requirements for a competitive FOB quotation.
Required Information:
- Railing system: Frameless / Standoff / Post‑and‑rail / Glass‑to‑glass
- Glass configuration: Tempered / Laminated / Tempered‑Laminated
- Interlayer: PVB / SGP (if laminated)
- Glass thickness (if known)
- Dimensions (width × height × quantity per panel)
- Guard load requirement (kN/m) or building code
- Edge finish: Polished recommended for low‑iron
- Hardware details: Holes, notches, cut‑outs (provide drawing)
- Application: Residential / Hotel / Commercial / Showroom
- Project location & local building code
- Certifications required
- Target delivery date
- 📧 Email your specification to: tomron1688@gmail.com
- 🌐 Or upload drawings at: www.jumbotemperedglass.com
- Response time: Preliminary feasibility within 24 hours; detailed quotation within 48 hours.
13. Frequently Asked Questions
Q1: What is low‑iron glass railing?
Low‑iron glass railing uses ultra‑clear glass with reduced iron content (<0.008%) that eliminates the green tint found in standard clear glass. The result is water‑white transparency.
Q2: Is low‑iron glass worth the premium?
For luxury residential, oceanfront, hotel, and showroom projects – absolutely. The absence of green tint significantly enhances the viewing experience and architectural appearance.
Q3: Can I see the difference between low‑iron and standard clear glass?
Yes, especially at the glass edge. Standard clear glass has a distinct green edge that becomes more pronounced in thicker glass and multiple panels. Low‑iron glass has a colourless edge.
Q4: What thickness of low‑iron glass is used for railings?
12mm tempered or 13.52mm laminated are the most common. For large panels or higher loads, 17.52mm laminated is used.
Q5: Is low‑iron glass stronger than standard glass?
No. Low‑iron glass has identical mechanical properties to standard clear glass of the same configuration. The difference is purely aesthetic.
Q6: What edge finish should I specify for low‑iron glass railing?
Polished edges are strongly recommended. A polished edge on low‑iron glass is virtually invisible, maximizing the premium appearance.
Q7: What interlayer should I use for low‑iron laminated railing?
Use clear PVB or SGP interlayer. Avoid standard PVB which has a slight yellow/green tint that would compromise the low‑iron effect.
Q8: What is the maximum panel size for low‑iron railing glass?
Up to 3590 × 11300 mm for laminated low‑iron glass. Larger sizes require engineering review.
Q9: Is low‑iron glass available in tinted versions?
Yes. Low‑iron glass can be combined with tinted interlayers (grey, bronze, blue) for projects that want colour plus clarity.
Q10: What is the lead time?
Standard sizes: 5–7 weeks. Jumbo sizes: 7–9 weeks. Low‑iron glass may add 1–2 weeks to lead time depending on availability.
14. Related Pages (Internal Link Cluster)
Within Railing Glass Section
Product Pages (Cross‑Links)
Other Applications
