Semi-Frameless Glass Pool Fencing
Toughened Safety Glass with Vertical Posts – A Practical Balance of Clean Aesthetics, Structural Support & Project Cost
Semi-frameless glass pool fencing uses toughened safety glass panels supported by vertical aluminium or stainless steel posts between each panel, combined with spigots or clamps at the base. Unlike fully frameless systems that minimise all visible hardware, semi-frameless systems incorporate discrete vertical posts that provide structural support while maintaining a predominantly transparent appearance – offering a practical middle ground between the premium aesthetics of frameless and the affordability of fully framed systems.
For pool builders, fencing installers, and procurement managers supplying the Australian and New Zealand residential and commercial pool market, semi-frameless glass pool fencing represents the best value-for-money solution – delivering the modern glass look with reduced glass thickness requirements, simpler installation, and lower overall project cost.
💡 Why semi-frameless matters: In the Australian pool fencing market, semi-frameless systems account for a significant share of installations because they offer the visual appeal of glass fencing without the premium cost of fully frameless systems. The vertical posts reduce the structural demands on the glass itself, allowing for thinner (and therefore less expensive) glass panels while still achieving compliance with AS 1926.1 pool safety standards. For glass suppliers, semi-frameless pool fencing represents a higher-volume, more accessible market segment than the premium frameless niche.
1. Semi-Frameless Glass Pool Fencing Solutions
Semi-frameless glass pool fencing encompasses several configurations that balance aesthetics, structural support, and cost.

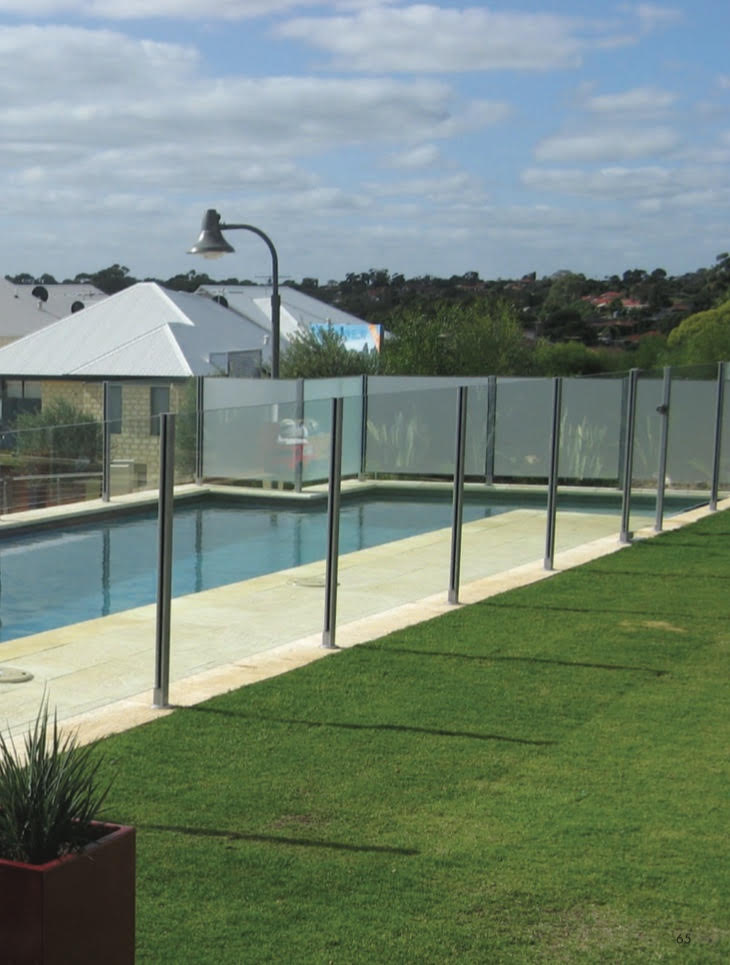

1.1 Post-and-Spigot Semi-Frameless System
- Description: Glass panels between vertical posts, mounted on spigots at the base
- Glass type: 8mm or 10mm toughened safety glass
- Post material: Aluminium (standard) or Stainless Steel (premium)
- Best for: Residential pool fencing, cost-effective installations
- Key benefit: Clean appearance with reduced glass thickness requirement
1.2 Post-and-Channel Semi-Frameless System
- Description: Glass panels between vertical posts, set into a bottom channel
- Glass type: 8mm or 10mm toughened safety glass
- Channel type: Recessed or surface-mounted aluminium channel
- Best for: New builds where channels can be incorporated into the slab
- Key benefit: Secure bottom fixing, no visible spigots
1.3 Continuous Post Semi-Frameless System
- Description: Continuous vertical posts with glass panels fitted between them
- Glass type: 8mm or 10mm toughened safety glass
- Post spacing: Typically 1200–1800mm centres
- Best for: Longer pool fence runs, commercial applications
- Key benefit: Consistent appearance, straightforward installation
1.4 Custom Semi-Frameless System
- Description: Bespoke configurations for complex pool layouts or specific design requirements
- Glass type: 8mm, 10mm or 12mm toughened glass
- Best for: Non-standard pool shapes, stepped installations, integrated gates
- Key benefit: Engineered to suit unique site conditions

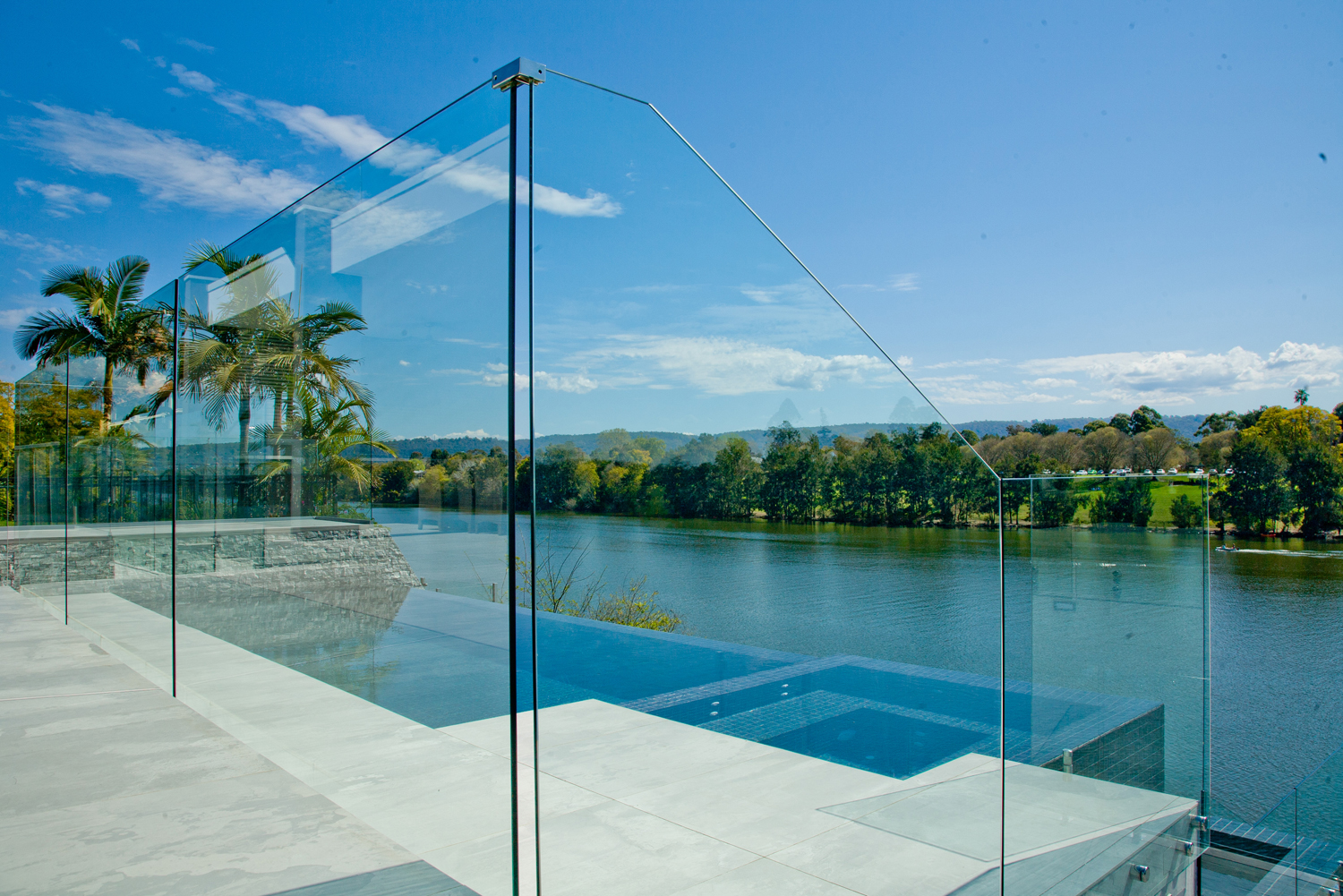

2. Semi-Frameless vs Frameless Pool Fencing
This comparison helps procurement managers and installers decide which system best suits their project requirements.
| Feature | Semi-Frameless Glass Pool Fencing | Frameless Glass Pool Fencing |
|---|
| Visual obstruction | Low – posts visible between panels | Minimal – glass only |
| Vertical posts | Yes – aluminium or stainless steel | None or minimal (spigots only) |
| Glass thickness | 8–10mm toughened | 10–12mm toughened |
| Hardware visibility | Moderate – posts + spigots/channels | Very low – spigots or channels only |
| Cost | More economical | Higher |
| Installation complexity | Moderate – posts provide alignment guide | Higher – precision required |
| Glass replacement cost | Lower – thinner glass, less expensive | Higher – thicker glass, more expensive |
| Typical application | Residential, commercial, budget-conscious | Premium residential, architectural |
| Compliance | AS 1926.1 compliant | AS 1926.1 compliant |
| Maintenance | Low – posts require occasional cleaning | Low – glass cleans easily |
3. Glass Configurations for Semi-Frameless Pool Fencing
3.1 Glass Types
| Glass Type | Typical Use | Key Advantage | Link to Product |
|---|
| Clear Toughened Glass | Standard semi-frameless fencing | Cost-effective, transparent, safety-approved | View Toughened Glass → |
| Ultra Clear Toughened Glass | Premium semi-frameless projects | Reduced green tint, improved clarity | View Ultra Clear Glass → |
| Heat-Soak Tested Glass | Higher quality assurance | Reduced risk of nickel sulphide inclusion failure | View Toughened Glass → |
| Laminated Glass | Safety-critical applications | Post-breakage retention | View Laminated Glass →
|
3.2 Glass Build-Up Options
| Build-Up | Total Thickness | Typical Application | Notes |
|---|
| 8mm Toughened | 8 mm | Standard semi-frameless fencing | Most common for residential |
| 10mm Toughened | 10 mm | Taller panels, commercial applications | Additional rigidity |
| 12mm Toughened | 12 mm | Wide panels, high-wind areas | Over-specified for most semi-frameless |
| 8T + 1.52PVB + 8T | 17.52 mm | Laminated safety option | Post-breakage retention |
4. Glass Thickness for Semi-Frameless Pool Fencing
4.1 Thickness Recommendations
| Panel Height | Recommended Thickness | Notes |
|---|
| Up to 1200mm | 8mm toughened | Standard residential pool fence height |
| 1200–1500mm | 10mm toughened | Taller panels require additional rigidity |
| 1500–1800mm | 10mm or 12mm toughened | Consult engineering for specific requirements |
| Over 1800mm | 12mm toughened or laminated | Structural assessment required |
4.2 Factors Affecting Thickness Selection
| Factor | Impact on Thickness | Consideration |
|---|
| Post spacing | Wider spacing = thicker glass required | Standard spacing: 1200–1800mm |
| Panel width | Wider panels = thicker glass required | Balance width vs. cost |
| Wind exposure | Coastal/exposed sites = thicker glass | Check local wind load requirements |
| Local regulations | State-specific requirements vary | Confirm with local authority |
Recommendation: For semi-frameless systems, 8mm toughened glass is the most common and cost-effective choice for standard residential pool fencing at 1200mm height. Submit your glass schedule with panel dimensions and post spacing for a project-specific recommendation.
5. Fixing & Installation Methods
5.1 Post Fixing Options
| Post Type | Material | Finish Options | Best For |
|---|
| Round post | Aluminium or Stainless Steel | Mill finish, powder-coated, brushed | Standard residential |
| Square post | Aluminium or Stainless Steel | Mill finish, powder-coated, brushed | Modern architectural look |
| Rectangular post | Aluminium | Powder-coated | Commercial applications |
| Adjustable post | Aluminium | Mill finish | Uneven surfaces, stepped installations |
5.2 Glass-to-Post Fixing
| Fixing Method | Description | Best For |
|---|
| Continuous clamp | Full-length clamp along glass edge | Maximum stability |
| Point clamp | Discrete clamps at intervals | Cleaner appearance |
| Channel insert | Glass slides into post channel | Streamlined look |
5.3 Bottom Fixing Options
| Bottom Fixing | Description | Best For |
|---|
| Spigot-mounted | Glass on spigots at base | Existing slabs, retrofit |
| Channel-fixed | Glass in bottom channel | New builds, recessed installation |
| Base shoe | Continuous base plate | Commercial, high-traffic areas |
6. Glass Processing for Semi-Frameless Pool Fencing
6.1 Standard Processing Services
| Processing Service | Description | Typical Semi-Frameless Application |
|---|
| Precision cutting | Cut to exact dimensions (±0.5mm) | All pool fence panels |
| Edge polishing | Smooth, transparent polished edges | Recommended for visible edges |
| Edge seaming | Rounded edges for safe handling | All panels |
| Drilling for clamps | Precision-drilled holes for point clamps | Point clamp fixing systems |
| Notching | Corner notches for channel clearance | Channel-fixed systems |
| Radius corners | Curved corners for safety and appearance | All pool fence panels |
6.2 Processing Differences: Semi-Frameless vs Frameless
| Processing Requirement | Semi-Frameless | Frameless |
|---|
| Edge polishing | Recommended (edges partially visible) | Mandatory (edges fully visible) |
| Hole drilling | Required for point clamps | Required for spigots |
| Hole position tolerance | ±1.0mm acceptable | ±0.5mm required |
| Flatness tolerance | Standard | Tight (L/200) |
7. Safety & Standards
7.1 Australian & New Zealand Standards
| Standard | Scope | Requirement for Pool Fencing |
|---|
| AS 1926.1 | Swimming pool safety – fencing | Compliance with height, gap, and climbability requirements |
| AS/NZS 2208 | Safety glazing materials | Toughened glass must meet impact test requirements |
| AS/NZS 1170 | Structural design actions | Wind load requirements for exposed pool areas |
| NCC (National Construction Code) | Building code compliance | Referenced in all Australian states |
7.2 Key Safety Requirements for Semi-Frameless Pool Fencing
| Requirement | Specification | How Semi-Frameless Meets It |
|---|
| Minimum height | 1200mm (varies by state) | Glass panels manufactured to required height |
| Gap between panels | ≤100mm | Posts provide consistent spacing |
| Gap between glass and ground | ≤100mm | Spigot/channel height controlled |
| Non-climbable surface | No footholds or handholds | Smooth glass + posts with no climbable features |
| Gate self-closing | Gate must close and latch automatically | Gate hardware integrated with post system |
7.3 Toughened Glass Safety
| Property | Toughened Glass | Why It's Safe for Pool Fencing |
|---|
| Strength | 4–5× stronger than annealed glass | Resists impact and wind loads |
| Breakage pattern | Shatters into small, relatively harmless fragments | Reduces injury risk |
| Surface compression | Minimum 69 MPa (per AS/NZS 2208) | Ensures safety glass classification |
8. Custom Sizes for Semi-Frameless Pool Fencing
8.1 Standard Size Range
| Parameter | Standard Capability | Jumbo Glass Capability |
|---|
| Max Panel Height | 2400 mm | ≤3300 mm |
| Max Panel Width | 1800 mm | ≤12000 mm |
| Max Panel Area | ~4.3 m² | ~40 m² |
| Glass Thickness | 8–12 mm | 8–44.5 mm (multi-ply) |
8.2 Custom Size Considerations
| Factor | Consideration | Recommendation |
|---|
| Panel height | Standard pool fence height is 1200mm | Most panels are 1100–1300mm |
| Panel width | Determined by post spacing | 1200–1800mm typical |
| Corner panels | Need angled cuts or separate panels | Specify angle when ordering |
| Stepped installations | Panels at different heights on slopes | Provide elevation drawings |
9. Pool Gates & Special Panels
9.1 Semi-Frameless Pool Gates
| Gate Type | Description | Glass Requirement |
|---|
| Hinged gate with posts | Gate panel between two posts with hinges | 8mm or 10mm toughened |
| Self-closing gate | Gate with hydraulic closer for compliance | 8mm or 10mm toughened + gate hardware |
| Gate latch integration | Latch mounted on post | Standard post-mounted latch |
9.2 Special Panel Configurations
| Panel Type | Application | Processing Required |
|---|
| Return panels | 90-degree corner returns | Notched or mitred edges |
| Step-over panels | Panels at different heights on slopes | Stepped bottom edge |
| End panels | Termination of fence run | End post integration |
10. Large-Format Semi-Frameless Pool Fence Glass
10.1 Jumbo Glass Advantage
| Benefit | Standard Panels | Large-Format Panels |
|---|
| Number of posts required | Many (every 1200–1800mm) | Fewer (every 2400–3600mm) |
| Visual appearance | More posts visible | Cleaner – fewer interruptions |
| Installation time | Longer – more posts to install | Faster – fewer posts |
| Cost per linear metre | Lower (thinner glass) | Potentially lower (fewer posts) |
10.2 Applications
| Application | Panel Size Example | Benefit |
|---|
| Residential pool fencing | 2400 × 1200 mm | Fewer posts, cleaner appearance |
| Commercial pool surrounds | 3000 × 1200 mm | Fast installation, professional finish |
| Resort pool fencing | 3600 × 1200 mm | Consistent appearance, reduced maintenance |
11. Related Products
Each semi-frameless pool fencing configuration links directly to our product pages for detailed specifications.
| Pool Fencing Requirement | Recommended Product | Link |
|---|
| Standard semi-frameless glass | Jumbo Toughened Glass (8–10mm) | View Product → |
| Premium clarity semi-frameless | Ultra Clear Toughened Glass | View Product → |
| Safety-enhanced option | Jumbo Laminated Glass | View Product → |
| Large-format panels | Jumbo Glass | View Product → |
12. Project References – Semi-Frameless Pool Fencing
| Project | Location | Solution | Size | Notable Feature |
|---|
| Sydney Residential Pool | Australia | 8mm toughened, post-and-spigot | 2400×1200 mm | Aluminium round posts, powder-coated |
| Melbourne Family Home | Australia | 8mm toughened, post-and-channel | 3600×1200 mm | Recessed channel, square posts |
| Brisbane Commercial Pool | Australia | 10mm toughened, continuous post | 5400×1200 mm | Stainless steel posts, marine grade |
| Perth Coastal Residence | Australia | 10mm heat-soak tested | 7200×1200 mm | Coastal wind load compliance |
| Gold Coast Resort | Australia | 8mm toughened, post-and-spigot | 10800×1200 mm | Large-scale installation, consistent finish |
13. Frequently Asked Questions – Semi-Frameless Glass Pool Fencing
Q1: What is semi-frameless glass pool fencing?
Semi-frameless glass pool fencing uses toughened glass panels supported by vertical aluminium or stainless steel posts between each panel. It offers a balance between the clean appearance of frameless systems and the cost-effectiveness of fully framed systems.
Q2: What thickness of glass is used for semi-frameless pool fencing?
8mm toughened glass is the most common thickness for standard residential semi-frameless pool fencing at 1200mm height. For taller panels or wider post spacing, 10mm toughened glass may be recommended.
Q3: How does semi-frameless compare to frameless in cost?
Semi-frameless is typically 20–40% less expensive than fully frameless systems. The cost savings come from thinner glass (8mm vs 12mm), simpler installation, and less precision required in glass processing.
Q4: Is semi-frameless pool fencing compliant with Australian standards?
Yes. Semi-frameless glass pool fencing complies with AS 1926.1 and AS/NZS 2208 when correctly specified and installed. The vertical posts provide additional structural support while maintaining compliance.
Q5: What post materials are available?
Posts are available in aluminium (standard, cost-effective) or stainless steel (premium, corrosion-resistant). Aluminium posts can be powder-coated in various colours to match the project aesthetic.
Q6: Can semi-frameless systems include gates?
Yes. Semi-frameless pool gates integrate seamlessly with the post system. Gate panels are typically 8mm or 10mm toughened glass with hinges mounted on the adjacent posts.
Q7: What edge finish is recommended for semi-frameless?
Polished edges are recommended for semi-frameless systems. While edges may be partially concealed by posts, visible portions benefit from the clean, transparent finish of polished edges.
Q8: Do you supply the posts and hardware for semi-frameless systems?
We supply the glass panels only. However, we can provide glass that is pre-dimensioned and processed to suit standard post and clamp systems from leading manufacturers.
Q9: Can semi-frameless systems be installed on existing slabs?
Yes. Post-and-spigot systems are designed for existing slabs. Posts are anchored into the concrete, and glass panels are mounted on spigots between the posts.
Q10: How long does it take to produce semi-frameless pool fence glass?
Standard 8mm toughened panels: 2–3 weeks. 10mm panels: 3–4 weeks. Ultra clear or heat-soak tested: 4–5 weeks.
14. Request Semi-Frameless Pool Fence Glass Quote
Submit your project requirements for a competitive FOB quotation.
Required Information:
- Project type: Residential pool / Commercial pool / Resort / Hotel / Other
- System type: Post-and-Spigot / Post-and-Channel / Continuous Post / Custom
- Panel dimensions: Width × Height per panel
- Number of panels
- Post spacing: Centre-to-centre distance
- Glass type: Clear Toughened / Ultra Clear Toughened / Heat-Soak Tested / Laminated
- Glass thickness: 8mm / 10mm / 12mm
- Edge finish: Polished / Flat ground
- Post material: Aluminium / Stainless Steel (if specifying)
- Bottom fixing: Spigot / Channel / Base shoe
- Gate required? Yes / No (if yes: hinged / sliding)
- Special requirements: Stepped installation / Radius corners / Custom shapes
- Project location
- Certifications required: AS/NZS 2208 / AS 1926.1 / Other
- Target delivery date
- 📧 Email your specification to: tomron1688@gmail.com
- 🌐 Or upload drawings at: www.jumbotemperedglass.com
- Response time: Preliminary feasibility within 24 hours; detailed quotation with engineering assessment within 48 hours.
15. Related Pages (Internal Link Cluster)
Within Glass Pool Fencing Section
Product Pages (Cross‑Links)
Other Applications
