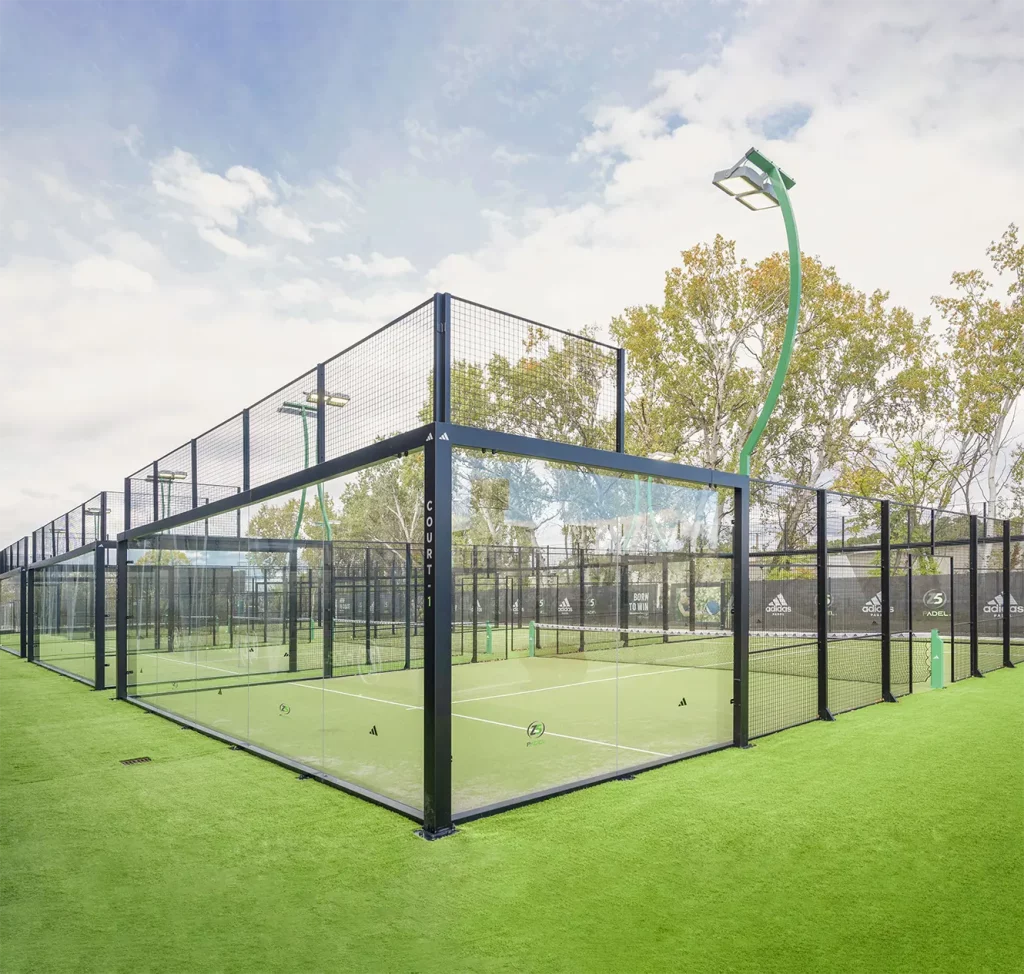

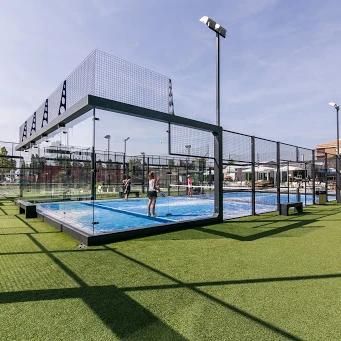

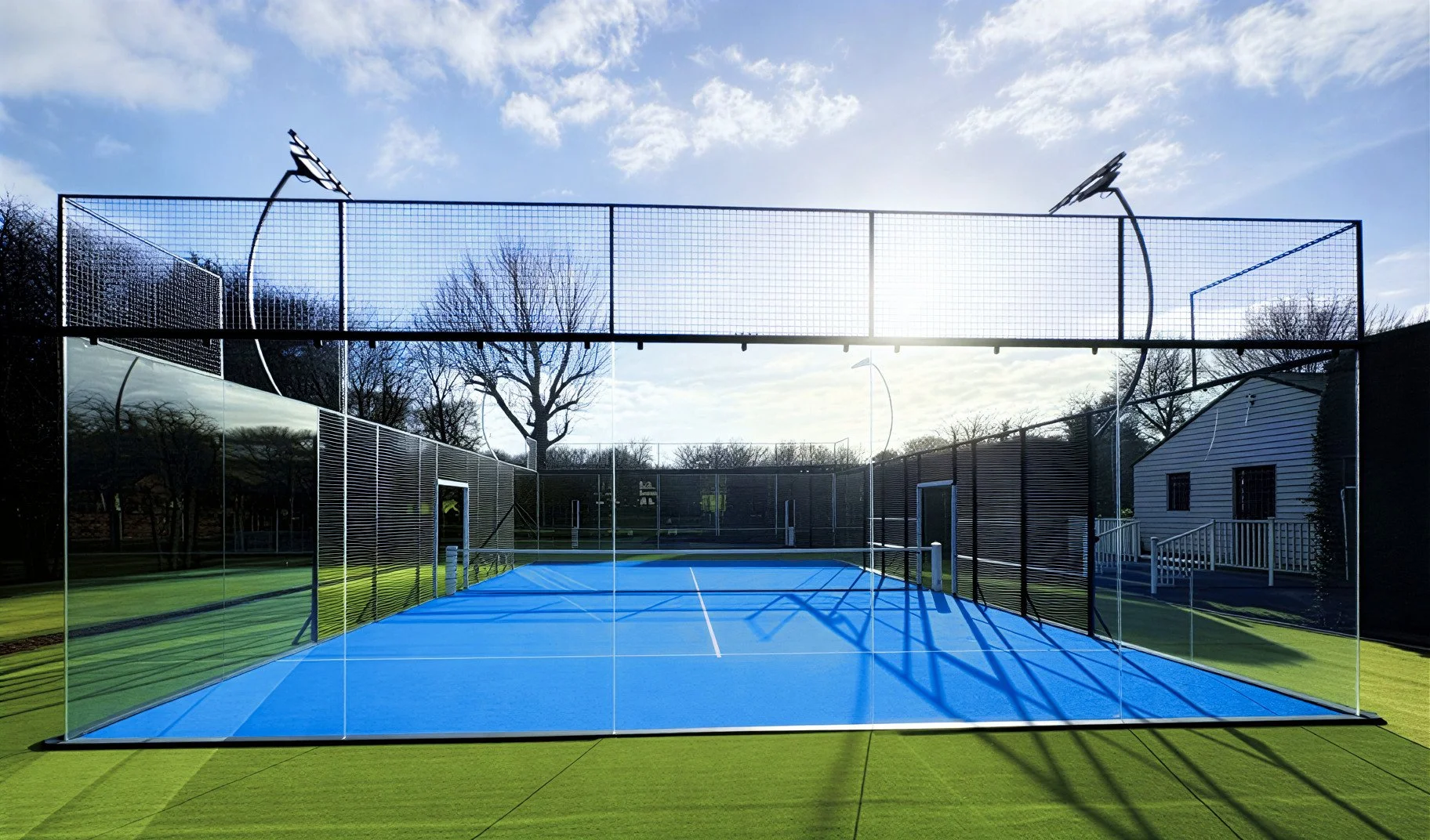

Panoramic Padel Court Glass
12mm Tempered & Ultra-Clear Low-Iron Glass for Premium Padel Court Systems – Enhanced Visibility, Superior Spectator Experience
Panoramic padel court glass uses larger-format tempered safety glass panels to create a more open, visually immersive playing environment than standard padel courts. By increasing the glass panel dimensions and minimising visible framing, panoramic padel court glass delivers significantly enhanced spectator sightlines, a more premium court appearance, and an elevated playing experience that distinguishes premium clubs and tournament venues from standard facilities.
For padel court manufacturers, sports facility developers, club owners, and procurement managers supplying the European, Middle Eastern, Australian and global premium padel market, panoramic padel court glass represents the differentiated product tier – commanding higher project values while meeting the growing demand for superior court aesthetics and spectator experience.
💡 Why panoramic padel court glass matters: As padel matures from a rapidly growing sport into an established industry, the market is segmenting. Standard courts serve the volume market – clubs, academies, recreational facilities. But premium venues – flagship clubs, tournament hosts, broadcast-friendly courts – increasingly demand panoramic configurations. Panoramic padel court glass is the bridge between the economy of standard courts and the ultimate transparency of super panoramic systems, offering a compelling upgrade path for clubs seeking competitive advantage through court quality.
1. Panoramic Padel Court Glass Solutions
Panoramic padel court glass encompasses glass configurations designed to maximise transparency and viewing area while maintaining structural integrity and compliance.
1.1 12mm Tempered Glass for Panoramic Courts
- Description: 12mm fully tempered safety glass panels in larger-than-standard dimensions
- Typical application: Premium clubs, tournament venues, broadcast courts
- Panel sizes: Oversized relative to standard 1995×2995 mm – typically 2500–3500 mm width
- Key benefit: Fewer vertical joints, larger transparent areas, enhanced spectator views
1.2 Ultra-Clear / Low-Iron Glass for Panoramic Courts
- Description: 12mm ultra-clear low-iron tempered glass for maximum optical clarity
- Typical application: Flagship clubs, show courts, architecturally designed venues
- Visual impact: Water-white clarity – no green tint at edges or face
- Key benefit: True colour transmission – players, ball and court markings appear in natural colours
1.3 Panoramic Glass with Custom Processing
- Description: 12mm tempered or ultra-clear glass with bespoke hole patterns and edge finishes
- Typical application: Proprietary frame systems, designer court concepts
- Processing: CNC countersunk holes, polished edges, custom dimensions
- Key benefit: Seamless integration with premium court frame designs
1.4 Panoramic Glass with Heat-Soak Testing
- Description: 12mm tempered or ultra-clear glass with additional heat soak testing
- Typical application: High-value installations, long-term investments
- Key benefit: Reduced risk of nickel sulphide inclusion failure – maximum reliability for flagship venues
2. Panoramic vs Standard vs Super Panoramic Padel Court Glass
This comparison helps procurement managers understand where panoramic glass fits in the padel court glass spectrum.
| Feature | Standard Padel Court Glass | Panoramic Padel Court Glass | Super Panoramic Padel Court Glass |
|---|
| Glass thickness | 10mm or 12mm tempered | 12mm tempered / ultra-clear | 12mm+ large-format / laminated |
| Frame visibility | Moderate – standard frame | Reduced – larger glass panels | Minimal – frameless or near-frameless |
| Panel size | 1995×2995 mm (standard) | Larger than standard (2500–3500mm) | Maximum – up to 3300×12000 mm |
| Spectator visibility | Good | Better – larger viewing area | Best – uninterrupted views |
| Optical clarity | Standard clear | Ultra-clear option available | Ultra-clear standard |
| Cost per court | Most economical | Moderate premium | Highest investment |
| Typical application | Clubs, training centres | Premium clubs, tournaments | Show courts, flagship venues |
2.1 When to Choose Panoramic Padel Court Glass
| Scenario | Recommendation | Reason |
|---|
| Premium padel club (4–8 courts) | Panoramic recommended | Differentiates from competitors |
| Tournament / broadcast venue | Panoramic strongly recommended | Better spectator sightlines, TV-friendly |
| Flagship / show court | Panoramic or Super Panoramic | Depends on budget and design ambition |
| Club upgrading from standard | Panoramic ideal upgrade path | Visible improvement without full super panoramic investment |
| Architecturally designed venue | Panoramic + ultra-clear | Design expectations demand premium appearance |
3. Glass Configurations for Panoramic Padel Court Glass
3.1 Glass Types
| Glass Type | Typical Use | Key Advantage | Link to Product |
|---|
| 12mm Clear Tempered Glass | Premium panoramic courts | Increased strength, reduced deflection | View Tempered Glass → |
| 12mm Ultra-Clear / Low-Iron Tempered Glass | Flagship panoramic courts | Water-white clarity, no green tint | View Ultra Clear Glass → |
| 12mm Heat-Soak Tested Tempered Glass | Quality-assured installations | Reduced breakage risk | View Tempered Glass → |
| 12mm Ultra-Clear + HST | Maximum specification | Clarity + reliability | View Ultra Clear Glass → |
3.2 Glass Build-Up Options
| Build-Up | Total Thickness | Typical Application | Weight per m² |
|---|
| 12mm Tempered | 12 mm | Standard panoramic courts | 30 kg |
| 12mm Ultra-Clear Tempered | 12 mm | Premium panoramic courts | 30 kg |
| 6mm + 1.52PVB + 6mm Laminated | 13.52 mm | Enhanced safety panoramic | 35 kg |
| 8mm + 1.52PVB + 8mm Laminated | 17.52 mm | Maximum safety panoramic | 45 kg |
3.3 Panel Size Considerations
| Panel Dimension | Comparison to Standard | Benefit |
|---|
| 2500 × 2995 mm | +25% wider than standard | One less vertical joint per wall section |
| 3000 × 2995 mm | +50% wider than standard | Significantly fewer joints |
| 3500 × 2995 mm | +75% wider than standard | Maximum transparency for panoramic |
| Custom dimensions | Tailored to court design | Perfect integration with frame system |
4. Glass Thickness for Panoramic Padel Court Glass
4.1 Thickness Recommendations
| Court Type | Recommended Thickness | Notes |
|---|
| Premium panoramic club court | 12mm tempered | Standard for panoramic systems |
| Flagship panoramic show court | 12mm ultra-clear tempered | Maximum optical quality |
| Broadcast / tournament court | 12mm tempered or ultra-clear | Professional-grade specification |
| Outdoor panoramic court | 12mm tempered (HST recommended) | Additional environmental resilience |
4.2 Why 12mm is the Panoramic Standard
| Factor | Why 12mm is Preferred | Comparison to 10mm |
|---|
| Panel size | Larger panels require greater rigidity | 10mm would deflect more at panoramic widths |
| Impact resistance | Higher ball impact energy at larger spans | 12mm provides greater safety margin |
| Frame compatibility | Panoramic frames designed for 12mm | 10mm may not match frame specifications |
| Industry expectation | Panoramic positioned as premium tier | 12mm reinforces premium positioning |
5. Fixing & Installation Methods for Panoramic Padel Court Glass
5.1 Fixing Configuration
| Component | Description | Glass Requirement |
|---|
| Countersunk holes | Precision-drilled conical holes for bolt fixing | 8–12 holes per panel (more for larger panels) |
| Hole diameter | Typically 12–18mm (countersunk) | CNC drilled before tempering |
| Hole position | Pattern matched to panoramic frame design | Customer drawing or engineered pattern |
| Edge finish | Flat polished – maximum clarity | Especially important for panoramic (visible edges) |
5.2 Installation Considerations for Larger Panels
| Aspect | Standard Panels (1995mm) | Panoramic Panels (2500–3500mm) |
|---|
| Panel weight (12mm, 2995mm height) | ~179 kg | ~225–315 kg |
| Handling method | 2–3 persons or suction lifter | Mechanical lift required |
| Transport | Standard pallet / crate | Oversized crate – check container fit |
| On-site manoeuvring | Standard access | Wider access path required |
6. Glass Processing for Panoramic Padel Court Glass
6.1 Standard Processing Services
| Processing Service | Description | Panoramic Court Application |
|---|
| Precision cutting | Cut to exact dimensions (±0.5mm) | All panoramic panels |
| CNC drilling | Computer-controlled hole drilling | Countersunk holes for frame fixing |
| Countersinking | Conical recess for flush bolt heads | Standard for panoramic glass |
| Edge polishing | Smooth, transparent polished edges | Mandatory for panoramic – edges are more visible |
| Arris beveling | Slight edge chamfer for safe handling | All panels |
6.2 Why Edge Polish Matters More for Panoramic
| Aspect | Standard Court | Panoramic Court |
|---|
| Edge visibility | Partially concealed by frame | More exposed – larger panels reveal more edge |
| Visual expectation | Functional | Premium – edges must be flawless |
| Ultra-clear glass benefit | Noticeable | Dramatic – crystal-clear polished edges |
Key insight: The transition from standard to panoramic means glass edges become more prominent. Polished edges – especially with ultra-clear glass – transform from a detail into a defining visual feature of the court.
7. Safety & Standards
7.1 Applicable Standards
| Standard | Scope | Relevance to Panoramic Padel Glass |
|---|
| EN 12150 | Thermally toughened soda lime silicate safety glass | Primary manufacturing standard |
| EN 12600 | Pendulum impact test for glass | Impact resistance verification |
| CE Marking | European conformity | Required for EU market |
| ISO 9001 | Quality management systems | Manufacturing quality assurance |
7.2 Compliance Statement
Our panoramic padel court glass is designed and manufactured to meet applicable court and safety requirements, including EN 12150 for thermally toughened safety glass and EN 12600 for impact performance. We recommend verifying specific compliance requirements with your local padel federation or regulatory authority for your target market.
7.3 Engineering Assessment for Larger Panels
| Factor | Why It Matters | Our Approach |
|---|
| Wind load (outdoor courts) | Larger panels experience greater forces | Engineering calculation per panel |
| Impact load | Ball impact at larger spans | Verified against EN 12600 |
| Deflection | Wider panels deflect more under load | Thickness and fixing pattern engineered accordingly |
8. Custom Sizes for Panoramic Padel Court Glass
8.1 Size Range
| Parameter | Standard Capability | Jumbo Glass Capability |
|---|
| Max Panel Height | 2995 mm | ≤3300 mm |
| Max Panel Width | 3500 mm | ≤12000 mm |
| Max Panel Area | ~10.5 m² | ~40 m² |
| Glass Thickness | 12 mm | 8–44.5 mm (multi-ply) |
8.2 Custom Size Considerations
| Factor | Consideration | Recommendation |
|---|
| Panel width | Wider = fewer joints, more transparency | 2500–3500mm typical for panoramic |
| Panel height | Standard 2995mm or custom | Custom heights for non-standard courts |
| Corner integration | Transition from panoramic to standard panels | Provide full court elevation drawings |
| Door placement | Door panel must match panoramic aesthetic | Integrated door design |
9. Door Panels & Special Sections
9.1 Panoramic Door Configurations
| Door Type | Description | Glass Requirement |
|---|
| Panoramic hinged door | Full-height glass door matching panoramic panels | 12mm tempered or ultra-clear |
| Sliding door | Glass panel on overhead track | 12mm tempered |
| Double door | Two-leaf configuration for wider access | 12mm tempered per leaf |
9.2 Special Panel Configurations
| Panel Type | Application | Processing Required |
|---|
| Corner transition panels | Connecting panoramic to standard sections | Custom dimensions |
| Return panels | Angled court configurations | Custom angle cuts |
| Service hatches | Equipment access | Cut-out with removable section |
10. Large-Format Panoramic Padel Court Glass
10.1 Jumbo Glass Advantage
| Benefit | Standard Panoramic Panels | Large-Format Panoramic Panels |
|---|
| Max panel width | Up to 3500 mm | Up to 12000 mm |
| Number of vertical joints | Few | Minimal – dramatically fewer joints |
| Visual appearance | Premium | Transformative – near-seamless glass surface |
| Installation time | Standard | Faster – far fewer panels |
10.2 Applications
| Application | Panel Size Example | Benefit |
|---|
| Flagship padel club show court | 5000 × 2995 mm | Near-seamless panoramic wall |
| Broadcast tournament court | 7000 × 2995 mm | Uninterrupted camera sightlines |
| Architectural landmark venue | 10000 × 2995 mm | Maximum wow factor |
Note: Large-format panoramic panels require comprehensive engineering assessment for handling, transportation and installation. Contact our engineering team for project-specific recommendations.
11. Related Products
Each padel court glass configuration links directly to our product pages for detailed specifications.
| Padel Court Requirement | Recommended Product | Link |
|---|
| Panoramic 12mm tempered glass | Jumbo Tempered Glass (12mm) | View Product → |
| Panoramic ultra-clear glass | Ultra Clear Tempered Glass (12mm) | View Product → |
| Panoramic large-format panels | Jumbo Glass | View Product → |
| Standard padel court glass | Jumbo Tempered Glass (10mm) | View Product → |
12. Project References – Panoramic Padel Court Glass
| Project | Location | Solution | Panels | Notable Feature |
|---|
| Premium Padel Club – Dubai Marina | UAE | 12mm ultra-clear tempered, 3000×2995mm | 32 panels | Water-white clarity, panoramic viewing |
| Championship Venue – Madrid | Spain | 12mm tempered, 2800×2995mm | 28 panels | Broadcast-ready spectator sightlines |
| Flagship Club – Doha | Qatar | 12mm ultra-clear + HST, 3200×2995mm | 24 panels | Heat-soak tested for desert climate |
| Luxury Resort – Marbella | Spain | 12mm tempered, panoramic configuration | 20 panels | Open-air panoramic courts |
| Premier Academy – London | UK | 12mm tempered, 2600×2995mm | 36 panels | Multi-court panoramic facility |
13. Frequently Asked Questions – Panoramic Padel Court Glass
Q1: What is panoramic padel court glass?
Panoramic padel court glass uses larger-format tempered safety glass panels – typically 2500–3500mm wide compared to the standard 1995mm – to create a more open playing environment with fewer vertical frame obstructions and enhanced spectator sightlines.
Q2: What thickness of glass is used for panoramic padel courts?
12mm tempered glass is the standard specification for panoramic padel court glass. The larger panel dimensions require the additional rigidity and strength that 12mm provides.
Q3: What is the difference between standard and panoramic padel court glass?
The primary difference is panel size. Standard panels are 1995×2995mm, while panoramic panels are wider – typically 2500–3500mm. This results in fewer vertical joints, larger transparent areas, and significantly improved spectator visibility.
Q4: Is ultra-clear glass recommended for panoramic courts?
Strongly recommended. The larger glass panels in panoramic courts make the green tint of standard clear glass more noticeable. Ultra-clear (low-iron) glass eliminates this tint, delivering water-white clarity that enhances the premium appearance of panoramic courts.
Q5: Can panoramic glass be used with existing court frame systems?
It depends on the frame design. Panoramic glass requires frame systems designed for larger panel spans. We recommend consulting with your frame supplier to confirm compatibility before ordering panoramic-sized panels.
Q6: How many holes are required for panoramic padel glass?
Panoramic panels typically require 8–12 countersunk holes per panel, depending on panel dimensions and frame design. The exact pattern should be confirmed with your frame supplier or submitted as a drawing.
Q7: Are panoramic panels heavier than standard panels?
Yes. A 3000×2995mm 12mm panel weighs approximately 270 kg compared to ~179 kg for a standard 1995×2995mm panel. Mechanical lifting equipment is required for installation.
Q8: How long does it take to produce panoramic padel court glass?
Panoramic 12mm tempered panels: 4–5 weeks. With ultra-clear glass: 5–6 weeks. With heat-soak testing: 5–6 weeks. Large-format panoramic panels: 6–8 weeks.
Q9: Can panoramic glass be used for outdoor padel courts?
Yes. 12mm tempered glass is suitable for outdoor panoramic courts. Heat-soak testing is recommended for outdoor installations, particularly in hot climates where thermal stress is higher.
Q10: How do I request a quotation for panoramic padel court glass?
Please provide:
- Panel dimensions (width × height)
- Number of panels
- Glass type (clear tempered / ultra-clear / HST)
- Hole pattern (drawing or specification)
- Court location (indoor / outdoor)
- Destination port
- Target delivery date
14. Request Panoramic Padel Court Glass Quote
Submit your project requirements for a competitive FOB quotation.
Required Information:
- Project type: Premium club / Tournament venue / Flagship court / Resort / Other
- Court configuration: Panoramic / Custom panoramic
- Number of courts: ___ courts
- Panel dimensions: Width × Height per panel type
- Total number of panels
- Glass type: Clear Tempered / Ultra-Clear Tempered / Heat-Soak Tested / Ultra-Clear + HST
- Glass thickness: 12mm
- Panel width preference: 2500mm / 2800mm / 3000mm / 3200mm / 3500mm / Custom
- Hole pattern: Provide drawing or specify standard pattern
- Hole quantity per panel: 8 / 10 / 12 / Custom
- Edge finish: Polished (recommended for panoramic)
- Door panels required? Yes / No (if yes: hinged / sliding)
- Court location: Indoor / Outdoor
- Special requirements: Ultra-clear glass / Heat-soak test / Custom dimensions
- Destination port
- Target delivery date
- 📧 Email your specification to: tomron1688@gmail.com
- 🌐 Or upload drawings at: www.jumbotemperedglass.com
- Response time: Preliminary feasibility within 24 hours; detailed quotation with engineering assessment for larger panels within 48 hours.
15. Related Pages (Internal Link Cluster)
Within Padel Court Glass Section
Other Applications
