Laminated Storefront Glass
PVB-Interlayer Safety Glass for Retail Storefronts, Shop Windows & Commercial Entrances – Post-Breakage Retention, Impact Resistance, Fall-Safe Security

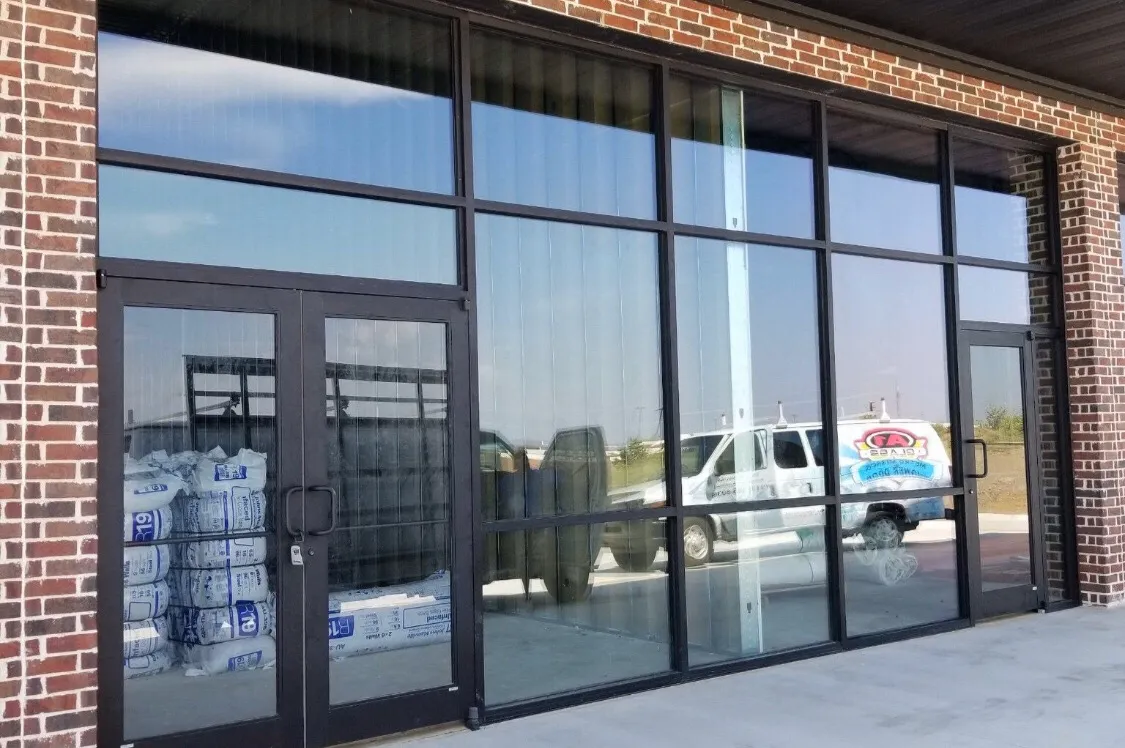

Laminated storefront glass consists of two or more glass plies permanently bonded together with one or more polyvinyl butyral (PVB) interlayers under heat and pressure in an autoclave. Unlike monolithic tempered glass which breaks into small fragments, laminated glass remains intact when broken – the PVB interlayer holds the glass fragments in place, preventing fall-through and maintaining a barrier against intrusion.
For glazing contractors, security consultants, retail developers, architects, facility managers, and procurement managers supplying the European, North American, Australian and global commercial construction market, laminated storefront glass represents the enhanced safety specification for retail glazing – delivering post-breakage retention, impact resistance and security performance that monolithic tempered glass alone cannot provide.
💡 Why laminated glass for storefronts? While tempered glass satisfies basic building code requirements for safety glazing, certain retail applications demand more: (1) ground-floor storefronts in high-crime areas where smash-and-grab burglary is a risk, (2) storefronts adjacent to pedestrian walkways where falling glass from a broken panel could injure passers-by, (3) shopping centre atriums where glass extends to upper levels and fall-through prevention is critical, (4) retail entrances with overhead glazing where post-breakage retention is mandated by code, and (5) luxury retail where uninterrupted operation after minor impact is valued. Laminated glass addresses all these scenarios by keeping the glass in place even after breakage.
1. Laminated Storefront Glass Solutions
Laminated storefront glass is available in multiple configurations to suit different security levels, safety requirements and aesthetic preferences.
1.1 Standard Laminated Storefront Glass
- Description: Two-ply laminated glass with standard PVB interlayer
- Available thicknesses: 6.38mm, 8.38mm, 10.38mm, 12.38mm
- Typical application: General retail storefronts requiring post-breakage retention
- Key benefit: Glass stays in place when broken – fall-safe
1.2 Laminated Storefront Glass with Security PVB
- Description: Two or more plies with multiple PVB interlayers for enhanced resistance
- Available thicknesses: 8.76mm+, custom multi-layer
- Typical application: High-security retail, jewellery stores, flagship urban storefronts
- Key benefit: Delayed penetration – smash-and-grab resistant
1.3 Low-Iron Laminated Storefront Glass
- Description: Low-iron glass plies with clear PVB interlayer
- Available thicknesses: 8.38mm, 10.38mm, 12.38mm
- Typical application: Premium retail, luxury brands, art galleries
- Key benefit: Water-white clarity for true merchandise colour rendering
1.4 Tinted Laminated Storefront Glass
- Description: Body-tinted glass plies with standard PVB interlayer
- Available colours: Bronze, Grey, Green, Custom
- Typical application: Solar control, branded façades, privacy
- Key benefit: Reduced solar heat gain + post-breakage retention
1.5 Laminated Storefront Glass with Decorative PVB
- Description: Coloured, patterned or frosted PVB interlayer
- Typical application: Brand identity, privacy zones, decorative elements
- Key benefit: Integrated design + safety in one panel
2. Laminated vs Tempered Storefront Glass
This comparison helps procurement managers decide when laminated glass is the better specification versus monolithic tempered
| Feature | Laminated Storefront Glass | Tempered Storefront Glass |
|---|
| Post-breakage retention | ✅ Yes – glass stays in place | ❌ No – breaks into fragments |
| Fall-through prevention | ✅ Yes – PVB holds fragments | ❌ No – fragments fall |
| Impact resistance | ✅ High (especially multi-ply) | ✅ High |
| Smash-and-grab resistance | ✅ Enhanced (security PVB) | ❌ Limited – single penetration |
| Burglar resistance | ✅ Delayed entry | ❌ Immediate entry after break |
| Cutting/modification after fab | ❌ Cannot be modified | ❌ Cannot be modified |
| Optical clarity | Good (minimal interlayer haze) | Excellent |
| Weight | Heavier (2-ply) | Lighter (monolithic) |
| Cost | Higher | Moderate |
| Best for | Security-conscious retail, overhead glazing, fall-safe zones | Standard code-compliant storefronts |
2.1 When Laminated Is Preferred Over Tempered
| Application | Recommendation | Reasoning |
|---|
| Ground-floor storefront in high-crime area | Laminated (security PVB) | Smash-and-grab resistance |
| Overhead storefront glazing | Laminated (code requirement) | Fall-through prevention mandated |
| Storefront adjacent to public walkway | Laminated recommended | Falling glass hazard mitigation |
| Luxury retail (jewellery, watches) | Laminated (security) | Burglar deterrence + continued operation |
| Shopping centre atrium frontage | Laminated recommended | Public safety + code compliance |
| Standard high-street retail | Tempered sufficient | Cost-effective code compliance |
3. Laminated Glass Properties for Storefronts
3.1 Common Build-Ups
| Build-Up | Total Thickness | Plies | Interlayers | Typical Application |
|---|
| 3mm + 0.38PVB + 3mm | 6.38mm (1/4″) | 2 | 1 | Small shop windows, internal displays |
| 4mm + 0.38PVB + 4mm | 8.38mm (5/16″) | 2 | 1 | Standard retail storefronts |
| 5mm + 0.38PVB + 5mm | 10.38mm (3/8″) | 2 | 1 | Tall storefronts, wind-exposed locations |
| 6mm + 0.38PVB + 6mm | 12.38mm (1/2″) | 2 | 1 | Large-format storefronts, security |
| 5mm + 0.76PVB + 5mm | 10.78mm | 2 | 2 | Enhanced security (multi-layer PVB) |
| 6mm + 0.76PVB + 6mm + 0.76PVB + 6mm | 19.23mm | 3 | 2 | Maximum security specification |
3.2 Mechanical Properties
| Property | 8.38mm Laminated | 10.38mm Laminated | 12.38mm Laminated |
|---|
| Weight per m² | ~20 kg | ~25 kg | ~30 kg |
| Impact resistance | Good | Good | Good |
| Post-breakage retention | ✅ Yes | ✅ Yes | ✅ Yes |
| Burglar resistance | Moderate | Good | Good |
| Sound reduction | ~32 dB | ~34 dB | ~36 dB |
3.3 PVB Interlayer Options
| Interlayer Type | Properties | Storefront Application |
|---|
| Standard clear PVB | Excellent adhesion, optical clarity | General storefront applications |
| Security PVB (multi-layer) | Increased tear resistance | Smash-and-grab resistant storefronts |
| Acoustic PVB | Enhanced sound dampening | Street-facing storefronts in noisy areas |
| UV-Control PVB | >99% UV filtration | Retail with UV-sensitive merchandise |
| Coloured/white PVB | Decorative effect, privacy | Brand identity, backlit signage |
4. Glass Thickness for Laminated Storefront Glass
4.1 Thickness Recommendations by Application
| Application | Recommended Build-Up | Notes |
|---|
| Small boutique shop window | 6.38mm (3+0.38+3) | Limited panel size, lower traffic |
| Standard retail storefront | 8.38mm (4+0.38+4) | Most common laminated specification |
| Tall storefront (>2500mm height) | 10.38mm (5+0.38+5) | Greater wind load capacity |
| Large-format flagship store | 12.38mm (6+0.38+6) | Premium appearance + security |
| High-security storefront | 10.38mm (5+0.76+5) or multi-layer | Enhanced burglar resistance |
| Overhead storefront glazing | 8.38mm or 10.38mm | Code-mandated fall-safe |
4.2 Thickness by Security Level
| Security Level | Recommended Build-Up | Expected Penetration Time |
|---|
| Standard safety | 8.38mm (4+0.38+4) | Post-breakage retention only |
| Enhanced security | 10.38mm (5+0.76+5) | Delayed penetration |
| High security | 12.38mm (6+1.52+6) | Significant delay |
| Maximum security | Multi-layer (3+ plies) | Extended delay |
Note: These are indicative guidelines. Final glass construction depends on panel dimensions, security requirements, wind load and applicable building codes. Engineering assessment is recommended for large-format or security-critical storefronts.
5. Processing & Fabrication for Laminated Storefront Glass
5.1 Standard Processing Services
| Processing Service | Description | Laminated Storefront Application |
|---|
| Precision cutting | Cut to exact dimensions (±0.5mm) | All storefront panels |
| CNC drilling | Computer-controlled hole drilling | Hardware mounting points |
| Countersinking | Conical recess for flush hardware | Frameless storefront doors |
| Notching | Corner or edge cut-outs | Frame integration |
| Edge polishing | Smooth, transparent polished edges | Recommended for visible edges |
| Arris beveling | Slight edge chamfer for safe handling | All panels |
| Radius corners | Curved corners for safety and appearance | All panels |
6.2 Manufacturing Sequence for Laminated Storefront Glass
Step 1: Glass Cutting
→ Cut both plies to final dimensions
↓
Step 2: Edge Processing
→ Grinding, polishing (before lamination)
↓
Step 3: Drilling & Notching (if required)
→ CNC machining on each ply
↓
Step 4: Washing
→ Thorough cleaning for lamination
↓
Step 5: PVB Interlayer Placement
→ Interlayer positioned between cleaned plies
↓
Step 6: Pre-Pressing (De-airing)
→ Roller or vacuum bag removes air pockets
↓
Step 7: Autoclave Cycle
→ Heat (~140°C) + Pressure (~12 bar) bonding
↓
Step 8: Inspection
→ Visual check / Ultrasonic scan / Dimensional verification
↓
Step 9: Packaging
→ Protective crating for transport
6. Size & Shape Capabilities
6.1 Standard Size Range
| Parameter | Standard Capability | Jumbo Glass Capability |
|---|
| Max Panel Length | 3000 mm (118″) | ≤6000 mm |
| Max Panel Width | 1500 mm (59″) | ≤3300 mm |
| Max Panel Area | ~4.5 m² | ~20 m² |
| Glass Thickness | 6.38mm–19.23mm | 8–44.5 mm (multi-ply) |
6.2 Shape Capabilities
| Shape | Capability | Typical Application |
|---|
| Rectangle | ✅ Standard | Standard storefront panels |
| Square | ✅ Standard | Individual display windows |
| Trapezoid | ✅ Available | Angled storefront sections |
| Custom polygon | ✅ Available | Irregular storefront layouts |
| Radius edge | ✅ Available | Curved display fronts |
7. Safety & Standards
7.1 Applicable Standards by Market
| Standard | Market | Scope |
|---|
| EN 14449 | Europe / UK | Primary standard for laminated safety glass |
| EN 12600 | Europe / UK | Pendulum impact test classification |
| EN 356 | Europe / UK | Security glazing – manual attack resistance |
| ASTM C1172 | USA | Standard specification for laminated architectural glass |
| ANSI Z97.1 | USA | Safety glazing materials used in buildings |
| CPSC 16 CFR 1201 | USA | Consumer product safety – architectural glazing |
| AS/NZS 2208 | Australia / NZ | Safety glazing materials |
| UL 972 | USA | Burglary-resisting glazing materials |
7.2 Classification Systems
| Standard | Classifications Relevant to Storefronts |
|---|
| EN 12600 | 1B1 (highest impact safety) |
| EN 356 | P1A–P5A (manual attack resistance) |
| ANSI Z97.1 | Category I / Category II (impact safety) |
7.3 Compliance Statement
Our laminated storefront glass panels are manufactured to meet applicable safety and building code requirements for your target market, including EN 14449 and EN 12600 for Europe, ASTM C1172 and ANSI Z97.1 for North America, and AS/NZS 2208 for Australia and New Zealand. Security-rated panels (EN 356) are available on request. Compliance verification should be confirmed with local building authorities for each project.
8. Applications – Laminated Storefront Glass Projects
8.1 Storefront Types Using Laminated Glass
| Application | Description | Recommended Build-Up |
|---|
| High-security retail storefront | Jewellery, electronics, luxury goods | 10.38mm (5+0.76+5) or multi-layer |
| Overhead storefront glazing | Canopy, awning, transom lights | 8.38mm or 10.38mm laminated |
| Shopping centre atrium frontage | Multi-level retail frontage | 10.38mm or 12.38mm laminated |
| Street-facing restaurant frontage | Ground-floor dining view | 8.38mm laminated |
| Bank / financial institution | Secure public-facing glazing | Security laminated (EN 356 rated) |
| Art gallery / museum shop | Premium display with UV protection | Low-iron laminated with UV PVB |
8.2 Application Environments
| Environment | Recommendation | Notes |
|---|
| High-crime urban area | Laminated (security PVB) | Smash-and-grab deterrence |
| Overhead glazing (any location) | Laminated (code required) | Fall-through prevention |
| Adjacent to public walkway | Laminated recommended | Falling glass hazard mitigation |
| Street-facing (ground floor) | Tempered or laminated | Depends on security assessment |
| Shopping centre (internal) | Tempered sufficient | Lower security risk |
9. Product Selection – Choosing Your Laminated Storefront Glass
9.1 Glass Selection Matrix
| Build-Up | Post-Breakage Retention | Security Level | Impact Resistance | Cost Level | Best For |
|---|
| 6.38mm (3+0.38+3) | ✅ Yes | Standard | Good | Moderate | Small displays |
| 8.38mm (4+0.38+4) | ✅ Yes | Standard | Good | Moderate | Standard storefronts |
| 10.38mm (5+0.38+5) | ✅ Yes | Enhanced | Good | Higher | Tall/security storefronts |
| 10.38mm (5+0.76+5) | ✅ Yes | High | Good | Higher | Enhanced security |
| 12.38mm (6+0.38+6) | ✅ Yes | Enhanced | Good | Higher | Large-format premium |
| Multi-layer (3+ plies) | ✅ Yes | Maximum | Excellent | Highest | Maximum security |
9.2 Decision Flow for Procurement Managers
Your Storefront Project Type?
↓
Standard Retail / High-Security / Overhead Glazing / Premium Brand
↓
Is Post-Breakage Retention Required?
↓
YES → Laminated Glass Required
NO → Consider Tempered Storefront Glass
↓
Is Security a Concern?
↓
YES → Select Security PVB (multi-layer interlayer)
NO → Standard PVB Sufficient
↓
What is the Panel Height?
↓
<2000mm / 2000-2500mm / 2500-3000mm / >3000mm
↓
Select Glass Type:
↓
Clear / Low-Iron / Tinted
↓
Select Build-Up Based on Height + Security:
↓
6.38mm / 8.38mm / 10.38mm / 12.38mm / Multi-Layer
↓
Specify Processing:
↓
Drilling / Notching / Edge Finish / Radius Corners
↓
VERIFY DIMENSIONS BEFORE PRODUCTION (cannot modify after lamination)
↓
SUBMIT STOREFRONT SPECIFICATIONS FOR QUOTATION
10. Frequently Asked Questions – Laminated Storefront Glass
Q1: What is laminated storefront glass?
Laminated storefront glass consists of two or more glass plies bonded with a PVB interlayer. When broken, the glass fragments adhere to the interlayer, preventing fall-through and maintaining a barrier.
Q2: How is laminated different from tempered storefront glass?
Tempered glass breaks into small fragments when impacted. Laminated glass remains intact – the PVB interlayer holds the broken pieces in place. Laminated provides post-breakage retention; tempered does not.
Q3: When should I specify laminated over tempered for storefronts?
Choose laminated when: (1) post-breakage retention is required (overhead glazing), (2) smash-and-grab security is a concern, (3) the storefront is adjacent to public walkways, or (4) building code mandates laminated glass.
Q4: What thickness of laminated glass is used for storefronts?
Common thicknesses range from 6.38mm (3+0.38+3) for small displays to 12.38mm (6+0.38+6) for large-format storefronts. Security applications may use multi-layer constructions up to 19mm+.
Q5: Is laminated storefront glass burglar-resistant?
Yes – with appropriate specification. Standard laminated glass provides post-breakage retention. Security-grade laminated glass with multi-layer PVB (EN 356 rated) provides significant resistance to manual attack.
Q6: Can laminated storefront glass be combined with low-iron glass?
Yes. Low-iron glass plies can be laminated with clear PVB for water-white clarity – ideal for luxury retail where merchandise colour rendering is critical.
Q7: Can laminated storefront glass be tinted?
Yes. Body-tinted glass plies (bronze, grey, green) can be laminated with standard PVB for solar control combined with post-breakage retention.
Q8: What is the maximum size for laminated storefront glass?
With our jumbo glass capability, we can manufacture laminated panels up to 6000mm × 3300mm (~20m²), depending on thickness and construction.
Q9: How long does it take to produce laminated storefront glass?
Standard laminated panels: 4–6 weeks. Security-grade or multi-layer panels: 5–7 weeks. Custom-sized panels: 5–7 weeks.
Q10: How do I request a quotation for laminated storefront glass?
Please provide: panel dimensions, quantity, glass type (clear/low-iron/tinted), build-up thickness, security requirement, processing requirements (drilling, notching, edge finish), applicable standard, and target delivery date.
11. Request Laminated Storefront Glass Quote
Submit your storefront project specifications for a competitive FOB quotation.
Required Information:
- Customer type: Glazing Contractor / Security Consultant / Retail Developer / Architect / Construction Firm / Other
- Project type: Retail Shop / High-Security Storefront / Overhead Glazing / Shopping Centre / Bank / Other
- Number of panels: ___
- Panel dimensions: Height × Width × Thickness (per panel or typical)
- Glass type: Clear / Low-Iron / Tinted / Unsure
- Tint colour (if applicable): Bronze / Grey / Green / Custom
- Build-up: 6.38mm / 8.38mm / 10.38mm / 12.38mm / Multi-Layer / Custom / Unsure
- PVB interlayer: Standard Clear / Security (multi-layer) / Acoustic / UV-Control / Coloured / Unsure
- Security rating required: Standard Safety / Enhanced Security / High Security (EN 356) / Unsure
- Panel height: ___ mm
- Drilling required: Yes / No (if yes, provide hole positions)
- Notching required: Yes / No (if yes, provide notch details)
- Edge finish: Polished / Beveled / Arrissed
- Radius corners: Yes / No
- Applicable standard: EN / ASTM / AS/NZS / Other / Unsure
- Upload drawing: PDF / DWG / DXF
- Quantity per order: ___ panels
- Destination port
- Target delivery date
- 📧 Email your specification to: tomron1688@gmail.com
- 🌐 Upload drawings at: www.jumbotemperedglass.com
- Response time: Preliminary feasibility assessment within 24 hours; detailed quotation within 48 hours.
12. Related Pages (Internal Link Cluster)
Within STOREFRONT & RETAIL GLASS Section
Product Pages (Cross‑Links)
Other Applications
