Laminated Padel Court Glass
Laminated Safety Glass for High-Protection and Specialty Padel Court Applications – Post-Breakage Retention, Acoustic Performance, Enhanced Safety
Laminated padel court glass uses two or more glass plies bonded together with a polyvinyl butyral (PVB) interlayer to create a composite safety glass panel. Unlike tempered glass which shatters into fragments upon breakage, laminated glass is designed to remain intact – the PVB interlayer holds the fragments in place, providing post-breakage retention that prevents fall-through and maintains barrier integrity even after impact.
For padel court manufacturers, sports facility developers, and procurement managers supplying premium and specialty padel court projects where enhanced safety, acoustic performance, or UV protection is required, laminated padel court glass represents the enhanced safety specification – offering capabilities beyond standard tempered glass while maintaining the optical clarity and dimensional precision required for regulation-compliant court construction.
💡 Why laminated glass matters for padel courts: While tempered glass is the industry standard for the vast majority of padel court installations, certain applications demand additional safety characteristics that only laminated glass can provide. These include courts in high-traffic public areas, courts adjacent to pedestrian walkways, courts in schools or community facilities where additional safety margins are specified, and premium installations where post-breakage retention is a design requirement. Laminated glass is not a replacement for tempered glass in padel – it is a complementary specification for projects where the risk profile demands enhanced protection.
1. Laminated Padel Court Glass Solutions
Laminated padel court glass encompasses configurations designed for enhanced safety, acoustic performance, and specialty applications.
1.1 Standard Laminated Glass for Padel Courts
- Description: 6mm + 1.52PVB + 6mm laminated safety glass
- Total thickness: 13.52 mm
- Typical application: Enhanced safety courts, public access areas
- Key benefit: Post-breakage retention – glass stays in place if broken
1.2 Heavy-Duty Laminated Glass for Padel Courts
- Description: 8mm + 1.52PVB + 8mm laminated safety glass
- Total thickness: 17.52 mm
- Typical application: High-traffic facilities, school/university courts
- Key benefit: Greater impact resistance and post-breakage security
1.3 Laminated-Tempered Glass for Padel Courts
- Description: Two tempered glass plies bonded with PVB interlayer
- Total thickness: Variable (e.g., 6T + 1.52PVB + 6T = 13.52mm)
- Typical application: Maximum specification – combines strength of tempered with retention of laminated
- Key benefit: 4–5× strength of annealed + post-breakage retention
1.4 Ultra-Clear Laminated Glass for Padel Courts
- Description: Low-iron laminated glass for premium optical clarity
- Total thickness: Variable
- Typical application: Premium courts where clarity and safety are equally important
- Key benefit: Water-white transparency + enhanced safety characteristics
2. Laminated vs Tempered Glass for Padel Courts
This comparison helps procurement managers understand when laminated glass is the appropriate choice versus standard tempered glass.
| Feature | Tempered Padel Court Glass | Laminated Padel Court Glass |
|---|
| Strength | 4–5× annealed glass | Similar to annealed (unless plies are tempered) |
| Breakage pattern | Small, harmless fragments | Fragments adhere to PVB interlayer |
| Post-breakage retention | None – glass falls away | Yes – interlayer holds fragments |
| Weight | Lighter | Heavier (two plies) |
| Cost | Lower – standard for padel | Higher (+40–60%) |
| Acoustic performance | Standard | Better – PVB dampens sound transmission |
| UV protection | Minimal | Good – PVB blocks >99% UV |
| Processing complexity | Simpler | More complex – two plies to align |
| Typical padel application | Standard for all court types | Specialty / enhanced safety |
2.1 When to Choose Laminated Glass for Padel Courts
| Scenario | Recommendation | Reason |
|---|
| Standard commercial padel court | Tempered glass | Cost-effective, proven, compliant |
| Public / high-traffic facility | Laminated glass | Post-breakage retention for public safety |
| School / university court | Laminated glass | Enhanced safety margin for young users |
| Court adjacent to walkway | Laminated glass | Prevents fall-through onto pedestrian area |
| Premium flagship court | Laminated-tempered | Maximum specification – no compromises |
| Acoustic-sensitive installation | Laminated glass | PVB interlayer reduces noise transmission |
| Outdoor court with UV concern | Laminated glass | Blocks >99% UV radiation |
3. Glass Configurations for Laminated Padel Court Glass
3.1 Laminated Glass Types
| Glass Type | Total Thickness | Typical Use | Key Advantage | Link to Product |
|---|
| 6+1.52PVB+6mm Laminated | 13.52 mm | Standard enhanced safety | Post-breakage retention | View Laminated Glass → |
| 8+1.52PVB+8mm Laminated | 17.52 mm | Heavy-duty safety | Greater impact resistance | View Laminated Glass → |
| 6T+1.52PVB+6T Laminated-Tempered | 13.52 mm | Maximum specification | Strength + retention | View Laminated Glass → |
| 10+1.52PVB+10mm Laminated | 21.52 mm | Ultimate specification | Maximum thickness + retention | View Laminated Glass → |
3.2 Laminated Glass Properties
| Property | 6+1.52+6mm Laminated | 8+1.52+8mm Laminated | 6T+1.52+6T Laminated-Tempered |
|---|
| Total thickness | 13.52 mm | 17.52 mm | 13.52 mm |
| Weight per m² | ~34 kg | ~43 kg | ~34 kg |
| Post-breakage retention | ✅ Yes | ✅ Yes | ✅ Yes |
| Strength | Annealed baseline | Annealed baseline | 4–5× annealed (tempered plies) |
| Acoustic reduction | ~30 dB | ~32 dB | ~30 dB |
| UV protection | >99% | >99% | >99% |
3.3 Standard Panel Dimensions
| Panel Type | Standard Size | Notes |
|---|
| Wall panel | 1995 × 2995 mm | Same as standard tempered |
| Corner panel | 1995 × 1995 mm | Square format for corners |
| Panoramic panel | Up to 3500 × 2995 mm | For panoramic court configurations |
| Custom dimensions | As required | Available for non-standard courts |
4. Glass Thickness for Laminated Padel Court Glass
4.1 Thickness Recommendations
| Application | Recommended Laminated Build-Up | Total Thickness | Notes |
|---|
| Standard enhanced safety court | 6 + 1.52PVB + 6mm | 13.52 mm | Baseline laminated specification |
| High-traffic / public facility | 8 + 1.52PVB + 8mm | 17.52 mm | Greater impact resistance |
| Premium flagship court | 6T + 1.52PVB + 6T | 13.52 mm | Tempered plies for added strength |
| Maximum specification | 10 + 1.52PVB + 10mm | 21.52 mm | Ultimate thickness and retention |
4.2 Laminated vs Tempered Thickness Comparison
| Aspect | 10mm Tempered | 12mm Tempered | 13.52mm Laminated | 17.52mm Laminated |
|---|
| Weight per m² | 25 kg | 30 kg | ~34 kg | ~43 kg |
| Relative strength | 4–5× annealed | 4–5× annealed | Annealed baseline | Annealed baseline |
| Post-breakage retention | No | No | Yes | Yes |
| Panel weight (1995×2995mm) | ~149 kg | ~179 kg | ~204 kg | ~258 kg |
5. Fixing & Installation Methods for Laminated Padel Court Glass
5.1 Fixing Configuration
| Component | Description | Glass Requirement |
|---|
| Countersunk holes | Precision-drilled conical holes for bolt fixing | Drilled through both plies – alignment critical |
| Hole diameter | Typically 12–18mm (countersunk) | CNC drilled through laminated assembly |
| Hole position | Pattern matched to court frame design | Customer drawing or engineered pattern |
| Edge finish | Polished edges | Both plies polished simultaneously |
5.2 Critical Processing Differences: Laminated vs Tempered
| Processing Aspect | Tempered Glass | Laminated Glass |
|---|
| Hole drilling | Before tempering (single ply) | After lamination (through both plies) |
| Drilling complexity | Standard CNC | More complex – two plies must align |
| Edge polishing | Single edge | Both plies polished as one unit |
| Handling weight | Lighter | Heavier – two plies |
6. Glass Processing for Laminated Padel Court Glass
6.1 Processing Services
| Processing Service | Description | Laminated Padel Application |
|---|
| Precision cutting | Cut to exact dimensions (±0.5mm) | Both plies cut before lamination |
| CNC drilling | Computer-controlled hole drilling | Through laminated assembly – alignment critical |
| Countersinking | Conical recess for flush bolt heads | Through both plies simultaneously |
| Edge polishing | Smooth, transparent polished edges | Both plies polished as one unit |
| Arris beveling | Slight edge chamfer for safe handling | Applied after lamination |
6.2 Quality Considerations for Laminated Padel Glass
| Factor | Why It Matters | Our Approach |
|---|
| PVB interlayer quality | Affects adhesion and longevity | Premium PVB from qualified suppliers |
| Bubble / delamination prevention | Visual defects in transparent areas | Controlled autoclave lamination process |
| Hole alignment | Both plies must align precisely | CNC drilling after lamination |
| Edge seal | Moisture ingress prevention | Proper edge sealing protocol |
7. Safety & Standards
7.1 Applicable Standards
| Standard | Scope | Relevance to Laminated Padel Glass |
|---|
| EN 14449 | Laminated glass – impact resistance | Primary standard for laminated safety glass |
| EN 12600 | Pendulum impact test | Impact resistance verification |
| EN 356 | Security glazing – manual attack resistance | Relevant for high-security applications |
| CE Marking | European conformity | Required for EU market |
| ISO 9001 | Quality management systems | Manufacturing quality assurance |
7.2 Compliance Statement
Our laminated padel court glass is manufactured to meet applicable court and safety requirements, including EN 14449 for laminated safety glass and EN 12600 for impact performance. Laminated-tempered configurations additionally comply with EN 12150 for the tempered plies. We recommend verifying specific compliance requirements with your local padel federation or regulatory authority for your target market.
7.3 Laminated Glass Safety Properties
| Property | Laminated Glass | Why It's Safe for Padel Courts |
|---|
| Post-breakage retention | PVB interlayer holds fragments | Prevents fall-through – barrier remains intact |
| Impact resistance | Meets EN 12600 requirements | Withstands ball impact |
| Penetration resistance | Harder to penetrate than single-ply glass | Enhanced security for public facilities |
| UV protection | >99% UV blocked | Protects players and spectators |
8. Custom Sizes for Laminated Padel Court Glass
8.1 Size Range
| Parameter | Standard Capability | Jumbo Glass Capability |
|---|
| Max Panel Height | 2995 mm | ≤3300 mm |
| Max Panel Width | 1995 mm (standard) | ≤12000 mm |
| Max Panel Area | ~6 m² | ~40 m² |
| Glass Thickness | 13.52–21.52 mm | 8–44.5 mm (multi-ply) |
8.2 Custom Size Considerations
| Factor | Consideration | Recommendation |
|---|
| Panel height | Standard 2995mm for wall panels | Custom heights available |
| Panel width | Up to 12000mm with Jumbo Glass | Depends on court configuration |
| Corner panels | 1995×1995mm standard | Custom dimensions for non-standard courts |
| Door openings | Cut-out required | Provide frame dimensions |
9. Door Panels & Special Sections
9.1 Laminated Glass Door Configurations
| Door Type | Description | Glass Requirement |
|---|
| Laminated hinged door | Glass door with hinge holes | 13.52mm or 17.52mm laminated |
| Laminated sliding door | Glass panel on track system | 13.52mm laminated |
| Laminated-tempered door | Maximum specification door | 6T+1.52PVB+6T laminated-tempered |
9.2 Special Panel Configurations
| Panel Type | Application | Processing Required |
|---|
| Corner panels | 90-degree court corners | Standard rectangular panels |
| Return panels | Angled court configurations | Custom angle cuts |
| Service hatches | Equipment access panels | Cut-out with removable section |
10. Large-Format Laminated Padel Court Glass
10.1 Jumbo Glass Advantage
| Benefit | Standard Laminated Panels | Large-Format Laminated Panels |
|---|
| Max panel width | 1995 mm | Up to 12000 mm |
| Number of vertical joints | Standard | Fewer – cleaner appearance |
| Visual appearance | Standard | Cleaner – uninterrupted surface |
| Installation time | Standard | Faster – fewer panels to install |
10.2 Applications
| Application | Panel Size Example | Benefit |
|---|

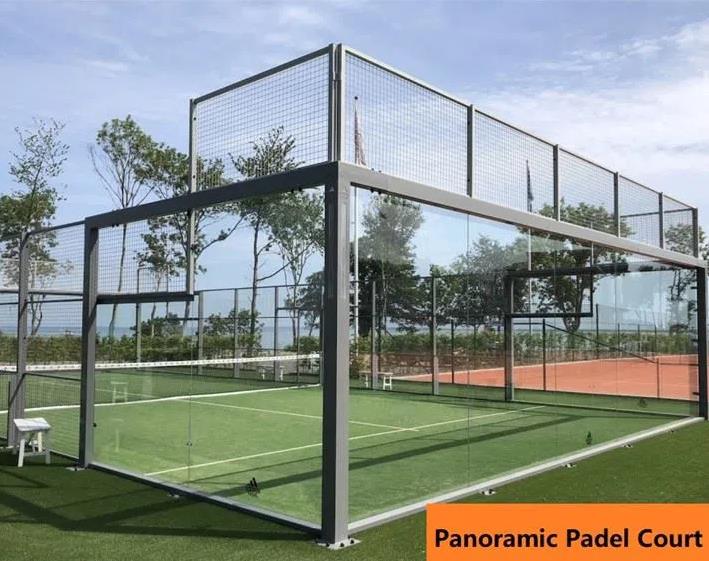

| Premium panoramic court | 3990 × 2995 mm | Fewer joints, enhanced safety |
| Flagship super panoramic | 5990 × 2995 mm | Maximum transparency + safety |
Note: Large-format laminated panels require careful engineering assessment for handling, transportation and installation. Contact our engineering team for project-specific recommendations.
11. Related Products
Each padel court glass configuration links directly to our product pages for detailed specifications.
| Padel Court Requirement | Recommended Product | Link |
|---|
| Standard laminated padel glass | Jumbo Laminated Glass (6+1.52+6mm) | View Product → |
| Heavy-duty laminated padel glass | Jumbo Laminated Glass (8+1.52+8mm) | View Product → |
| Laminated-tempered padel glass | Jumbo Laminated Glass (6T+1.52+6T) | View Product → |
| Standard tempered padel glass | Jumbo Tempered Glass | View Product → |
12. Project References – Laminated Padel Court Glass
| Project | Location | Solution | Panels | Notable Feature |
|---|
| Public Sports Centre – London | UK | 6+1.52+6mm laminated | 28 panels | Public safety requirement |
| University Padel Facility – Barcelona | Spain | 8+1.52+8mm laminated | 24 panels | High-traffic student facility |
| Premium Members' Club – Dubai | UAE | 6T+1.52+6T laminated-tempered | 20 panels | Maximum specification |
| Community Sports Hub – Melbourne | Australia | 6+1.52+6mm laminated | 36 panels | Multi-sport public facility |
| Flagship Arena – Doha | Qatar | 6T+1.52+6T laminated-tempered | 16 panels | Combined strength + retention |
13. Frequently Asked Questions – Laminated Padel Court Glass
Q1: What is laminated padel court glass?
Laminated padel court glass consists of two or more glass plies bonded together with a PVB interlayer. If the glass breaks, the interlayer holds the fragments in place, providing post-breakage retention that prevents the glass from falling out of the frame.
Q2: How is laminated glass different from tempered glass for padel courts?
The key difference is breakage behaviour. Tempered glass shatters into small fragments. Laminated glass cracks but the fragments remain adhered to the PVB interlayer. Laminated glass also provides better acoustic performance and UV protection but is heavier and more expensive.
Q3: Is laminated glass stronger than tempered glass?
Not necessarily. Standard laminated glass (with annealed plies) has similar strength to annealed glass – significantly less than tempered glass. Laminated-tempered glass combines tempered plies with a PVB interlayer, offering both the strength of tempered glass and the post-breakage retention of laminated glass.
Q4: When should I choose laminated glass over tempered for padel courts?
Laminated glass is recommended for:
- Public / high-traffic facilities where post-breakage retention is required
- Schools and universities with enhanced safety requirements
- Courts adjacent to pedestrian walkways
- Acoustic-sensitive installations
- Premium projects where maximum specification is desired
- Q5: What is the standard thickness for laminated padel court glass?
- The most common laminated configuration for padel courts is 6mm + 1.52PVB + 6mm (total 13.52mm). For heavier-duty applications, 8mm + 1.52PVB + 8mm (total 17.52mm) is available.
- Q6: Can laminated glass be used for panoramic or super panoramic courts?

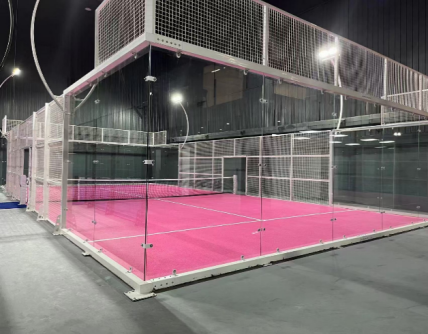

- Yes. Laminated glass can be manufactured in larger dimensions for panoramic and super panoramic court configurations. However, the additional weight must be factored into frame design and installation planning.
- Q7: What is laminated-tempered glass?
- Laminated-tempered glass combines two tempered glass plies with a PVB interlayer. It offers the strength of tempered glass (4–5× annealed) plus the post-breakage retention of laminated glass – representing the maximum specification for padel court glass.
- Q8: How much does laminated padel glass weigh?
- 6+1.52+6mm laminated glass weighs approximately 34 kg per m² – heavier than 12mm tempered (30 kg/m²). A standard 1995×2995mm laminated panel weighs approximately 204 kg.
- Q9: How long does it take to produce laminated padel court glass?
- Standard laminated panels: 4–5 weeks. Laminated-tempered panels: 5–6 weeks. Large-format laminated panels: 6–8 weeks.
- Q10: How do I request a quotation for laminated padel court glass?
- Please provide:
- Panel dimensions (width × height)
- Number of panels
- Laminated configuration (6+1.52+6 / 8+1.52+8 / laminated-tempered / custom)
- Glass type (clear / ultra-clear)
- Hole pattern (drawing or standard pattern)
- Court type (standard / panoramic / super panoramic)
- Quantity per court / total quantity
- Destination port
- Target delivery date
14. Request Laminated Padel Court Glass Quote
Submit your project requirements for a competitive FOB quotation.
Required Information:
- Project type: Public facility / School / University / Premium club / Flagship venue / Other
- Safety requirement: Standard / Enhanced / Maximum
- Court configuration: Standard / Panoramic / Super Panoramic / Custom
- Number of courts: ___ courts
- Panel dimensions: Width × Height per panel type
- Total number of panels
- Laminated configuration: 6+1.52+6mm / 8+1.52+8mm / 6T+1.52+6T / 10+1.52+10mm / Custom
- Glass type: Clear Laminated / Ultra-Clear Laminated / Laminated-Tempered
- Hole pattern: Provide drawing or specify standard pattern
- Hole quantity per panel: 6 / 8 / 10 / 12 / 16 / Custom
- Edge finish: Polished (recommended)
- Door panels required? Yes / No (if yes: hinged / sliding)
- Court location: Indoor / Outdoor
- Special requirements: Acoustic performance / UV protection / Custom dimensions
- Destination port
- Target delivery date
- 📧 Email your specification to: tomron1688@gmail.com
- 🌐 Or upload drawings at: www.jumbotemperedglass.com
- Response time: Preliminary feasibility within 24 hours; detailed quotation with engineering assessment within 48 hours.
15. Related Pages (Internal Link Cluster)
Within Padel Court Glass Section
Other Applications
