Laminated Glass Stair Treads
PVB-Interlayer Safety Glass Treads for Residential, Commercial & Public Staircases – Post-Breakage Retention, Structural Integrity, Code Compliance
Laminated glass stair treads consist of two or more glass plies permanently bonded together with a polyvinyl butyral (PVB) interlayer to create a composite safety glass panel designed specifically for pedestrian walking surfaces. Unlike tempered-only glass which disintegrates upon breakage, laminated glass is engineered to remain intact – the PVB interlayer holds the fragments in place, providing post-breakage retention that prevents fall-through and maintains structural integrity even after impact.
For staircase manufacturers, architectural glazing contractors, structural engineers, and procurement managers supplying the European, North American, Australian and global architectural market, laminated glass stair treads represent the code-compliant safety specification – the glass type that meets the most stringent building code requirements for glass used in walking surfaces.
💡 Why laminated glass is the standard for stair treads: Building codes across virtually all developed markets recognise that glass used as a walking surface presents unique safety risks. Unlike a window or balustrade where breakage may cause injury, a broken stair tread can result in a person falling through the glass – potentially causing serious injury. Laminated glass addresses this risk directly: if the glass is struck with sufficient force to break, the PVB interlayer holds the fragments in place, preventing the person from falling through. This post-breakage retention capability is why laminated glass is the default specification for stair treads in most jurisdictions, and why tempered-only treads are rarely permitted without additional safety measures.
1. Laminated Glass Stair Tread Solutions
Laminated glass stair treads are available in multiple configurations to suit different load requirements, spans and design preferences.
1.1 Standard Laminated Glass Stair Treads
- Description: 10mm + 1.52PVB + 10mm laminated safety glass
- Total thickness: 21.52 mm (~7/8″)
- Typical application: Residential interior stairs, light commercial
- Key benefit: Code-compliant post-breakage retention at moderate cost
1.2 Heavy-Duty Laminated Glass Stair Treads
- Description: 12mm + 1.52PVB + 12mm laminated safety glass
- Total thickness: 25.52 mm (~1″)
- Typical application: Commercial offices, retail, public buildings
- Key benefit: Greater impact resistance and load capacity
1.3 Laminated-Tempered Glass Stair Treads
- Description: Two tempered glass plies bonded with PVB interlayer
- Total thickness: Variable (e.g., 10T+1.52PVB+10T = 21.52mm)
- Typical application: Maximum specification – high-traffic commercial, monumental stairs
- Key benefit: 4–5× strength of annealed + post-breakage retention
1.4 Laminated Glass Treads with Anti-Slip Treatment
- Description: Laminated glass with ceramic frit or epoxy grit surface treatment
- Typical application: Exterior stairs, public entrances, wet areas
- Key benefit: Code-compliant safety + slip resistance
1.5 Low-Iron Laminated Glass Stair Treads
- Description: Low-iron glass plies with PVB interlayer
- Typical application: Premium architectural stairs, feature staircases
- Key benefit: Water-white clarity without green tint at edges
2. Laminated vs Tempered Glass Stair Treads
This is the most critical comparison for procurement managers specifying stair tread glass.
| Feature | Laminated Glass Stair Treads | Tempered-Only Glass Stair Treads |
|---|
| Post-breakage retention | ✅ Yes – PVB holds fragments | ❌ No – glass falls away |
| Strength | Annealed baseline (unless tempered plies) | 4–5× annealed |
| Code compliance (most jurisdictions) | ✅ Yes – standard specification | ⚠️ Limited – rarely permitted alone |
| Fall-through protection | ✅ Yes – tread remains in place | ❌ No – void created on breakage |
| Acoustic performance | Better – PVB dampens sound | Standard |
| Weight | Heavier (two plies) | Lighter |
| Cost | Higher | Lower |
| Best for | All stair tread applications | Guarded stairs only |
2.1 When Laminated is Required vs When Tempered May Suffice
| Scenario | Recommendation | Reasoning |
|---|
| Residential stair – building code compliant | Laminated glass | Most codes require post-breakage retention |
| Residential stair – with protective guardrail | Laminated or tempered | Guardrail may allow tempered-only in some codes |
| Commercial stair – any occupancy | Laminated glass | Mandatory – public safety requirement |
| Public building stair | Laminated glass | Mandatory – highest safety standard |
| External stair | Laminated glass | Weather exposure + safety |
| Stair with glass balustrade only | Laminated glass | No guardrail – tread must retain integrity |
Important: Building codes in most jurisdictions require glass stair treads to be laminated. Tempered-only treads may be permitted only in very specific circumstances (e.g., stairs with independent structural guardrails). Always verify local code requirements. When in doubt, specify laminated glass.
3. Glass Configurations for Laminated Stair Treads
3.1 Glass Types
| Glass Type | Total Thickness | Typical Use | Key Advantage | Link to Product |
|---|
| 10+1.52+10mm Laminated | 21.52 mm | Residential / light commercial | Code-compliant, cost-effective | View Laminated Glass → |
| 12+1.52+12mm Laminated | 25.52 mm | Commercial / public buildings | Greater impact resistance | View Laminated Glass → |
| 10T+1.52+10T Laminated-Tempered | 21.52 mm | Premium commercial | Strength + retention | View Laminated Glass → |
| 12T+1.52+12T Laminated-Tempered | 25.52 mm | Maximum specification | Ultimate strength + retention | View Laminated Glass → |
| 15+1.52+15mm Laminated | 31.52 mm | Monumental / heavy-duty | Extreme load capacity | View Laminated Glass → |
3.2 Laminated Glass Properties
| Property | 10+1.52+10mm | 12+1.52+12mm | 10T+1.52+10T | 12T+1.52+12T |
|---|
| Total thickness | 21.52 mm | 25.52 mm | 21.52 mm | 25.52 mm |
| Weight per m² | ~53 kg | ~63 kg | ~53 kg | ~63 kg |
| Post-breakage retention | ✅ Yes | ✅ Yes | ✅ Yes | ✅ Yes |
| Strength | Annealed baseline | Annealed baseline | 4–5× annealed | 4–5× annealed |
| Acoustic reduction | ~32 dB | ~34 dB | ~32 dB | ~34 dB |
| UV protection | >99% | >99% | >99% | >99% |
3.3 PVB Interlayer Options
| Interlayer Type | Properties | Typical Application |
|---|
| Standard PVB | Clear, excellent adhesion | General stair tread applications |
| Acoustic PVB | Enhanced sound dampening | Hotels, residential, quiet environments |
| UV-Control PVB | >99% UV filtration | Sun-exposed staircases |
| Coloured PVB | Tinted interlayer for design effect | Decorative / architectural stairs |
| Structural PVB | Higher stiffness for load-bearing | Heavy-duty commercial applications |
4. Glass Thickness for Laminated Stair Treads
4.1 Thickness Recommendations by Application
| Application | Recommended Laminated Build-Up | Total Thickness | Notes |
|---|
| Residential interior – standard | 10+1.52+10mm | 21.52 mm (~7/8″) | Minimum code-compliant for most residences |
| Residential interior – premium | 12+1.52+12mm | 25.52 mm (~1″) | Greater safety margin |
| Commercial interior – standard | 10+1.52+10mm or 12+1.52+12mm | 21.52–25.52 mm | Depends on span and traffic |
| Commercial – high traffic | 12+1.52+12mm | 25.52 mm (~1″) | Heavy-duty commercial |
| Public building | 12+1.52+12mm minimum | 25.52 mm (~1″) | Stringent code requirements |
| Monumental / feature stairs | 12T+1.52+12T | 25.52 mm (~1″) | Maximum specification |
| Exterior stairs | 10+1.52+10mm minimum + anti-slip | 21.52 mm+ | Weather + safety |
4.2 Span vs Thickness Guidelines
| Clear Span | Recommended Build-Up | Expected Deflection (2.0kN load) |
|---|
| Up to 1000 mm | 10+1.52+10mm laminated | ~2 mm |
| 1000–1500 mm | 12+1.52+12mm laminated | ~3 mm |
| 1500–2000 mm | 12+1.52+12mm or 12T+1.52+12T | ~5 mm |
| 2000–2500 mm | 15+1.52+15mm laminated | ~4 mm |
| 2500–3000 mm | 15+1.52+15mm or engineering assessment | Subject to structural calc |
Note: These are indicative values. Final thickness must be determined by structural engineering calculations considering actual loading conditions, support configuration, and applicable code requirements.
5. Processing & Fabrication for Laminated Stair Treads
5.1 Standard Processing Services
| Processing Service | Description | Laminated Stair Tread Application |
|---|
| Precision cutting | Cut to exact dimensions (±0.5mm) | Both plies cut before lamination |
| CNC drilling | Computer-controlled hole drilling | Structural fixing holes through laminated assembly |
| Countersinking | Conical recess for flush bolt heads | Flush-finished treads |
| Notching | Corner or edge cut-outs for support brackets | Stair stringer connections |
| Edge polishing | Smooth, transparent polished edges | Recommended for visible edges |
| Arris beveling | Slight edge chamfer for safe handling | All treads |
| Radius corners | Curved corners for safety and appearance | All treads |
| Anti-slip coating | Ceramic frit or epoxy grit surface treatment | Slip-resistant treads |
5.2 Critical Processing Differences: Laminated vs Tempered
| Processing Aspect | Tempered Glass | Laminated Glass |
|---|
| Hole drilling | Before tempering (single ply) | After lamination (through both plies) |
| Drilling complexity | Standard CNC | More complex – two plies must align |
| Edge polishing | Single edge | Both plies polished as one unit |
| Handling weight | Lighter | Heavier – two plies |
| Anti-slip application | Before tempering (ceramic frit) | After lamination (epoxy grit) |
5.3 Lamination Quality Considerations
| Factor | Why It Matters | Our Approach |
|---|
| PVB interlayer quality | Affects adhesion and longevity | Premium PVB from qualified suppliers |
| Bubble / delamination prevention | Visual defects in transparent areas | Controlled autoclave lamination process |
| Hole alignment | Both plies must align precisely | CNC drilling after lamination |
| Edge seal | Moisture ingress prevention | Proper edge sealing protocol |
| Ply thickness consistency | Affects overall build-up tolerance | Precision ground glass plies |
6. Size & Shape Capabilities
6.1 Standard Size Range
| Parameter | Standard Capability | Jumbo Glass Capability |
|---|
| Max Panel Length | 3000 mm (118″) | ≤6000 mm |
| Max Panel Width | 1500 mm (59″) | ≤3300 mm |
| Max Panel Area | ~4.5 m² | ~20 m² |
| Glass Thickness | 21.52–31.52 mm | 8–44.5 mm (multi-ply) |
6.2 Shape Capabilities
| Shape | Capability | Typical Application |
|---|
| Rectangle | ✅ Standard | Straight stair flights |
| Square | ✅ Standard | Individual treads |
| Trapezoid | ✅ Available | Winder / angled stairs |
| Radius front edge | ✅ Available | Curved stair designs |
| Custom polygon | ✅ Available | Spiral stair treads |
7. Safety & Standards
7.1 Applicable Standards by Market
| Standard | Market | Scope |
|---|
| EN 14449 | Europe / UK | Primary standard for laminated safety glass |
| EN 12150 | Europe / UK | Thermally toughened glass (for tempered plies) |
| EN 12600 | Europe / UK | Pendulum impact test |
| ASTM E2751 | USA | Standard practice for design and performance of glass pedestrian walkways |
| ASTM C1172 | USA | Standard specification for laminated architectural glass |
| ANSI Z97.1 | USA | Safety glazing materials |
| AS/NZS 2208 | Australia / NZ | Safety glazing materials |
| CE Marking | Europe | European conformity |
| Eurocode 1 (EN 1991) | Europe | Actions on structures – imposed loads |
7.2 Load Requirements
| Application | Typical Design Load | Standard Reference |
|---|
| Residential stair tread | 1.5 kN concentrated load | Eurocode 1 / IBC |
| Commercial stair tread | 2.0 kN concentrated load | Eurocode 1 / IBC |
| Public building stair tread | 3.0 kN concentrated load | Eurocode 1 / IBC |
| Uniform distributed load | 3.0 kN/m² minimum | Eurocode 1 / IBC |
7.3 Compliance Statement
Our laminated glass stair treads are manufactured to meet applicable safety and structural requirements for your target market, including EN 14449 for laminated safety glass and EN 12150 for tempered plies (where applicable) in Europe, ASTM E2751 and ASTM C1172 for North America, and AS/NZS 2208 for Australia and New Zealand. Final structural design and compliance verification should be performed by a qualified structural engineer for each project.
7.4 Laminated Glass Safety Properties
| Property | Laminated Glass | Why It's Safe for Stair Treads |
|---|
| Post-breakage retention | PVB interlayer holds fragments | Prevents fall-through – tread remains intact |
| Impact resistance | Meets EN 12600 / ANSI Z97.1 | Withstands dropped objects, heel impacts |
| Penetration resistance | Harder to penetrate than single-ply glass | Enhanced safety for walking surfaces |
| Residual load capacity | Remains load-bearing after breakage | Allows safe evacuation until replacement |
8. Applications – Laminated Stair Tread Projects

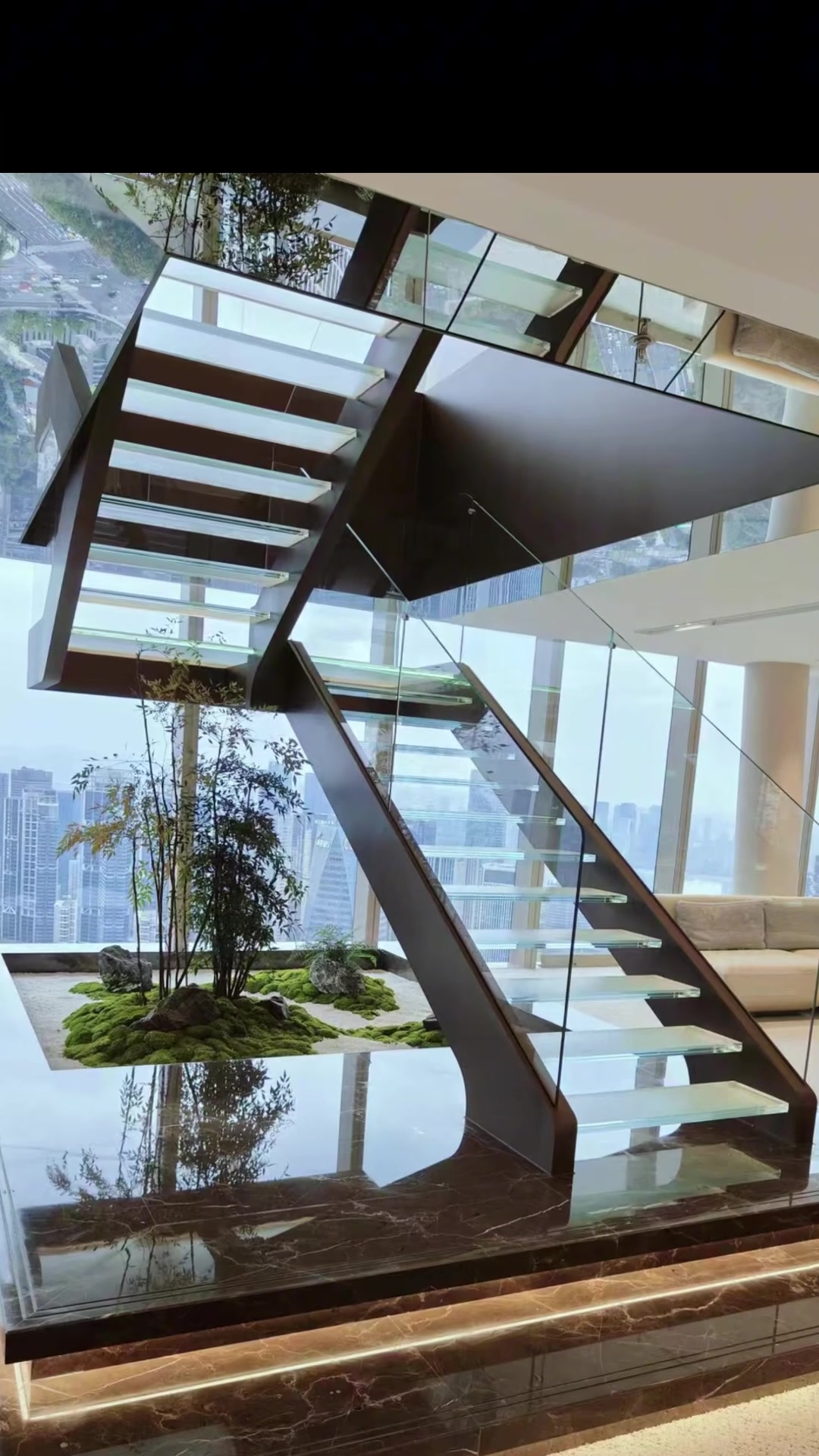

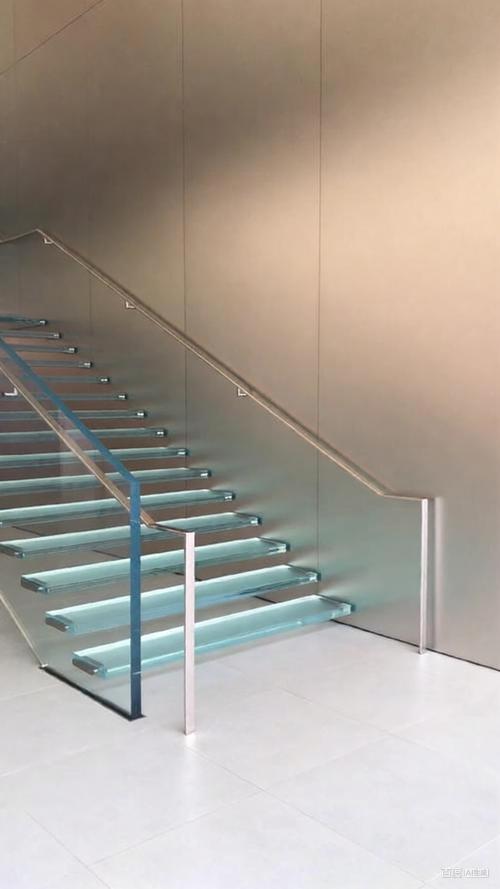

8.1 Stair Types Using Laminated Glass Treads
| Stair Type | Description | Recommended Build-Up |
|---|
| Straight flight stairs | Linear stair with parallel treads | 10+1.52+10mm or 12+1.52+12mm |
| Spiral stairs | Circular stair with tapered treads | 12+1.52+12mm laminated-tempered |
| Winder stairs | Angled turn in stair flight | 12+1.52+12mm laminated |
| Cantilevered stairs | Treads fixed to wall, no visible support | 12T+1.52+12T laminated-tempered |
| Floating stairs | Treads with glass balustrade | 12+1.52+12mm laminated |
| External entrance stairs | Outdoor stairs with weather exposure | 10+1.52+10mm + anti-slip |
8.2 Application Environments
| Environment | Recommendation | Notes |
|---|
| Residential interior | 10+1.52+10mm or 12+1.52+12mm laminated | Code-compliant standard specification |
| Commercial office | 12+1.52+12mm laminated | Public safety requirement |
| Retail / showroom | 12+1.52+12mm laminated + anti-slip | High foot traffic |
| Hotel lobby | 12+1.52+12mm laminated-tempered | Premium appearance + maximum safety |
| External / exposed | 10+1.52+10mm laminated + anti-slip | Weather + slip resistance |
| Public building | 12+1.52+12mm laminated-tempered | Maximum safety specification |
9. Product Selection – Choosing Your Laminated Stair Treads
9.1 Glass Selection Matrix
| Build-Up | Load Capacity | Post-Breakage Retention | Slip Resistance | Cost Level | Best For |
|---|
| 10+1.52+10mm Laminated | ★★★ | ✅ Yes | ★★ | Moderate | Residential, light commercial |
| 12+1.52+12mm Laminated | ★★★★ | ✅ Yes | ★★ | Higher | Commercial, public buildings |
| 10T+1.52+10T Laminated-Tempered | ★★★★★ | ✅ Yes | ★★ | High | Premium commercial |
| 12T+1.52+12T Laminated-Tempered | ★★★★★ | ✅ Yes | ★★ | Highest | Maximum specification |
| Laminated + Anti-Slip | ★★★–★★★★★ | ✅ Yes | ★★★★★ | Highest | Exterior, public access |
9.2 Decision Flow for Procurement Managers
Your Project Type?
↓
Residential / Commercial / Public / External
↓
Load Requirement?
↓
1.5kN / 2.0kN / 3.0kN
↓
Clear Span?
↓
<1000mm / 1000-1500mm / 1500-2000mm / >2000mm
↓
Code Requirement?
↓
Laminated required (virtually always)
↓
Your Tread Configuration?
↓
Straight / Spiral / Winder / Cantilevered
↓
Your Thickness Requirement?
↓
21.52mm / 25.52mm / 31.52mm / Custom
↓
Tempered Plies Required?
↓
Standard laminated / Laminated-tempered
↓
Anti-Slip Required?
↓
Yes / No (Exterior / Commercial)
↓
Your Processing Requirements?
↓
Holes / Notches / Cut-outs / Edge Finish
↓
SUBMIT YOUR TREAD SCHEDULE FOR QUOTATION
10. OEM / Wholesale Laminated Stair Treads
10.1 Who We Supply
| Customer Type | Typical Order Profile | Our Value Proposition |
|---|
| Staircase Manufacturers | Production volumes, scheduled deliveries | Consistent laminated quality, competitive pricing |
| Architectural Glazing Contractors | Project-based quantities | Technical support, engineering assessment |
| Construction Firms | Multi-project procurement | Reliable supply chain |
| Glass Fabricators | Custom sizes, varied processing | Fast turnaround, bulk purchasing |
| Distributors / Importers | Container volumes | Factory-direct pricing |
10.2 Laminated Quality Assurance
| Quality Check | Method | Acceptance Criteria |
|---|
| Lamination integrity | Visual + ultrasonic scan | No bubbles, delamination or inclusions |
| Dimension accuracy | Calibrated measurement | ±0.5mm |
| Hole position accuracy | Coordinate measurement | ±0.5mm from drawing |
| Edge finish quality | Visual inspection | Consistent, defect-free finish |
| PVB adhesion | Pummel test | Grade 2 or better per EN ISO 12543 |
| Anti-slip coating | Visual + adhesion test | Uniform coverage, secure bond |
11. Frequently Asked Questions – Laminated Glass Stair Treads
Q1: What are laminated glass stair treads?
Laminated glass stair treads consist of two or more glass plies bonded together with a PVB interlayer. If the glass breaks, the interlayer holds the fragments in place, providing post-breakage retention that prevents fall-through and maintains structural integrity.
Q2: Why are stair treads required to be laminated?
Because stair treads are walking surfaces. If a tempered-only tread breaks, it creates a void that a person can fall through. Laminated glass retains its integrity after breakage, preventing falls and allowing safe evacuation.
Q3: What is the standard thickness for laminated stair treads?
The most common configurations are:
- 10+1.52+10mm (21.52mm total) – Residential / light commercial
- 12+1.52+12mm (25.52mm total) – Commercial / public buildings
- Q4: What is laminated-tempered glass?
- Laminated-tempered glass combines two tempered glass plies with a PVB interlayer. It offers the strength of tempered glass (4–5× annealed) plus the post-breakage retention of laminated glass – representing the maximum specification for stair treads.
- Q5: Can laminated stair treads be used outdoors?
- Yes – with appropriate specifications. Exterior laminated treads should include anti-slip surface treatment and use UV-stable PVB interlayers to prevent yellowing.
- Q6: Are laminated stair treads stronger than tempered?
- Standard laminated treads (with annealed plies) have similar strength to annealed glass – less than tempered. Laminated-tempered treads offer both the strength of tempered and the retention of laminated.
- Q7: How are laminated stair treads fixed?
- Common fixing methods include:
- Structural silicone bonding to metal stringers
- Countersunk bolt fixings through precision-drilled holes
- Clamping systems with neoprene gaskets
- Combination systems using both mechanical and adhesive fixing
- Q8: Can laminated glass be cut or drilled on site?
- No. All cutting, drilling, notching and edgework must be completed during manufacturing. On-site modification is not possible.
- Q9: How long does it take to produce laminated stair treads?
- Standard laminated treads: 4–6 weeks. Laminated-tempered treads: 5–7 weeks. With anti-slip treatment: 5–7 weeks.
- Q10: How do I request a quotation for laminated stair treads?
- Please provide:
- Tread dimensions (length × width)
- Number of treads
- Laminated build-up (10+1.52+10 / 12+1.52+12 / laminated-tempered / custom)
- Glass type (clear / low-iron)
- Anti-slip requirement
- Fixing method and hole pattern (drawing or specification)
- Load requirement (residential / commercial / public)
- Stair configuration (straight / spiral / winder)
- Destination port
- Target delivery date
12. Request Laminated Glass Stair Treads Quote
Submit your project requirements for a competitive FOB quotation.
Required Information:
- Customer type: Staircase Manufacturer / Glazing Contractor / Construction Firm / Fabricator / Distributor / Other
- Project type: Residential / Commercial / Public / External / Other
- Stair configuration: Straight / Spiral / Winder / Cantilevered / Floating / Custom
- Number of treads: ___
- Tread dimensions: Length × Width per tread type
- Laminated build-up: 10+1.52+10mm / 12+1.52+12mm / 10T+1.52+10T / 12T+1.52+12T / 15+1.52+15mm / Custom
- Glass type: Clear Laminated / Low-Iron Laminated / Laminated-Tempered
- PVB interlayer: Standard / Acoustic / UV-Control / Coloured / Structural
- Anti-slip treatment: Yes / No (if yes: ceramic frit / epoxy grit)
- Fixing method: Bolt fixing / Silicone bonding / Clamping / Custom
- Hole pattern: Provide drawing or specify positions
- Edge finish: Polished / Arrissed
- Radius corners: Yes / No (radius size)
- Load requirement: Residential (1.5kN) / Commercial (2.0kN) / Public (3.0kN) / Custom
- Standards required: EN / ASTM / AS/NZS / Other
- Quantity per order: ___ treads
- Destination port
- Target delivery date
- 📧 Email your specification to: tomron1688@gmail.com
- 🌐 Or upload drawings at: www.jumbotemperedglass.com
- Response time: Preliminary feasibility assessment within 24 hours; detailed quotation with engineering assessment within 48 hours.
13. Related Pages (Internal Link Cluster)
Within Interior & Access Section
Product Pages (Cross‑Links)
Other Applications
