Laminated Floor Glass
PVB-Interlayer Safety Glass Panels for Walkable Floors, Viewing Platforms, Atriums & Architectural Glass Flooring – Post-Breakage Retention, Structural Integrity, Code Compliance
Laminated floor glass consists of two or more glass plies permanently bonded together with a polyvinyl butyral (PVB) interlayer to create a composite safety glass panel specifically engineered for pedestrian walking surfaces. Unlike tempered-only glass which disintegrates upon breakage, laminated floor glass is designed to remain intact – the PVB interlayer holds the fragments in place, providing post-breakage retention that prevents fall-through and maintains structural integrity even after impact.
For architects, structural engineers, architectural glazing contractors, construction firms, and procurement managers supplying the European, North American, Australian and global architectural market, laminated floor glass represents the foundation specification for walkable glass – the glass construction that meets the most stringent building code requirements for glass used in pedestrian walking surfaces.
💡 Why laminated glass is the standard for floor glass: Building codes across virtually all developed markets recognise that glass used as a walking surface presents unique safety risks. Unlike a window or balustrade where breakage may cause injury, a broken floor panel can result in a person falling through the glass – potentially causing serious injury or fatality. Laminated glass addresses this risk directly: if the glass is struck with sufficient force to break, the PVB interlayer holds the fragments in place, preventing the person from falling through. This post-breakage retention capability is why laminated glass is the default specification for walkable glass floors in most jurisdictions, and why tempered-only glass is not considered suitable for this application.
1. Laminated Floor Glass Solutions
Laminated floor glass is available in multiple configurations to suit different load requirements, spans and design preferences.
1.1 Standard Laminated Floor Glass
- Description: 10mm + 1.52PVB + 10mm laminated safety glass
- Total thickness: 21.52 mm (~7/8″)
- Typical application: Residential walkable floors, light commercial, stair landings
- Key benefit: Code-compliant post-breakage retention at moderate cost
1.2 Heavy-Duty Laminated Floor Glass
- Description: 12mm + 1.52PVB + 12mm laminated safety glass
- Total thickness: 25.52 mm (~1″)
- Typical application: Commercial offices, retail, public building floors
- Key benefit: Greater impact resistance and load capacity
1.3 Multi-Layer Laminated Floor Glass
- Description: Three or more glass plies with multiple PVB interlayers
- Total thickness: Variable (e.g., 10+1.52+10+1.52+10 = 33.04mm)
- Typical application: Glass bridges, extended spans, maximum safety specification
- Key benefit: Enhanced load capacity and redundancy
1.4 Laminated Floor Glass with Anti-Slip Treatment
- Description: Laminated glass with ceramic frit or epoxy grit surface treatment
- Typical application: Commercial floors, public access areas, exterior walkways
- Key benefit: Code-compliant safety + slip resistance
1.5 Low-Iron Laminated Floor Glass
- Description: Low-iron glass plies with PVB interlayer for premium clarity
- Typical application: Premium architectural floors, feature viewing platforms
- Key benefit: Water-white clarity without green tint at edges
2. Laminated vs Tempered Glass for Flooring
This is the most critical comparison for procurement managers specifying floor glass.
| Feature | Laminated Floor Glass | Tempered-Only Glass for Flooring |
|---|
| Post-breakage retention | ✅ Yes – PVB holds fragments | ❌ No – glass falls away |
| Strength | Annealed baseline (unless tempered plies) | 4–5× annealed |
| Code compliance (most jurisdictions) | ✅ Yes – standard specification | ❌ Not suitable for walkable surfaces |
| Fall-through protection | ✅ Yes – panel remains in place | ❌ No – void created on breakage |
| Acoustic performance | Better – PVB dampens sound | Standard |
| Weight | Heavier (two or more plies) | Lighter |
| Cost | Higher | Lower |
| Best for | All walkable glass applications | Not suitable for flooring |
2.1 When Laminated Is Required vs When Tempered May Be Considered
| Application | Recommendation | Reasoning |
|---|
| Residential walkable floor | Laminated glass | Code requires post-breakage retention |
| Commercial walkable floor | Laminated glass | Mandatory – public safety requirement |
| Public building floor | Laminated glass | Mandatory – highest safety standard |
| Viewing platform | Laminated glass | Elevated surface – fall-through risk |
| Glass bridge | Multi-layer laminated | Maximum safety specification |
| Exterior walkway | Laminated glass | Weather exposure + safety |
| Decorative floor (non-walkable) | Tempered may be considered | No pedestrian load expected |
Important: Building codes in most jurisdictions require glass used as a walking surface to be laminated. Tempered-only glass is generally not considered suitable for walkable floor applications due to the absence of post-breakage retention. When in doubt, specify laminated glass.
3. Why Laminated Glass for Flooring?
This section explains the technical advantages of laminated glass specifically for floor applications.
3.1 Multi-Layer Construction
| Layer | Function |
|---|
| Top glass ply | Provides the walking surface, impact resistance |
| PVB interlayer | Bonds plies together, provides post-breakage retention, absorbs impact energy |
| Bottom glass ply | Provides structural depth, distributes load |
| Additional layers (multi-layer) | Enhanced load capacity, redundancy, extended span capability |
3.2 Interlayer Retention Mechanism
| Breakage Scenario | Laminated Glass Behaviour | Safety Outcome |
|---|
| Impact from dropped object | Glass cracks, PVB holds fragments | Panel remains intact – no fall-through |
| Concentrated point load (heel) | Localised cracking possible | PVB distributes stress, retains integrity |
| Severe impact | Both plies may crack | PVB still holds fragments in place |
| Post-breakage load | Panel deflects but stays in place | Safe evacuation possible |
3.3 Safety Comparison
| Safety Property | Laminated Glass | Tempered-Only Glass |
|---|
| Post-breakage retention | ✅ Yes | ❌ No |
| Fall-through prevention | ✅ Yes | ❌ No |
| Residual load capacity | ✅ Yes – limited | ❌ No |
| Impact resistance | ✅ Good (meets EN 12600 / ANSI Z97.1) | ✅ Excellent |
| Penetration resistance | ✅ Harder to penetrate | ❌ Easier to penetrate |
3.4 Structural Design Flexibility
| Design Advantage | Benefit |
|---|
| Custom thickness combinations | Match load requirements precisely |
| Different glass types per ply | e.g., tempered top ply + annealed bottom ply |
| Multiple interlayer options | Standard, acoustic, UV-control, structural PVB |
| Large panel capability | Up to 6000×3300mm with Jumbo Glass capability |
4. Glass Configurations for Laminated Floor Glass
4.1 Glass Types
| Glass Type | Total Thickness | Typical Use | Key Advantage | Link to Product |
|---|
| 10+1.52+10mm Laminated | 21.52 mm | Residential / light commercial | Code-compliant, cost-effective | View Laminated Glass → |
| 12+1.52+12mm Laminated | 25.52 mm | Commercial / public buildings | Greater impact resistance | View Laminated Glass → |
| 10+1.52+10+1.52+10 Multi-Layer | 33.04 mm | Glass bridges, extended spans | Enhanced load capacity | View Laminated Glass → |
| 12+1.52+12+1.52+12 Multi-Layer | 38.56 mm | Maximum specification | Ultimate load capacity | View Laminated Glass → |
4.2 Laminated Glass Properties for Flooring
| Property | 10+1.52+10mm | 12+1.52+12mm | 10+1.52+10+1.52+10mm |
|---|
| Total thickness | 21.52 mm | 25.52 mm | 33.04 mm |
| Weight per m² | ~53 kg | ~63 kg | ~79 kg |
| Post-breakage retention | ✅ Yes | ✅ Yes | ✅ Yes |
| Strength | Annealed baseline | Annealed baseline | Enhanced (multi-layer) |
| Acoustic reduction | ~32 dB | ~34 dB | ~36 dB |
| UV protection | >99% | >99% | >99% |
4.3 PVB Interlayer Options
| Interlayer Type | Properties | Typical Application |
|---|
| Standard PVB | Clear, excellent adhesion | General floor glass applications |
| Acoustic PVB | Enhanced sound dampening | Hotels, residential, quiet environments |
| UV-Control PVB | >99% UV filtration | Sun-exposed floor installations |
| Coloured PVB | Tinted interlayer for design effect | Decorative / architectural floors |
| Structural PVB | Higher stiffness for load-bearing | Heavy-duty commercial applications |
5. Glass Thickness for Laminated Floor Glass
5.1 Thickness Recommendations by Application
| Application | Recommended Laminated Build-Up | Total Thickness | Notes |
|---|
| Residential walkable floor | 10+1.52+10mm | 21.52 mm (~7/8″) | Minimum code-compliant for residential |
| Residential viewing platform | 12+1.52+12mm | 25.52 mm (~1″) | Greater safety margin for elevated areas |
| Commercial walkable floor | 12+1.52+12mm | 25.52 mm (~1″) | Standard commercial specification |
| Public building floor | 12+1.52+12mm minimum | 25.52 mm (~1″) | Stringent code requirements |
| Atrium floor (large panels) | 12+1.52+12mm or multi-layer | 25.52 mm+ | Depends on panel size and span |
| Glass bridge | Multi-layer (project-engineered) | 33.04 mm+ | Extended span – custom engineering |
| Exterior walkway | 10+1.52+10mm + anti-slip minimum | 21.52 mm+ | Weather + safety |
5.2 Span vs Thickness Guidelines
| Clear Span | Recommended Build-Up | Expected Deflection (2.0kN load) |
|---|
| Up to 1000 mm | 10+1.52+10mm laminated | ~2 mm |
| 1000–1500 mm | 12+1.52+12mm laminated | ~3 mm |
| 1500–2000 mm | 12+1.52+12mm or multi-layer | ~4–5 mm |
| 2000–3000 mm | Multi-layer laminated – project-engineered | Subject to structural calc |
| 3000 mm+ | Multi-layer laminated – FEA required | Requires engineering assessment |
Note: These are indicative values. Final thickness must be determined by structural engineering calculations considering actual loading conditions, support configuration, and applicable code requirements. Examples shown are typical configurations for reference only.
6. Processing & Fabrication for Laminated Floor Glass
6.1 Standard Processing Services
| Processing Service | Description | Laminated Floor Glass Application |
|---|
| Precision cutting | Cut to exact dimensions (±0.5mm) | Both plies cut before lamination |
| CNC drilling | Computer-controlled hole drilling | Structural fixing holes through laminated assembly |
| Countersinking | Conical recess for flush bolt heads | Flush-finished floor surface |
| Notching | Corner or edge cut-outs for support brackets | Support structure integration |
| Edge polishing | Smooth, transparent polished edges | Recommended for visible edges |
| Arris beveling | Slight edge chamfer for safe handling | All panels |
| Radius corners | Curved corners for safety and appearance | All panels |
| Ceramic frit printing | Anti-slip dot pattern fired onto surface | Essential for walkable areas |
6.2 Critical Processing for Laminated Floor Glass
| Processing Step | Why It Matters | Our Approach |
|---|
| Lamination quality | Ensures interlayer bond integrity | Controlled autoclave process + ultrasonic inspection |
| Hole alignment | Both plies must align precisely | CNC drilling after lamination |
| Edge quality | Reduces stress concentration under load | Precision CNC edge profiling + polishing |
| Anti-slip application | Prevents slipping on walkable surface | Ceramic frit fired during tempering for permanent bond |
7. Size & Shape Capabilities
7.1 Standard Size Range
| Parameter | Standard Capability | Jumbo Glass Capability |
|---|
| Max Panel Length | 3000 mm (118″) | ≤6000 mm |
| Max Panel Width | 1500 mm (59″) | ≤3300 mm |
| Max Panel Area | ~4.5 m² | ~20 m² |
| Glass Thickness | 21.52–38.56 mm | 8–44.5 mm (multi-ply) |
7.2 Shape Capabilities
| Shape | Capability | Typical Application |
|---|
| Rectangle | ✅ Standard | Straight floor panels |
| Square | ✅ Standard | Individual viewing panels |
| Trapezoid | ✅ Available | Angled floor sections |
| Custom polygon | ✅ Available | Irregular floor layouts |
| Radius edge | ✅ Available | Curved viewing platforms |
8. Safety & Standards
8.1 Applicable Standards by Market
| Standard | Market | Scope |
|---|
| EN 14449 | Europe / UK | Primary standard for laminated safety glass |
| EN 12150 | Europe / UK | Thermally toughened safety glass |
| EN 12600 | Europe / UK | Pendulum impact test |
| ASTM E2751 | USA | Standard practice for glass pedestrian walkways |
| ASTM C1172 | USA | Standard specification for laminated architectural glass |
| ANSI Z97.1 | USA | Safety glazing materials |
| AS/NZS 2208 | Australia / NZ | Safety glazing materials |
| CE Marking | Europe | European conformity |
| Eurocode 1 (EN 1991) | Europe | Actions on structures – imposed loads |
8.2 Load Requirements
| Application | Typical Design Load | Standard Reference |
|---|
| Residential walkable floor | 1.5 kN concentrated + 1.5 kN/m² UDL | Eurocode 1 / IBC |
| Commercial walkable floor | 2.0 kN concentrated + 3.0 kN/m² UDL | Eurocode 1 / IBC |
| Public building floor | 3.0 kN concentrated + 5.0 kN/m² UDL | Eurocode 1 / IBC |
| Viewing platform | 3.0–5.0 kN concentrated | Project-specific |
8.3 Compliance Statement
Our laminated floor glass panels are manufactured to meet applicable safety and structural requirements for your target market, including EN 14449 for laminated safety glass in Europe, ASTM E2751 and ASTM C1172 for North America, and AS/NZS 2208 for Australia and New Zealand. Final structural design and compliance verification must be performed by a qualified structural engineer for each project.
9. Applications – Laminated Floor Glass Projects
9.1 Floor Glass Applications
| Application | Description | Recommended Build-Up |
|---|

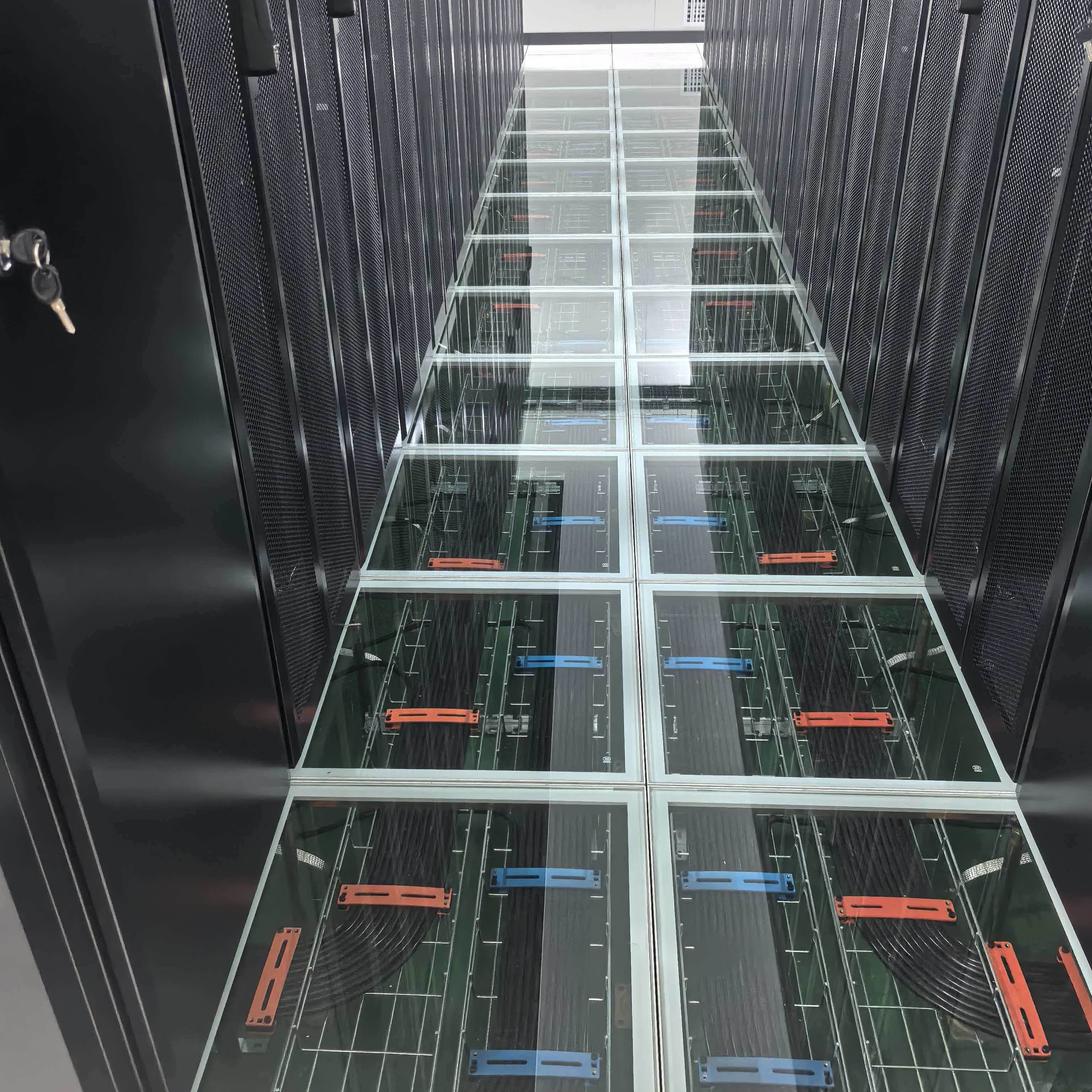

| Interior walkable floor | Glass panel in residential or commercial floor | 10+1.52+10mm or 12+1.52+12mm laminated |
| Viewing platform | Elevated glass observation area | 12+1.52+12mm laminated minimum |
| Atrium floor | Multi-story glass floor in public space | 12+1.52+12mm laminated |
| Glass bridge | Pedestrian bridge with glass floor | Multi-layer laminated – project-engineered |
| Stair landing | Glass landing between stair flights | 10+1.52+10mm or 12+1.52+12mm laminated |
| Mezzanine floor | Elevated glass floor within a space | 12+1.52+12mm laminated |
| Display platform | Glass floor for exhibit/showcase | 10+1.52+10mm low-iron laminated |
9.2 Application Environments
| Environment | Recommendation | Notes |
|---|
| Residential interior | 10+1.52+10mm laminated | Limited access, lower traffic |
| Commercial interior | 12+1.52+12mm laminated | Public access requires greater safety |
| Hotel / hospitality | 12+1.52+12mm laminated + low-iron optional | Premium appearance + safety |
| Museum / gallery | Low-iron laminated | True colour rendering + safety |
| Shopping mall | 12+1.52+12mm laminated + anti-slip | High traffic + public safety |
| Exterior walkway | 10+1.52+10mm laminated + anti-slip minimum | Weather exposure + slip resistance |
10. Product Selection – Choosing Your Laminated Floor Glass
10.1 Glass Selection Matrix
| Build-Up | Load Capacity | Post-Breakage Retention | Slip Resistance | Cost Level | Best For |
|---|
| 10+1.52+10mm Laminated | ★★★ | ✅ Yes | Optional | Moderate | Residential, light commercial |
| 12+1.52+12mm Laminated | ★★★★ | ✅ Yes | Optional | Higher | Commercial, public buildings |
| Multi-Layer Laminated | ★★★★★ | ✅ Yes | Optional | Highest | Extended spans, bridges |
| Laminated + Anti-Slip | ★★★–★★★★★ | ✅ Yes | ✅ Yes | Higher–Highest | All walkable areas |
10.2 Decision Flow for Procurement Managers
Your Project Type?
↓
Residential / Commercial / Public / Viewing Platform / Bridge
↓
Is this a walkable surface?
↓
YES → Laminated Glass Required
↓
What is the clear span?
↓
<1000mm / 1000-1500mm / 1500-2000mm / >2000mm
↓
What is the design load?
↓
1.5kN / 2.0kN / 3.0kN / 5.0kN
↓
Select Build-Up:
↓
10+1.52+10mm / 12+1.52+12mm / Multi-Layer
↓
Select Glass Type:
↓
Clear / Low-Iron
↓
Select PVB Interlayer:
↓
Standard / Acoustic / UV-Control / Structural
↓
Anti-Slip Required?
↓
YES (recommended for all walkable areas)
↓
Specify Processing:
↓
Holes / Notches / Edge Finish / Ceramic Frit Pattern
↓
ENGINEERING ASSESSMENT REQUIRED
↓
SUBMIT PROJECT SPECIFICATIONS FOR QUOTATION
11. Frequently Asked Questions – Laminated Floor Glass
Q1: What is laminated floor glass?
Laminated floor glass consists of two or more glass plies bonded together with a PVB interlayer. If the glass breaks, the interlayer holds the fragments in place, providing post-breakage retention that prevents fall-through and maintains structural integrity.
Q2: Why is laminated glass required for floor applications?
Because floor glass is a walking surface. If a tempered-only panel breaks, it creates a void that a person can fall through. Laminated glass retains its integrity after breakage, preventing falls and allowing safe evacuation.
Q3: What is the standard thickness for laminated floor glass?
The most common configurations are:
- 10+1.52+10mm (21.52mm total) – Residential / light commercial
- 12+1.52+12mm (25.52mm total) – Commercial / public buildings
- Multi-layer (33.04mm+) – Extended spans / bridges
- Q4: Is laminated floor glass stronger than tempered glass?
- Standard laminated glass (with annealed plies) has similar strength to annealed glass – less than tempered. However, laminated glass provides post-breakage retention, which is the critical safety property for floor applications. For maximum strength + retention, specify laminated-tempered construction.
- Q5: Can laminated floor glass be used outdoors?
- Yes – with appropriate specifications. Exterior laminated floor glass should include anti-slip surface treatment and use UV-stable PVB interlayers to prevent yellowing.
- Q6: Is laminated floor glass slippery?
- Untreated laminated glass can be slippery, especially when wet. Anti-slip treatments such as ceramic frit or epoxy grit are recommended for all walkable floor areas – and are essential for commercial and exterior applications.
- Q7: How much weight can laminated floor glass support?
- Laminated floor glass is engineered per project. Typical design loads range from 1.5 kN (residential) to 5.0 kN (bridges/viewing platforms) . Load capacity depends on panel dimensions, support conditions, glass construction and applicable standards.
- Q8: Can laminated floor glass be custom-shaped?
- Yes. Laminated floor glass can be fabricated in custom shapes including rectangles, squares, trapezoids, polygons and radius-edge panels – subject to engineering assessment.
- Q9: How long does it take to produce laminated floor glass?
- Standard laminated panels: 4–6 weeks. Multi-layer laminated panels: 6–8 weeks.
- Q10: How do I request a quotation for laminated floor glass?
- Please provide: panel dimensions, quantity, support conditions, clear span, design load, indoor/outdoor, slip resistance requirement, glass type preference, applicable standard, fixing method, and target delivery date. Upload your project drawing for fastest response.
12. Request Laminated Floor Glass Quote
Submit your project specifications for a competitive FOB quotation.
Required Information:
- Customer type: Architect / Contractor / Staircase Manufacturer / Construction Firm / Fabricator / Distributor / Other
- Project type: Residential / Commercial / Hotel / Museum / Mall / Atrium / Bridge / Viewing Platform / Other
- Application: Walkable Floor / Viewing Platform / Atrium Floor / Glass Bridge / Stair Landing / Mezzanine / Other
- Number of panels: ___
- Panel dimensions: Length × Width × Thickness (if known)
- Clear span: ___ mm
- Support conditions: Four-side / Two-side / Point-supported / Other
- Design load: ___ kN concentrated + ___ kN/m² UDL
- Deflection limit: Span/___ (e.g., span/200)
- Traffic type: Residential / Commercial / Public
- Indoor / Outdoor: Indoor / Outdoor / Both
- Slip resistance required: Yes / No
- Glass type: Clear Laminated / Low-Iron Laminated / Unsure
- Laminated build-up: 10+1.52+10mm / 12+1.52+12mm / Multi-Layer / Custom / Unsure
- PVB interlayer: Standard / Acoustic / UV-Control / Structural / Unsure
- Anti-slip treatment: Ceramic Frit / Epoxy Grit / None
- Fixing method: Structural Silicone / Mechanical Clamps / Bolt Fixing / Combination / Undefined
- Applicable standard: EN / ASTM / AS/NZS / Other / Unsure
- Upload drawing: PDF / DWG / DXF
- Quantity per order: ___ panels
- Destination port
- Target delivery date
- 📧 Email your specification to: tomron1688@gmail.com
- 🌐 Upload drawings at: www.jumbotemperedglass.com
- Response time: Preliminary feasibility assessment within 24 hours; detailed quotation with engineering assessment within 48 hours.
13. Related Pages (Internal Link Cluster)
Within Floor Glass Section
Product Pages (Cross‑Links)
Other Applications
