Frosted Glass Partitions
Privacy Glass Partition Walls with Diffused Light – Engineered for Visual Privacy & Modern Interior Design
Frosted glass partitions are interior glass wall systems where the glass surface has been treated to create a translucent, privacy-enhancing finish. Unlike clear glass which offers full transparency, or opaque walls which block all light, frosted glass strikes the perfect balance – providing visual privacy while allowing natural light to pass through, creating bright, open-feeling spaces without compromising confidentiality.
For procurement managers, interior designers, and glazing contractors supplying corporate offices, healthcare facilities, hotels, retail environments, and public buildings, frosted glass partitions offer a sophisticated solution to the fundamental tension in modern interior design: how to create private spaces without darkening them.
💡 Why frosted matters: The demand for frosted glass partitions has grown significantly as workplace design evolves toward activity-based working. Employees need both collaborative open spaces and private focus areas – frosted glass delivers the privacy required for concentration without the psychological isolation of solid walls. Studies show that workplaces incorporating translucent partitions report higher employee satisfaction with privacy levels while maintaining the daylight benefits of glass. For glass suppliers, frosted glass commands a 15–30% premium over clear glass due to the additional processing step.
1. Frosted Glass Partition Applications
Frosted glass partitions are specified wherever visual privacy is required without sacrificing natural light transmission.
| Application | Privacy Requirement | Recommended Frosting Type |
|---|
| Private offices | Confidentiality for meetings and focused work | Full acid etch (100% coverage) |
| Meeting rooms | Visual privacy during discussions | Full frost or patterned frit (70–100%) |
| Toilet cubicles / washrooms | Complete privacy | Full acid etch (100% coverage) |
| Healthcare consulting rooms | Patient confidentiality | Full frost (100% coverage) |
| Hotel bathroom partitions | Guest privacy + elegance | Full frost or patterned (100%) |
| Retail fitting rooms | Customer privacy | Full frost (100% coverage) |

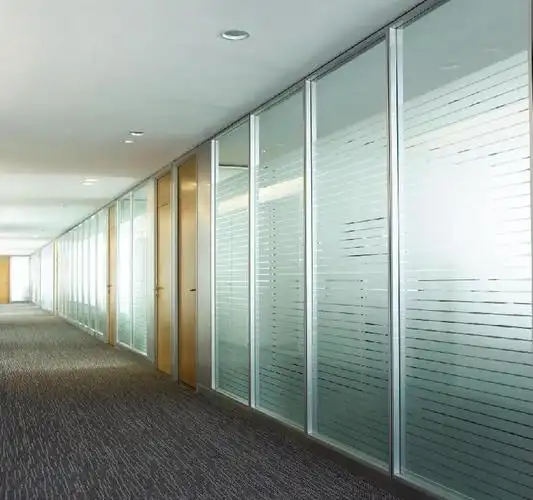

| Office corridor partitions | Partial privacy + wayfinding | Patterned frit (30–50% coverage) |
| Reception area backgrounds | Branded privacy | Digital print + frosted combination |
| School classroom partitions | Supervision + partial privacy | Upper clear / lower frosted |
2. Frosted Partition Systems
Frosted glass can be incorporated into virtually any partition system. The choice of system affects the glass specification and frosting method.
2.1 Framed Frosted Partition
- Description: Frosted glass panels set within aluminium or steel perimeter frames
- Glass thickness: 8–10mm tempered or laminated
- Frosting method: Acid etch or ceramic frit
- Best for: Standard office privacy partitions, cost-effective solution
- Key benefit: Frame provides clean edges; frosting applied to full panel or selective areas
2.2 Frameless Frosted Partition
- Description: Frosted glass panels joined edge-to-edge with minimal hardware
- Glass thickness: 10–12mm tempered or laminated
- Frosting method: Acid etch (preferred for frameless – uniform appearance)
- Best for: Premium privacy partitions, executive offices
- Key benefit: Clean minimalist appearance with privacy
2.3 Floor-to-Ceiling Frosted Partition
- Description: Full-height frosted glass panels from floor to ceiling
- Glass thickness: 10–12mm tempered or laminated
- Frosting method: Full panel frost or graduated frost (upper portion)
- Best for: Fully enclosed private offices, meeting rooms
- Key benefit: Complete spatial definition with privacy
2.4 Partial Frosted Partition
- Description: Glass panels with frosted lower section and clear upper section
- Glass thickness: 8–10mm tempered
- Frosting method: Selective acid etch or ceramic frit band
- Best for: Open-plan privacy screens, reception counters
- Key benefit: Desk-level privacy while maintaining visibility above
2.5 Sliding Frosted Partition
- Description: Frosted glass panels mounted on overhead tracks
- Glass thickness: 8–10mm tempered
- Frosting method: Acid etch or ceramic frit
- Best for: Divisible meeting rooms requiring privacy
- Key benefit: Flexible space division with privacy
3. Glass Configurations for Frosted Partitions
3.1 Frosting Methods Comparison
| Frosting Method | Process | Durability | Appearance | Cost Premium | Best For |
|---|
| Acid Etch (Chemical Frost) | Glass immersed in acid bath | Permanent – will not wear or peel | Smooth, uniform translucent finish | +15–25% | Premium interiors, frameless systems |
| Ceramic Frit (Silk-Screen) | Ceramic ink fired into glass at 680°C | Permanent – scratch-resistant | Dot pattern or solid coverage | +20–35% | Patterned privacy, branding |
| Sandblasted | Abrasive particles blasted onto surface | Durable but can show wear over time | Textured, slightly uneven | +10–20% | Budget projects, temporary installations |
| Digital Ceramic Print | Inkjet printing + kiln firing | Permanent – full colour capability | Custom designs, gradients, logos | +30–50% | Branded privacy partitions |
3.2 Frosted Glass Build-Ups
| Build-Up | Frosting Method | Total Thickness | Typical Application | Link to Product |
|---|
| 8mm Tempered + Acid Etch | Acid etch | 8 mm | Standard privacy partitions | View Tempered Glass → |
| 10mm Tempered + Acid Etch | Acid etch | 10 mm | Premium privacy partitions | View Tempered Glass → |
| 8T + 1.52PVB + 8T + Frost | Acid etch (inner face) | 17.52 mm | Safety + privacy partitions | View Laminated Glass → |
| 10T + 1.52SGP + 10T + Frost | Acid etch (inner face) | 21.52 mm | Frameless safety + privacy | View Laminated Glass → |
| 8mm Tempered + Ceramic Frit | Ceramic frit (dot pattern) | 8 mm | Patterned privacy partitions | View Ceramic Frit → |
| 10mm Tempered + Digital Print | Digital ceramic print | 10 mm | Branded privacy partitions | View Ceramic Frit → |
3.3 Frosting Coverage Options
| Coverage | Visual Effect | Light Transmission | Best Application |
|---|
| 100% full frost | Completely translucent | 10–20% | Toilets, fitting rooms, consulting rooms |
| Upper band frost | Frosted top section, clear below | 50–70% overall | Private offices (seated privacy) |
| Lower band frost | Frosted bottom section, clear above | 60–80% overall | Reception desks, counter screens |
| Striped pattern (50%) | Alternating clear/frosted stripes | 55–65% | Corridor partitions, design feature |
| Dot pattern (30–50%) | Dots create partial obscurity | 50–70% | Meeting room sidelights |
| Graduated frost | Gradually transitions from clear to frosted | 20–80% gradient | Executive office fronts, design statement |
4. Safety Performance for Frosted Partitions
4.1 Impact Safety Standards
| Standard | Test Method | Requirement for Frosted Partitions |
|---|
| EN 12600 | 40 kg pendulum impact | Class 1B1 or 2B2 |
| ANSI Z97.1 | Drop ball impact | Category I or II |
| BS 6206 | Impact test | Class A or B |
4.2 Frosting and Safety – Important Considerations
| Consideration | Why It Matters | Recommendation |
|---|
| Frosting on tempered glass | Acid etching does not affect glass strength | Safe for all tempered applications |
| Frosting on laminated glass | Apply frosting to inner face before lamination | Protects frosted surface from wear |
| Frosting on frameless systems | Edges remain clear – polished edges visible | Specify polished edges for contrast |
| Frosting near drilled holes | Avoid frosting within 10mm of hole edges | Ensure clean drilling surface |
4.3 Safety Zone Recommendations for Frosted Partitions
| Zone | Location | Glass Requirement | Frosting Compatibility |
|---|
| Zone A | Above 2m from floor | 6mm+ tempered | ✅ Fully compatible |
| Zone B | 0.5–2m from floor | 8mm+ tempered or laminated | ✅ Fully compatible |
| Zone C | Doors, circulation paths | 10mm+ laminated recommended | ✅ Compatible with laminated |
5. Glass Processing for Frosted Partitions
5.1 Processing Sequence
| Step | Description | Important Note |
|---|
| 1. Cutting | Glass cut to final dimensions | Standard process |
| 2. Edge grinding | Edges prepared | Required for polished finish |
| 3. Hole drilling | Holes drilled (if required) | Before tempering |
| 4. Frosting application | Acid etch or ceramic frit applied | Before tempering (for frit) or after cutting (for etch) |
| 5. Tempering | Glass thermally strengthened | Frosting survives tempering process |
| 6. Lamination (if required) | Interlayer bonding | Frosting on inner face protected |
5.2 Processing Services Available
| Processing Service | Available for Frosted? | Notes |
|---|
| Precision cutting | ✅ Yes | Standard |
| Edge polishing | ✅ Yes | Creates contrast with frosted surface |
| Edge seaming | ✅ Yes | Standard |
| Drilling | ✅ Yes | Before tempering |
| Notching | ✅ Yes | Before tempering |
| Cut-outs | ✅ Yes | CNC processed |
| Selective frosting | ✅ Yes | Masking technique for patterns |
| Graduated frosting | ✅ Yes | Variable immersion depth |
| Combined clear + frosted | ✅ Yes | On same panel |
6. Maximum Glass Size for Frosted Partitions
| Parameter | Standard Frosted Capability | Jumbo Glass Capability |
|---|
| Max Width | ≤2440 mm | ≤3300 mm |
| Max Height | ≤6000 mm | ≤12000 mm |
| Max Area | ~15 m² | ~40 m² |
| Max Frosted Area (single panel) | Same as glass size | Same as glass size |
6.1 Size Recommendations by Frosting Type
| Frosting Type | Max Panel Size | Limitation |
|---|
| Acid etch (immersion) | 3300 × 12000 mm | Limited by acid tank dimensions |
| Ceramic frit (silk-screen) | 2600 × 7000 mm | Limited by screen printing bed |
| Digital ceramic print | 2600 × 7500 mm | Limited by printer width |
| Sandblasted | 3300 × 12000 mm | Limited by blasting booth |
7. Privacy & Appearance Options for Frosted Partitions
7.1 Frosting Levels
| Frosting Level | Light Transmission (VLT) | Obscurity Level | Best Application |
|---|
| Light frost | 60–70% | See silhouettes, not details | Open-plan privacy screens |
| Medium frost | 30–50% | Blurred shapes only | Meeting rooms, private offices |
| Heavy frost | 10–20% | Light only, no shapes visible | Toilets, fitting rooms, consulting rooms |
7.2 Design Patterns
| Pattern | Description | Best For |
|---|
| Solid frost | Uniform translucent finish | Maximum privacy |

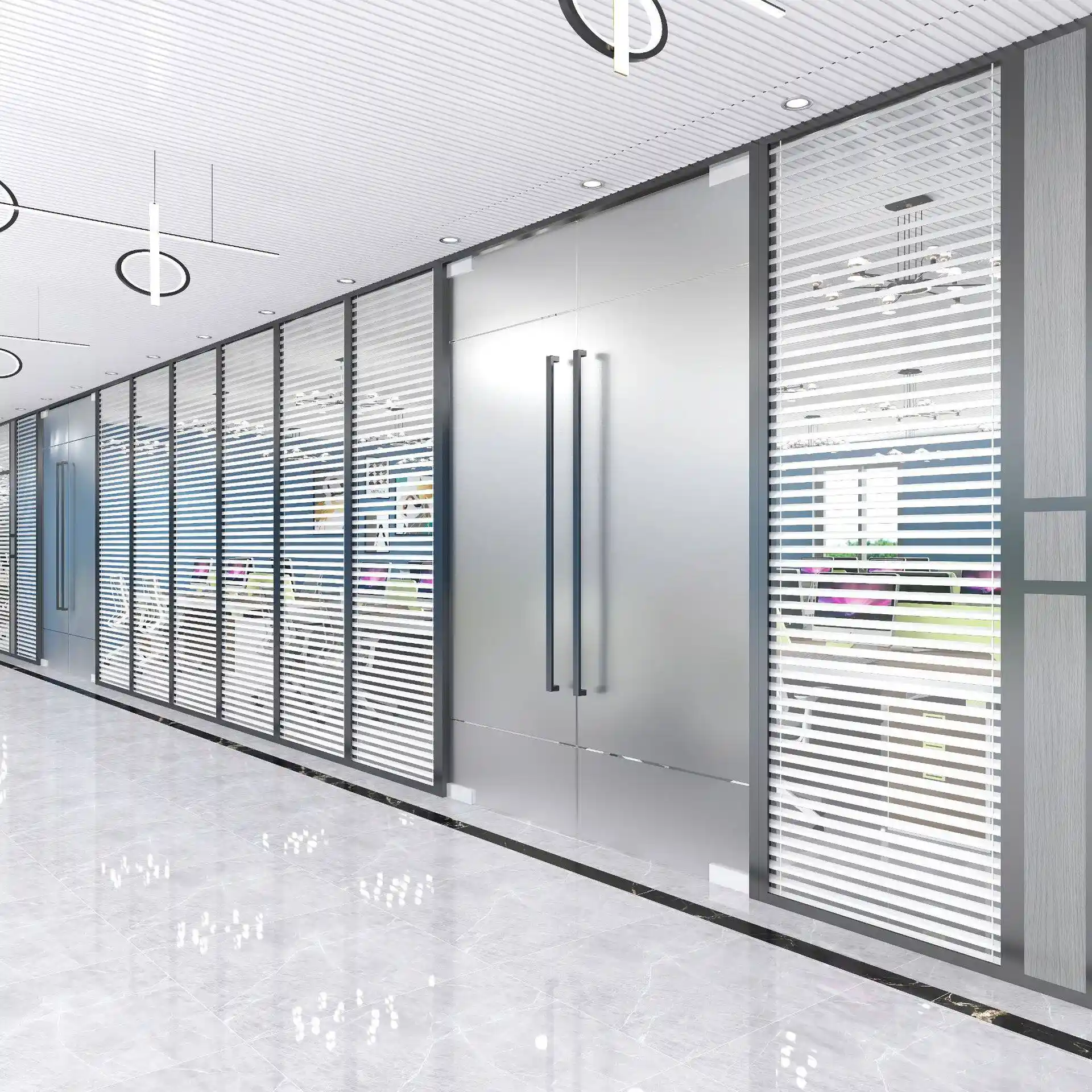

| Horizontal stripes | Clear/frosted alternating bands | Modern office aesthetic |
| Vertical stripes | Clear/frosted vertical bands | Ceiling-height emphasis |
| Geometric pattern | Circles, squares, diamonds | Design-forward interiors |
| Gradient / graduated | Clear to frosted transition | Executive spaces |
| Logo / branding | Clear logo on frosted background | Reception, corporate identity |
| Nature motifs | Leaf, wave, organic patterns | Hospitality, wellness spaces |
7.3 Glass Substrate Options
| Substrate | Appearance Under Frost | Best For |
|---|
| Clear glass | Slightly greenish-white frosted appearance | Standard applications |
| Low-Iron (Ultra Clear) | Pure white frosted appearance – no green tint | Premium frosted partitions |
8. Applicable Glass Products for Frosted Partitions
Each frosted partition configuration links directly to our product pages for detailed specifications.
| Frosted Requirement | Recommended Product | Link |
|---|
| Standard frosted partition | Jumbo Tempered Glass + Acid Etch | View Tempered Glass → |
| Safety frosted partition | Jumbo Laminated Glass + Frost | View Laminated Glass → |
| Patterned frosted partition | Custom Ceramic Frit Glass | View Product → |
| Branded frosted partition | Custom Ceramic Frit Glass (digital print) | View Product → |
| Premium clarity frosted | Ultra Clear Tempered Glass + Frost | View Product → |
| Switchable privacy | Smart Glass / PDLC Glass | View Product → |
| Large-format frosted | Jumbo Glass + Frost | View Product → |
9. Standards & Certifications
| Standard | Scope | Applicable To |
|---|
| EN 12150 | Thermally toughened glass | All tempered frosted glass |
| EN 12600 | Pendulum impact test | Safety glazing requirement |
| BS 6262 | Code of practice for glazing | UK installation |
| CE | European conformity marking | EU market |
| CCC | China compulsory certification | China market |
| ISO 9001 | Quality management system | Manufacturing process |
10. Project References – Frosted Partitions
| Project | Country | Solution | Size | Notable Feature |
|---|
| Shanghai Corporate Office Private Offices | China | 10mm tempered + acid etch | 3200×2100 mm | Full frost, polished edges |
| Beijing Hospital Consulting Rooms | China | 8T+1.52PVB+8T + acid etch | 2800×1800 mm | Safety + privacy combination |
| Guangzhou Hotel Bathroom Partitions | China | 10mm tempered + heavy frost | 2400×1200 mm | Complete privacy, elegant finish |
| Shenzhen Tech Company Reception | China | 10mm tempered + digital print | 3600×2400 mm | Logo on frosted background |
| Singapore Retail Fitting Rooms | Singapore | 8mm tempered + ceramic frit | 2200×1500 mm | Patterned privacy, modern design |
11. Frequently Asked Questions – Frosted Glass Partitions
Q1: What is a frosted glass partition?
A frosted glass partition is a glass wall system where the glass surface has been treated (typically by acid etching or ceramic frit application) to create a translucent finish that provides visual privacy while allowing light to pass through.
Q2: How is frosted glass made for partitions?
Two primary methods: acid etching (glass immersed in acid bath to create a permanent frosted surface) and ceramic frit (ceramic ink fired into the glass surface at 680°C). Both methods produce durable, permanent finishes.
Q3: Does frosted glass provide complete privacy?
It depends on the frosting level. Heavy frost (10–20% light transmission) provides complete privacy – you can see light and shadows but no details. Light frost (60–70% transmission) obscures details but silhouettes may be visible.
Q4: Can frosted glass be combined with clear sections?
Yes. Selective frosting allows clear and frosted areas on the same panel. Common combinations include clear upper sections with frosted lower sections, or clear bands within a frosted field.
Q5: Is frosted glass more expensive than clear glass?
Yes. Frosted glass typically costs 15–30% more than equivalent clear glass due to the additional processing step. Ceramic frit patterns and digital prints carry higher premiums.
Q6: Can frosted glass be used for frameless partitions?
Yes. Acid-etched frosted glass is an excellent choice for frameless systems. The uniform frosted finish complements the clean lines of frameless hardware. Polished edges create a beautiful contrast with the frosted surface.
Q7: Does frosting weaken the glass?
No. Acid etching removes only a microscopic layer of glass (typically 20–50 microns) and does not affect the structural strength of tempered glass. Ceramic frit is fired into the surface and actually reinforces it slightly.
Q8: Can frosted glass be cleaned like regular glass?
Yes. Frosted glass can be cleaned with standard glass cleaners. Avoid abrasive pads that could scratch the surface. Acid-etched glass is particularly easy to maintain as the frosted surface hides fingerprints and smudges.
Q9: Can I get a logo or pattern on frosted glass?
Yes. Digital ceramic printing allows full-colour logos, patterns, or photographic images to be applied to frosted glass. The print is fired into the glass at 680°C, making it permanent and scratch-resistant.
Q10: How long does it take to produce frosted glass partition panels?
Standard acid-etched tempered panels: 3–4 weeks. Ceramic frit patterned panels: 4–5 weeks. Digital print panels: 5–6 weeks. Laminated frosted panels: 4–5 weeks.
12. Request Frosted Glass Partition Quote
Submit your project requirements for a competitive FOB quotation.
Required Information:
- Project type: Office / Healthcare / Hotel / Retail / Public building / Residential / Other
- Partition system: Framed / Frameless / Floor-to-ceiling / Partial-height / Sliding
- Panel dimensions: Width × Height per panel
- Number of panels
- Frosting method: Acid etch / Ceramic frit / Digital print / Sandblast
- Frosting coverage: 100% full / Upper band / Lower band / Striped / Graduated / Custom pattern
- Frosting level: Light / Medium / Heavy
- Glass type: Tempered / Laminated / Low-Iron
- Glass thickness: 8mm / 10mm / 12mm / Custom
- Interlayer (if laminated): PVB / SGP / Acoustic PVB
- Edge finish: Polished / Flat ground / Seamed
- Processing: Holes, cut-outs, notches (provide drawing)
- Door integration required? Yes / No
- Project location
- Certifications required
- Target delivery date
- 📧 Email your specification to: tomron1688@gmail.com
- 🌐 Or upload drawings at: www.jumbotemperedglass.com
- Response time: Preliminary feasibility within 24 hours; detailed quotation with frosting sample reference within 48 hours.
13. Related Pages (Internal Link Cluster)
Within Glass Partitions Section
Product Pages (Cross‑Links)
Dedicated Acoustic Solutions
- AcouSpace Acoustic Glass Partitions – Professional acoustic partition solutions
Other Applications
