📌 What Is Tempered Glass?

Tempered Glass​ — also known as Toughened Glass​ in British English — is a safety glass processed by controlled thermal treatment . Quality float glass is heated to over 600℃​ (approximately 620-650℃, near its softening point), then rapidly and uniformly cooled with high-pressure air jets (rapid quenching). This process locks the glass surfaces in a state of high compression, while the core remains in compensating tension .

💡 This physical tempering makes the glass 3 to 5 times stronger​ in impact resistance and 4 to 5 times stronger​ in bending strength than ordinary annealed glass, with a surface compressive stress of up to 95 MPa​ . It also delivers superior thermal stability (withstanding temperature variations of 250-320℃) and safe fracture behavior, making it the premier choice for windows, curtain walls, railings, shower doors, and beyond .

✨ Tempered Glass Key Properties

🏆 Tempered Glass  Key Benefits

1. 3-5× Strength Increase: Impact and bending resistance far exceed annealed glass of the same thickness, withstanding higher wind loads and external forces .

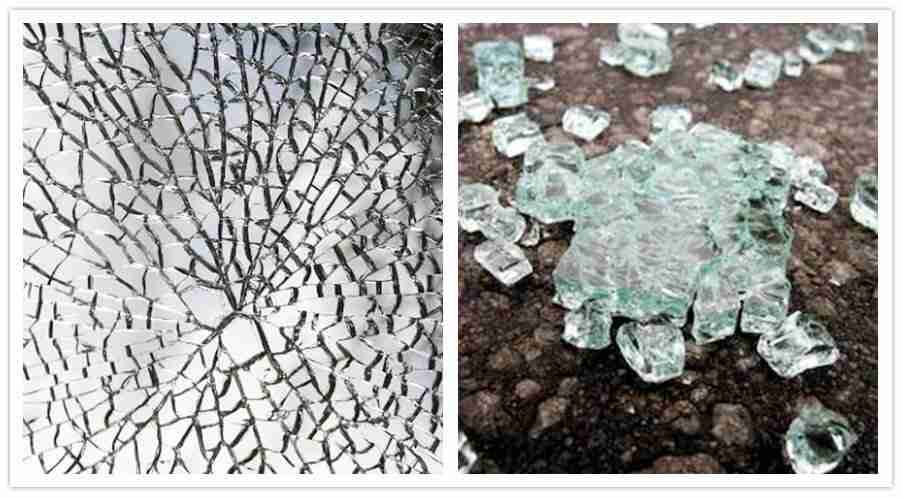

2. Safe Breakage Mode: Shatters into obtuse-angled honeycomb granules (max fragment ≤ 0.5g), eliminating sharp shards — complies with ANSI Z97.1, CPSC 16 CFR 1201 .
3. Superior Thermal Stability: Tolerates temperature jumps of 200-300℃, versus only ~50℃ for ordinary glass. Ideal for oven doors, curtain walls, skylights.
4. Jumbo Size Capability: Maximum fabrication size 3300 × 13000 mm, meeting the modern curtain wall demand for "fewer divisions, larger vision" .
5. Optional Heat Soak Test (HST): Per EN 14179, glass is held at 290℃ for ≥ 2 hours, reducing nickel sulfide (NiS)-induced spontaneous breakage rate from 0.3% to < 0.1% .
6. Full In-House Deep Processing: CNC cutting, drilling, notching, edge polishing, screen printing, and coating can all be completed before tempering .
7. Comprehensive Global Certifications: EN 12150 (CE), EN 14449, EN 1279, ASTM C1048, ASTM C1172, CCC, ISO 9001, AS/NZS 2208 .

📊 Specifications & Technical Parameters

  Base Specifications

Technical Data Sheet

Typical Applications by Thickness

🏗️ Fabrication Requirements & Process Flow

⚠️ The "non-cuttable" nature of tempered glass means all fabrication must be completed before tempering​ . Our standard process flow:

1. Cutting: Select quality clear or low-iron float glass; cut precisely to custom dimensions per client drawings
2. Edge Grinding: All edges fully ground and polished to eliminate micro-cracks — rough edges cause spontaneous breakage during tempering
3. Drilling & Notching: All holes and cutouts completed before tempering; hole edge distance ≥ 2× glass thickness
4. Washing: Automated washing for spotless surfaces
5. Tempering: Heated to 620-680℃ in professional furnace, then rapidly chilled by high-pressure air jets — forming surface compressive stress
6. Heat Soak Test (Optional): Held at 290℃±10℃ for ≥ 2 hours per EN 14179 — reduces NiS spontaneous breakage to < 0.1%
7. QC & Packaging: Flatness, transmittance, temper uniformity, and fragmentation pattern inspected piece by piece; export plywood crates with protective paper interleaving and corner guards

🏢 Applications

Tempered glass is widely specified across :

• 🏠 Windows & Doors: Energy-efficient, safe glazing for residential & commercial buildings ，Application Link：Windows  and door;
• 🚪 Shower Doors: The safe choice for humid environments ，Application Link： Shower  doors glass;

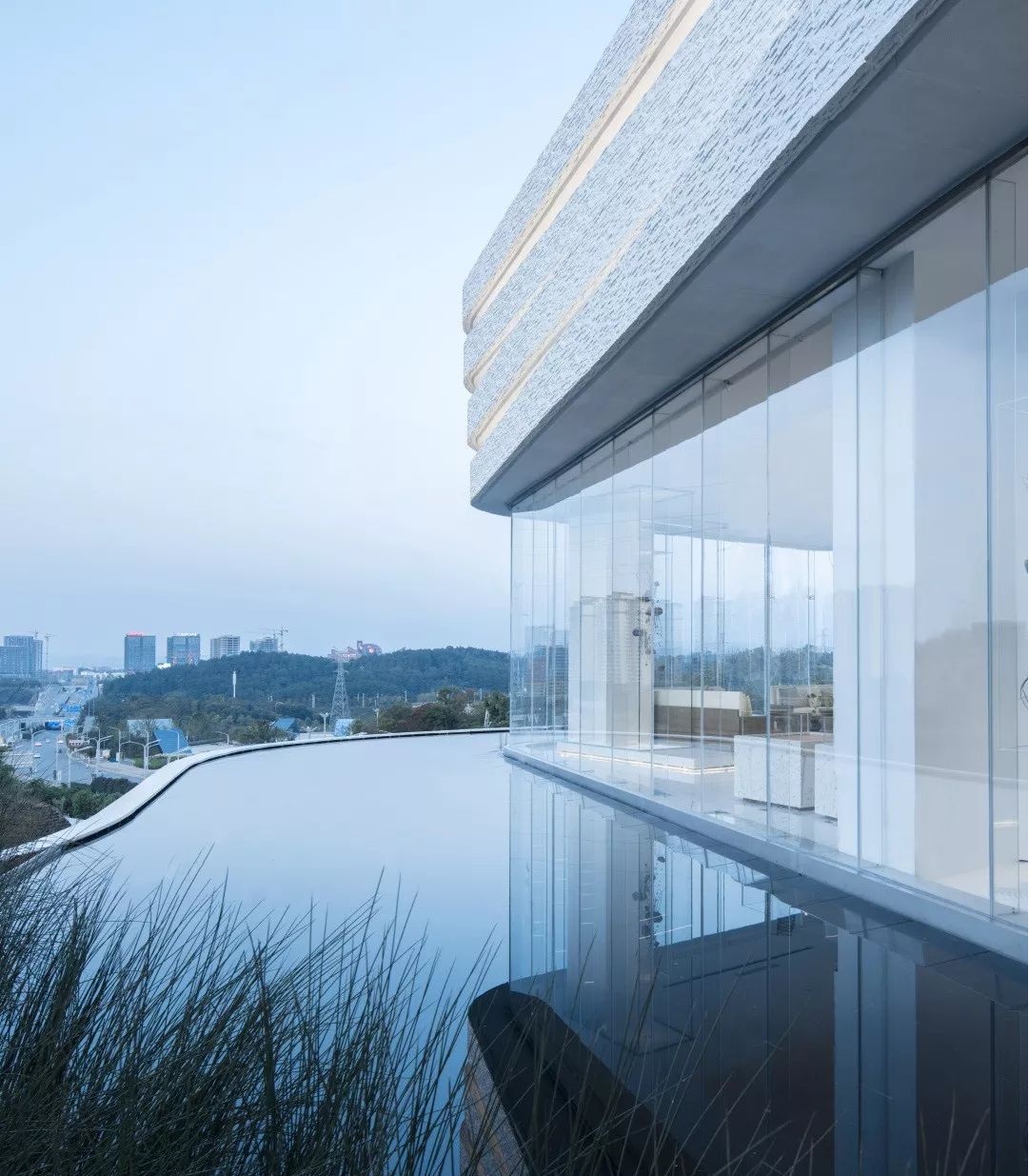

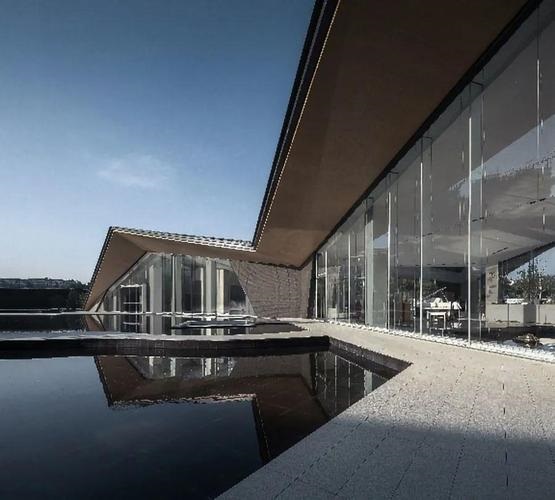

• 🏛️ Curtain Walls: Office towers, hotel façade systems, high-rise exterior glazing ，Application Link：curtain wall.
• 🔝 Railings & Balustrades: Frameless balconies, stair railings ，Application Link:Balustrade(railing)·.
• 🪟 Glass Partitions: Office and hotel lobby full-height partitions ，Application Link: Glass Partition.
• 🌿 Skylights: Commercial atriums, greenhouses ，Application Link: Skylights glass
• 🪜 Stair Treads: Floating staircases, glass steps ，Application Link:Stairs· .
• 🐠 Structural Glass: Glass fins, glass floors, display cases ，Application Link: Glass Floor.
• 🚗 Transportation: Automotive side windows, railway carriage windows (often laminated).

🪑 Furniture & Appliances: Table tops, oven doors, appliance control panels ，Application Link:

 🪟Pool Fencing Glass Selection Guide: Hurricane-Proof + Child-Safe Solutions​,，Application Link:  Pool fence glass· .

 🪟Glass Conservatory Selection Guide: U-value 0.5 + Self-Powering Tech​Application Link: Greenhouse.

📜 International Standards & Certifications

❓ Frequently Asked Questions (FAQ)

Q1: Is toughened glass breakable?

A: Toughened glass is 3-5× stronger than annealed glass, but not unbreakable. Under extreme pressure or impact, it breaks into obtuse-angled granular pieces​ that cause no serious harm — which is why it is called "safety glass" .

Q2: Can tempered glass be cut?

A: No. Once tempered, all sizes and edges are fixed. Tempered glass cannot be cut, drilled, or ground . All processing must be done before tempering — another reason we strongly advise clients to provide precise dimension drawings and let us handle full pre-tempering CNC cutting, drilling, and edgework .

Q3: Is tempered glass soundproof?

A: Monolithic tempered glass offers moderate sound insulation (STC ~30dB). For higher acoustic performance, it can be further processed into laminated glass​ or an insulated glass unit (IGU)​ .

Q4: Why does tempered glass spontaneously break, and how do you prevent it?

A: Spontaneous breakage is typically caused by nickel sulfide (NiS) inclusions. Our optional Heat Soak Test (EN 14179)​ holds the glass at 290℃ for ≥ 2 hours, triggering any defective panes to break before shipment — reducing the field breakage rate from 0.3% to < 0.1% . We highly recommend HST for high-rise and human-safety-sensitive projects.

Q5: What thicknesses are available?

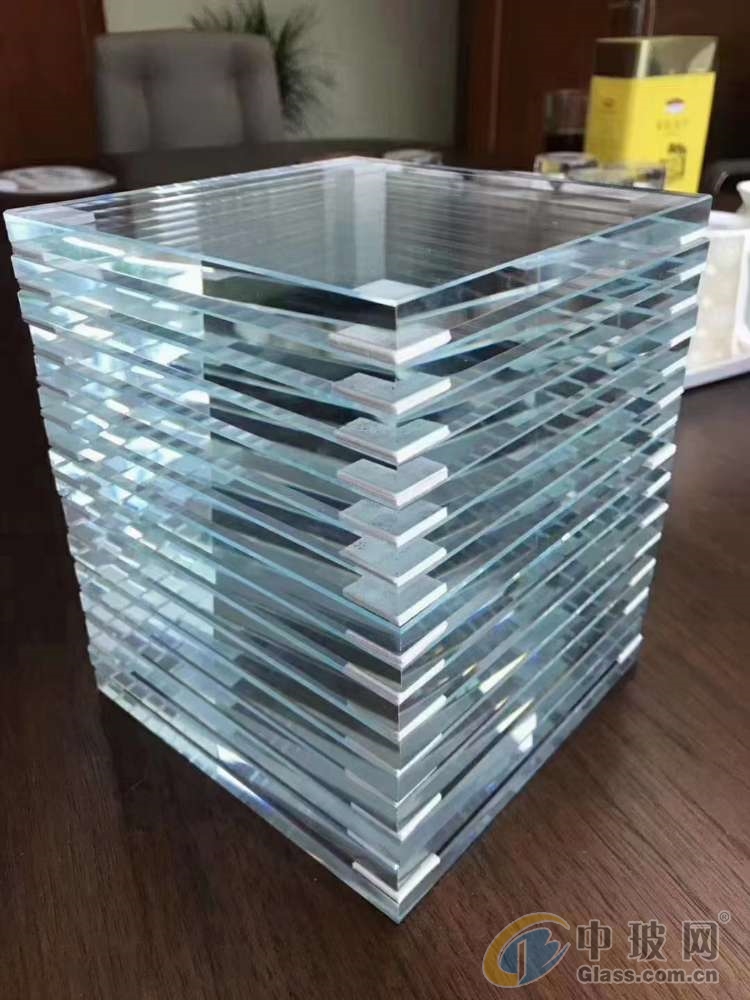

A: Standard thicknesses: 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm, 19mm, 25mm. 10mm tempered glass​ and 12mm toughened glass​ are the mainstream choices for jumbo façades and structural glazing. Custom thickness options are available.

Q6: How do I judge if tempered glass is qualified?

A: Qualified tempered glass must show: ① Surface compressive stress ≥ 95 MPa; ② 40-60 granular fragments in a 50×50mm test area, with no oversized sharp chunks; ③ Warpage ≤ 0.1% of glass diagonal; ④ Valid EN 12150 / CE / ASTM certifications . We provide real fragmentation test photos or short videos upon request.

Q7: How much does tempered glass cost, and what is the lead time?

A: Tempered glass typically carries a higher price than annealed glass of the same color and thickness. Final pricing is influenced by size, number of holes, edgework requirements, HST option, and order quantity. Standard lead time is 15 days; 15-20 days for panels with holes or cutouts . Contact us for an accurate quote.

Q8: What related processing can you provide?

A: Beyond monolithic tempered glass, we also supply tempered laminated glass, insulated tempered glass units (IGU), Low-E tempered IGU, screen-printed tempered glass, and curved tempered glass​ .

🔗 Related Products

• 🔹 Laminated Glass: PVB / SGP interlayer — anti-theft, anti-impact, acoustic
• 🔹 Insulated Glass Unit (IGU): Double or multi-pane — energy-saving & thermal insulation
• 🔹 Low-E Glass: The premier choice for building energy efficiency
• 🔹 Reflective Glass: Gold, silver, blue and more color options
• 🔹 Fire-Rated Glass: EI 30-120 minutes fire resistance
• 🔹 Bulletproof Glass: UL 752 certified
• 🔹 Heat Soaked Glass: Spontaneous breakage rate < 0.1%
• 🔹 Ultra Clear Tempered Glass: High light transmittance, crystal clarity
• 🔹 Jumbo Tempered Glass: Up to 3300×13000mm oversized panels

📦 Tempered Glass Product List

Browse our tempered glass series:

1. 15mm Jumbo Tempered Glass for Grand Hotel Lobbies
2. Extra Thick 25mm Jumbo Tempered Glass for Heavy Loads
3. Custom Thickness Jumbo Glass for Bespoke Façades
4. 19mm Ultra-Clear Structural Tempered Glass
5. 10mm Tempered Glass for High-End Office Partitions
6. Heat Soaked Jumbo Tempered Glass (6mm-25mm)
7. 8mm Toughened Glass for Frameless Balustrades
8. 5mm Toughened Glass for Shower Doors & Splashbacks
9. 4mm Tempered Glass for Furniture & Appliances
10. Panoramic Oversized Villa Windows – Custom Tempered Glass

🏆 Why Choose Us?

• ✅ Full in-house deep processing: Own tempering furnaces, lamination line, IGU line, CNC machining center — true cut to size tempered glass capability
• ✅ Jumbo size leader: Max fabrication 3300 × 13000 mm​ for landmark projects
• ✅ Complete certifications: EN 12150, CE, ASTM C1048, AS/NZS 2208, CCC, ISO 9001
• ✅ Optional HST: Spontaneous breakage rate < 0.1%, ideal for high-rise & safety-critical applications
• ✅ Export-grade packaging: Plywood crates with protective paper interleaving and corner guards, suitable for sea/land transport
• ✅ 15-20 day lead time: 15 days standard; 15-20 days for panels with holes or cutouts
• ✅ Free TDS, test reports, and physical samples
• ✅ Worldwide shipping: From Qingdao / Shanghai / Shenzhen major ports

🎯 Get Your Tempered Glass Quote

If you're sourcing tempered glass​ or toughened glass​ for your next project, we recommend:

1. Send your project drawing or spec sheet​ → we match optimal thickness, edgework & HST requirement
2. Request physical samples​ → confirm quality & optical clarity
3. Receive TDS & quotation​ → within 2 business days

📧 Contact: tomron1688@gmail.com 🌐 Website: www.jumbotemperedglass.com
