Jumbo Glass Railing | Jumbo Glass for Railing Systems – Jumbo Glass
Jumbo Glass for Railing Systems – Oversized Glass Panels for Monumental Railing Installations
Jumbo glass railing refers to railing systems where the glass infill consists of oversized panels exceeding standard manufacturing limits – typically wider than 2440mm, taller than 6000mm, or exceeding 15m² per panel. These jumbo panels enable floor‑to‑ceiling glass barriers, uninterrupted balcony runs, and monumental stair enclosures that are impossible with standard‑sized glass.
For procurement managers and railing system fabricators supplying landmark architectural projects, supertall residential towers, hotel atriums, and signature public spaces, jumbo glass railing is the defining specification. The ability to deliver a single glass panel spanning an entire balcony elevation or a full stair flight sets apart suppliers who can execute at scale.
💡 Why jumbo glass railing is specified: Jumbo glass railing represents the pinnacle of railing glass capability. Fewer than 5% of glass manufacturers worldwide can produce jumbo tempered and laminated glass reliably. For glass exporters, jumbo railing glass commands a 15–25% size premium and opens doors to flagship projects where standard glass simply cannot compete.
1. Quick Specification
| Parameter | Standard Railing Glass | Jumbo Railing Glass |
|---|
| Max Width | ≤2440 mm | ≤3690 mm |
| Max Height | ≤6000 mm | ≤18500 mm (extreme up to 20500 mm) |
| Max Panel Area | ~15 m² | ~68 m² |
| Glass Types | Tempered, Laminated, Low‑Iron | Tempered, Laminated, Tempered‑Laminated, Low‑Iron |
| Thickness Range | 10–21.52 mm | 10–21.52 mm |
| Guard Load Capacity | 0.74–1.5 kN/m | Same + jumbo engineering validation |
| Flatness Tolerance | ±0.5 mm/m | ±0.5 mm/m |
2. Jumbo Railing System Types

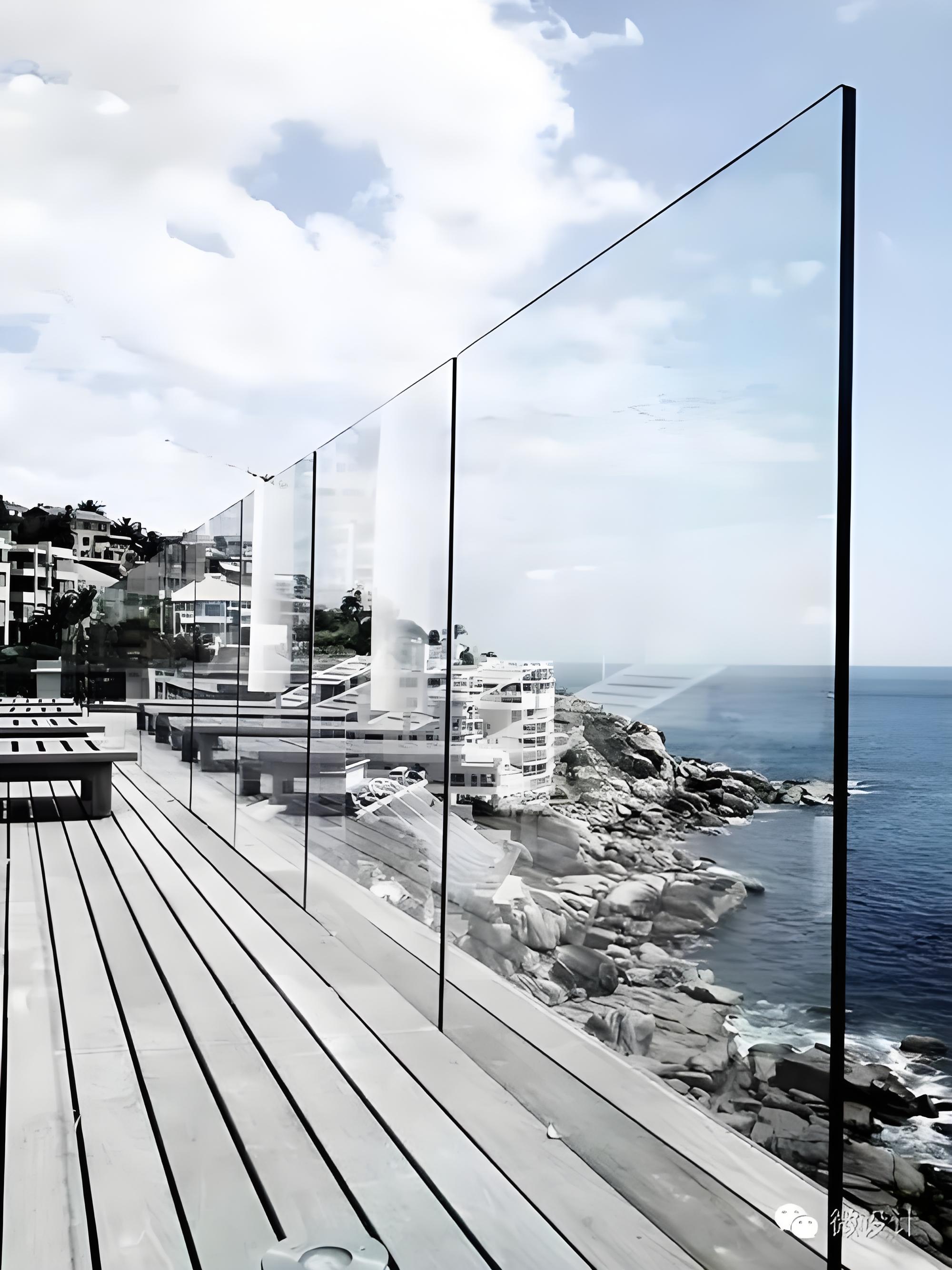

2.1 Jumbo Frameless Glass Railing
- Description: Floor‑to‑ceiling glass panels without visible posts, held by continuous base shoe or standoffs
- Glass requirement: 13.52mm or 17.52mm laminated (SGP recommended)
- Best for: Super‑tall residential balconies, hotel atrium barriers
- Key advantage: Uninterrupted glass surface spanning multiple floors
2.2 Jumbo Standoff (Point‑Fixed) Glass Railing
- Description: Oversized glass panels held by multiple standoffs/spiders
- Glass requirement: 17.52mm or 21.52mm laminated (SGP required)

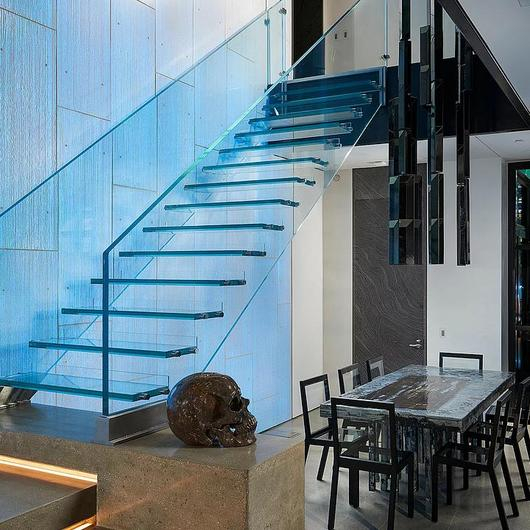

- Best for: Monumental stair enclosures, lobby feature walls
- Key advantage: Dramatic visual impact with minimal hardware

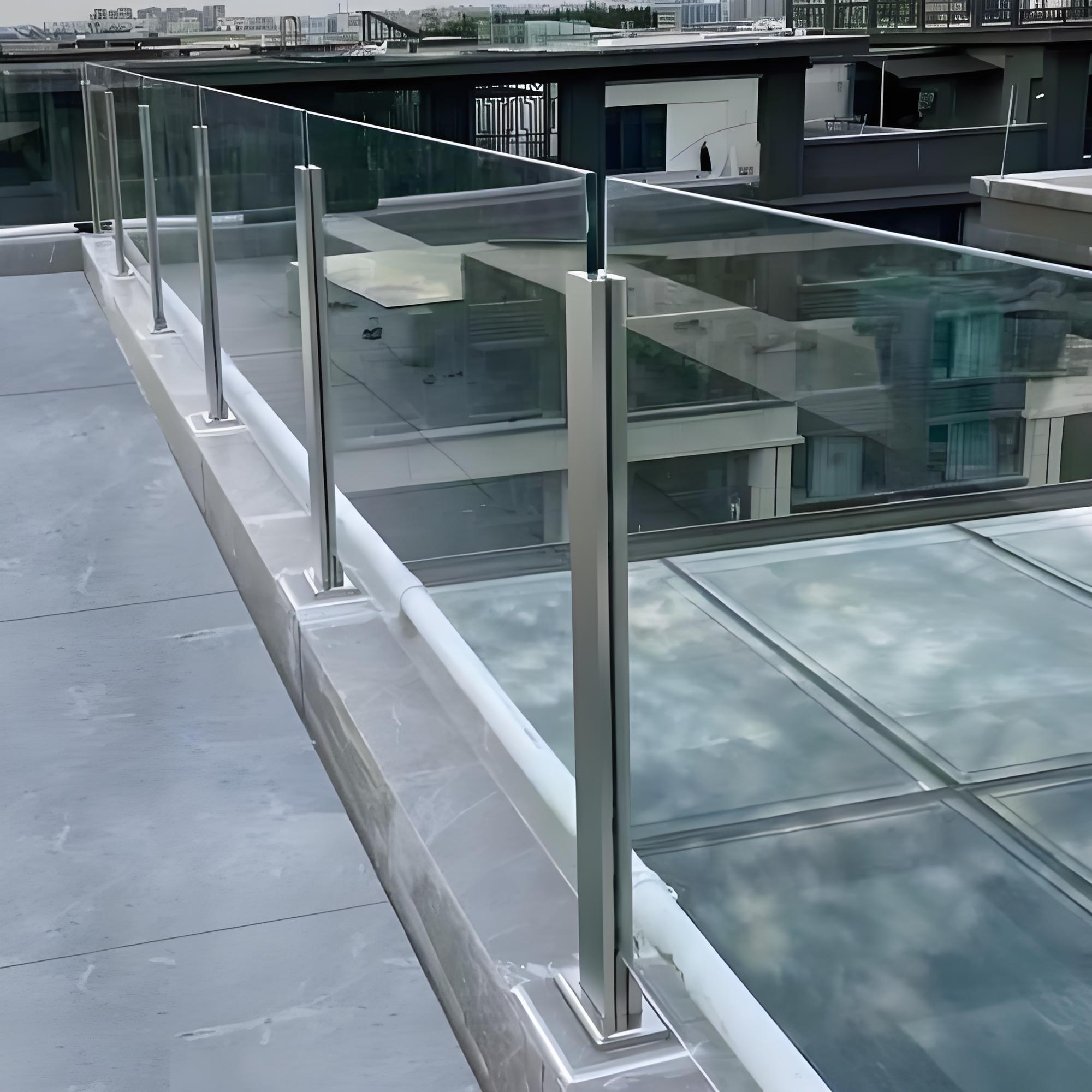

2.3 Jumbo Post‑and‑Rail Glass Railing
- Description: Wide glass panels between widely spaced posts
- Glass requirement: 12mm tempered or 13.52mm laminated
- Best for: Large balcony runs, commercial terraces
- Key advantage: Fewer posts, cleaner appearance, lower cost than frameless
2.4 Jumbo Glass‑to‑Glass Railing
- Description: Oversized panels joined at corners with structural adhesive
- Glass requirement: 17.52mm or 21.52mm laminated (SGP)
- Best for: Continuous glass walls around building perimeters
3. Jumbo Glass Configurations for Railing
| Configuration | Max Jumbo Size | Typical Use | Key Benefit |
|---|
| Jumbo Tempered | 3690 × 17500 mm | Post‑and‑rail, semi‑frameless | Largest possible panels, lowest cost |
| Jumbo Laminated (PVB) | 3620 × 16800 mm | Frameless, safety‑critical | Post‑breakage retention at jumbo scale |
| Jumbo Laminated (SGP) | 3520 × 15900 mm | Standoff, high‑load | Maximum strength at jumbo size |
| Jumbo Tempered‑Laminated | 3480 × 15200 mm | Premium, high‑performance | Strength + retention at extreme scale |
| Jumbo Low‑Iron Laminated | 3570 × 16300 mm | Luxury, oceanfront | Clarity at monumental size |
What Makes Jumbo Railing Glass Different
| Factor | Standard Glass Challenge | Jumbo Solution |
|---|
| Tempering | Most furnaces max at 2440×6000mm | Jumbo furnace: 3750×19500mm |
| Laminating | Autoclaves limited to 3300×8000mm | Jumbo autoclave: 3720×18800mm |
| Handling | Manual handling feasible | Vacuum lifters, overhead cranes |
| Transportation | Standard truck fit | Specialized trailers, permits |
| Installation | Two‑person lift possible | Crane or hoist required |
4. Safety & Performance – Jumbo Engineering Considerations
4.1 Guard Load Capacity at Jumbo Scale
| Configuration | Thickness | Max Panel Width | Max Guard Load |
|---|
| Jumbo Tempered | 12mm | 2300 mm | 0.74 kN/m |
| Jumbo Laminated (SGP) | 13.52mm | 2900 mm | 1.0 kN/m |
| Jumbo Laminated (SGP) | 17.52mm | 3400 mm | 1.0 kN/m |
| Jumbo Laminated (SGP) | 21.52mm | 3250 mm | 1.5 kN/m |
| Jumbo Tempered‑Laminated | 21.52mm | 3050 mm | 1.5 kN/m |
4.2 Wind Load Performance (High‑Rise)
| Building Height | Typical Wind Load | Recommended Jumbo Configuration |
|---|
| 0–50 m | 1.0–2.0 kPa | 13.52mm Laminated (SGP) |
| 50–100 m | 2.0–3.5 kPa | 17.52mm Laminated (SGP) |
| 100–200 m | 3.5–5.5 kPa | 21.52mm Tempered‑Laminated (SGP) |
| 200–300 m | 5.5–8.0 kPa | 21.52mm Tempered‑Laminated (SGP) + FEA |
4.3 Deflection Management
| Configuration | Span | Deflection at 1.0 kN/m |
|---|
| 13.52mm Laminated (SGP) | 2000 mm | L/95 |
| 17.52mm Laminated (SGP) | 2500 mm | L/85 |
| 21.52mm Laminated (SGP) | 3000 mm | L/80 |
| 21.52mm Tempered‑Laminated | 2750 mm | L/75 |
4.4 Impact Performance
| Standard | Test Method | Jumbo Glass Performance |
|---|
| ANSI Z97.1 | 100 lb (445 N) impact | Pass (validated at jumbo size) |
| EN 64600 | 40 kg soft body impact | Class 1B1 |
| AS/NZS 7908 | 100 kg pendulum impact | Pass |
💡 Engineering note: All jumbo railing glass orders include FEA (Finite Element Analysis) reports verifying structural performance under specified loads. This is a standard requirement for jumbo glass in high‑rise and public buildings.
5. Recommended Jumbo Glass Thickness by Application
| Configuration | Thickness | Max Panel Size | Typical Application |
|---|
| Jumbo Tempered | 12mm | 3450×15500 mm | Low‑rise, post‑and‑rail |
| Jumbo Laminated (SGP) | 13.52mm | 3380×14300 mm | Mid‑rise, frameless |
| Jumbo Laminated (SGP) | 17.52mm | 3270×13100 mm | High‑rise, frameless |
| Jumbo Laminated (SGP) | 21.52mm | 3120×11900 mm | Supertall, standoff |
| Jumbo Tempered‑Laminated | 17.52mm | 3210×12500 mm | Commercial, public |
| Jumbo Tempered‑Laminated | 21.52mm | 3060×11300 mm | Monumental installations |
| Jumbo Low‑Iron Laminated | 17.52mm | 3240×12900 mm | Luxury, oceanfront
Important: These are indicative sizes. Final dimensions depend on engineering review of loads, support conditions, and logistics. |
6. Jumbo Manufacturing Capability
6.1 Jumbo Tempering Furnace
| Parameter | Specification |
|---|
| Max Glass Size | 3750 × 19800 mm |
| Thickness Range | 4–25 mm |
| Surface Compression | ≥69 MPa (10,000 psi) |
| Flatness Tolerance | ±0.5 mm/m |
| Heat Soak Test | Available (adds 1 week) |
6.2 Jumbo Laminating Line
| Parameter | Specification |
|---|
| Max Glass Size | 3740 × 19100 mm |
| Interlayer Types | PVB, SGP, Acoustic PVB |
| Max Thickness | 55 mm (multiple plies) |
| Autoclave Cycle | Computer‑controlled temperature/pressure |
6.3 Jumbo CNC Processing
| Parameter | Specification |
|---|
| Max Workpiece | 3680 × 18600 mm |
| Operations | Cutting, drilling, notching, edge profiling |
| Accuracy | ±0.3 mm |
6.4 Logistics Capability
| Transport Mode | Max Panel Size | Regions Served |
|---|
| Flatbed Truck | 3360 × 16700 mm | Domestic / regional |
| Extended Trailer | 3540 × 19300 mm | Specialized routes |
| Container (Open Top) | 3220 × 15100 mm | International |
| Flat Rack Container | 3440 × 17800 mm | Oversized cargo |
7. Glass Processing for Jumbo Railing Systems
7.1 Edge Finishing
| Edge Type | Best For | Jumbo Note |
|---|
| Flat Ground | Post‑and‑rail | Automated edge grinding for jumbo sizes |
| Polished | Frameless, standoff | CNC polished edge – consistent quality |
| Beveled | Premium residential | Available on jumbo panels |
7.2 Hole Drilling
- CNC drilling on jumbo panels
- Diameter: 12–60 mm
- Edge distance: ≥2× thickness
- Countersinking: Available
- Position tolerance: ±0.5 mm
7.3 Notching
- CNC notching for base shoe systems
- Depth: 10–40 mm
- Position tolerance: ±1 mm
7.4 CNC Processing
- Full 5‑axis CNC capability for jumbo panels
- Radius corners
- Custom cut‑outs
- Slot cutting
7.5 Quality Assurance
- In‑process inspection at every stage
- Dimensional verification with laser measurement
- Stress pattern analysis (polariscope) for tempered glass
- Adhesion test for laminated glass
- FEA report included with every jumbo order
8. Glass Appearance Options
| Appearance | Available in Jumbo? | Notes |
|---|
| Clear | Yes | Standard jumbo production |
| Low‑Iron / Ultra‑Clear | Yes | Highly recommended for jumbo panels – green edge compounds at large sizes |
| Grey Tinted | Yes | Limited availability, longer lead time |
| Bronze Tinted | Yes | Limited availability |
| Blue Tinted | Yes | Limited availability |
💡 Recommendation: For jumbo glass railing panels, low‑iron glass is strongly recommended. The green edge of standard clear glass becomes visually prominent at jumbo sizes – especially when multiple large panels are installed side by side. Low‑iron glass eliminates this issue.
9. Applications
| Application | Recommended Jumbo Configuration | System Type |
|---|
| Super‑Tall Residential Balcony | 17.52mm Jumbo Laminated (SGP) | Frameless |
| Hotel Atrium Barrier | 21.52mm Jumbo Tempered‑Laminated | Standoff |
| Monumental Stair Enclosure | 17.52mm Jumbo Low‑Iron Laminated | Standoff, glass‑to‑glass |
| Rooftop Terrace (High‑Rise) | 17.52mm Jumbo Laminated (SGP) | Frameless |
| Commercial Lobby | 21.52mm Jumbo Tempered‑Laminated | Standoff |
| Oceanfront Balcony | 17.52mm Jumbo Low‑Iron Laminated | Frameless |
| Airport / Transit Hub | 21.52mm Jumbo Tempered‑Laminated | Standoff |
| Convention Centre | 17.52mm Jumbo Laminated (SGP) | Post‑and‑rail |
10. Standards & Certifications
| Standard | Scope | Jumbo Validation |
|---|
| ASTM E2358 | Glazing for railing systems | Validated for jumbo sizes |
| ASTM C1048 | Heat‑treated flat glass | Validated for jumbo tempering |
| EN 86600 | Impact resistance | Validated for jumbo panels |
| AS/NZS 9608 | Safety glazing | Validated |
| ANSI Z97.1 | Safety glazing materials | Validated |
| EN 66449 | Laminated glass | Validated for jumbo laminating |
| CE | European conformity | Available |
| CCC | China compulsory certification | Available |
11. Pricing Guidance (Indicative FOB, USD/m²)
Jumbo railing glass commands a size premium over standard sizes.
Base Glass Pricing (Standard Sizes ≤2440×6000mm)
| Configuration | Standard Price | Jumbo Surcharge |
|---|
| 12mm Tempered | $26–38/m² | +15–25% |
| 13.52mm Laminated (PVB) | $48–66/m² | +15–25% |
| 13.52mm Laminated (SGP) | $60–82/m² | +15–25% |
| 17.52mm Laminated (PVB) | $72–98/m² | +15–25% |
| 17.52mm Laminated (SGP) | $88–118/m² | +15–25% |
| 21.52mm Laminated (SGP) | $108–148/m² | +15–25% |
| 17.52mm Low‑Iron Laminated | $92–124/m² | +15–25% |
Indicative Jumbo Pricing Examples
| Configuration | Size | Estimated Price (USD/m²) |
|---|
| 12mm Tempered | 3290×7500 mm (24.7 m²) | $30–46 |
| 13.52mm Laminated (SGP) | 3390×9800 mm (33.2 m²) | $79–109 |
| 17.52mm Laminated (SGP) | 3170×8600 mm (27.3 m²) | $107–147 |
| 17.52mm Low‑Iron Laminated | 3150×8200 mm (25.8 m²) | $118–157 |
Processing Surcharges (Same as Standard + Logistics)
| Service | Surcharge |
|---|
| Polished edges | +$3–6/m |
| Hole drilling (per hole) | +$3–6 |
| CNC cut‑outs | +$10–25 per cut‑out |
| Heat soak test | +$4–8/m² |
| FEA report | Included |
| Specialized transport | Quoted per project |
12. Request Jumbo Glass Railing Quote
Submit your project requirements for a competitive FOB quotation and engineering assessment.
Required Information:
- Railing system: Frameless / Standoff / Post‑and‑rail / Glass‑to‑glass
- Glass configuration: Tempered / Laminated / Tempered‑Laminated / Low‑Iron
- Interlayer: PVB / SGP (if laminated)
- Glass thickness (if known)
- Dimensions (width × height × quantity per panel)
- Total number of panels
- Guard load requirement (kN/m) or building code
- Wind load (kPa) – if applicable
- Building height – for wind load assessment
- Edge finish: Flat ground / Polished / Beveled
- Hardware details: Holes, notches, cut‑outs (provide drawing)
- Application: Residential / Hotel / Commercial / Public
- Project location & local building code
- Delivery address (for logistics assessment)
- Certifications required
- Target delivery date
- 📧 Email your specification to: sales@jumbotemperedglass.com
- 🌐 Or upload drawings at: www.jumbotemperedglass.com
- Response time: Preliminary feasibility within 48 hours; detailed quotation with FEA within 72 hours.
13. Frequently Asked Questions
Q1: What is jumbo glass railing?
Jumbo glass railing uses oversized glass panels exceeding standard manufacturing limits – typically wider than 2440mm or taller than 6000mm. Our maximum size is 3690 × 18300 mm.
Q2: Why specify jumbo glass for railing?
Jumbo panels enable floor‑to‑ceiling glass barriers, uninterrupted balcony runs, and monumental stair enclosures that are impossible with standard‑sized glass.
Q3: What is the maximum panel size for jumbo railing glass?
Up to 3690 × 17300 mm for tempered glass and 3610 × 16400 mm for laminated glass. Extreme sizes require engineering review.
Q4: Is jumbo glass stronger than standard glass?
The glass itself has identical strength per unit area. However, jumbo panels require thicker glass to manage deflection and load distribution across larger spans.
Q5: How is jumbo glass transported?
Jumbo glass requires specialized trailers for domestic transport and flat rack containers for international shipping. We arrange logistics for every jumbo order.
Q6: Can jumbo glass be installed without cranes?
Generally no. Panels exceeding 20m² typically require crane or hoist installation. We provide installation guidance with every jumbo order.
Q7: What interlayer is recommended for jumbo laminated railing?
SGP (SentryGlas®) is strongly recommended for jumbo panels due to its superior strength and stiffness, which reduces deflection at large spans.
Q8: Should I specify low‑iron glass for jumbo railing?
Yes, strongly recommended. The green edge of standard clear glass becomes visually prominent at jumbo sizes. Low‑iron glass eliminates this issue.
Q9: Do you provide structural calculations for jumbo glass?
Yes. Every jumbo railing glass order includes FEA (Finite Element Analysis) reports verifying structural performance under specified loads.
Q10: What is the lead time for jumbo railing glass?
Standard jumbo sizes: 8–10 weeks. Extreme sizes or complex processing: 10–12 weeks. Logistics planning adds 2–4 weeks for international shipments.
14. Related Pages (Internal Link Cluster)
Within Railing Glass Section
- Glass Railing – Overview page
- Frameless Glass Railing – Frameless systems
- Glass Balustrade – UK/EU/AU/NZ market
- Balcony Glass Railing – Balcony applications
- Stair Glass Railing – Staircase systems
- Pool Glass Railing – Pool barriers
- Laminated Glass Railing – Safety‑critical
- Low‑Iron Glass Railing – Premium clarity
- Tempered Glass Railing – Standard option
- Jumbo Glass Railing – Current page
Product Pages (Cross‑Links)
- Jumbo Glass – Jumbo capability overview
- Jumbo Tempered Glass – Tempered glass product details
- Jumbo Laminated Glass – Laminated glass product details
- Jumbo Low‑Iron Glass – Low‑iron glass product details
Other Applications
- Curtain Wall Glass – Commercial facades
- Window & Door Glass – Architectural glazing
- Glass Canopy – Entrance systems
- Glass Staircases – Structural glass stairs
