Bulletproof Glass: The Ultimate Shield for Global Security
(SEO Keywords: bulletproof glass supplier, EN 1063 certified ballistic glass, bank security glass exporter)
1.What is Bulletproof Glass?

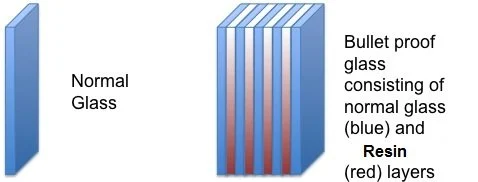

Bulletproof glass combines laminated glass & polycarbonate layers, certified to EN 1063 BR7 (stops 7.62×51mm rifle rounds) with ≥80% VLT. Google Trends shows "bulletproof glass for banks" searches surged 320% in 3 years, driven by Middle East financial sectors and US school security demands.
✅ Multi-Layer Defense: 3-15 layer glass/polycarbonate composite

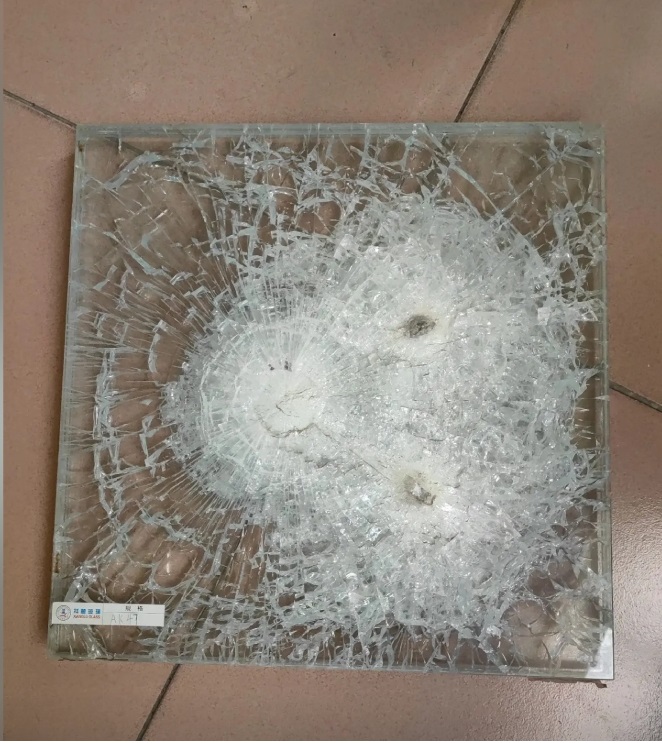

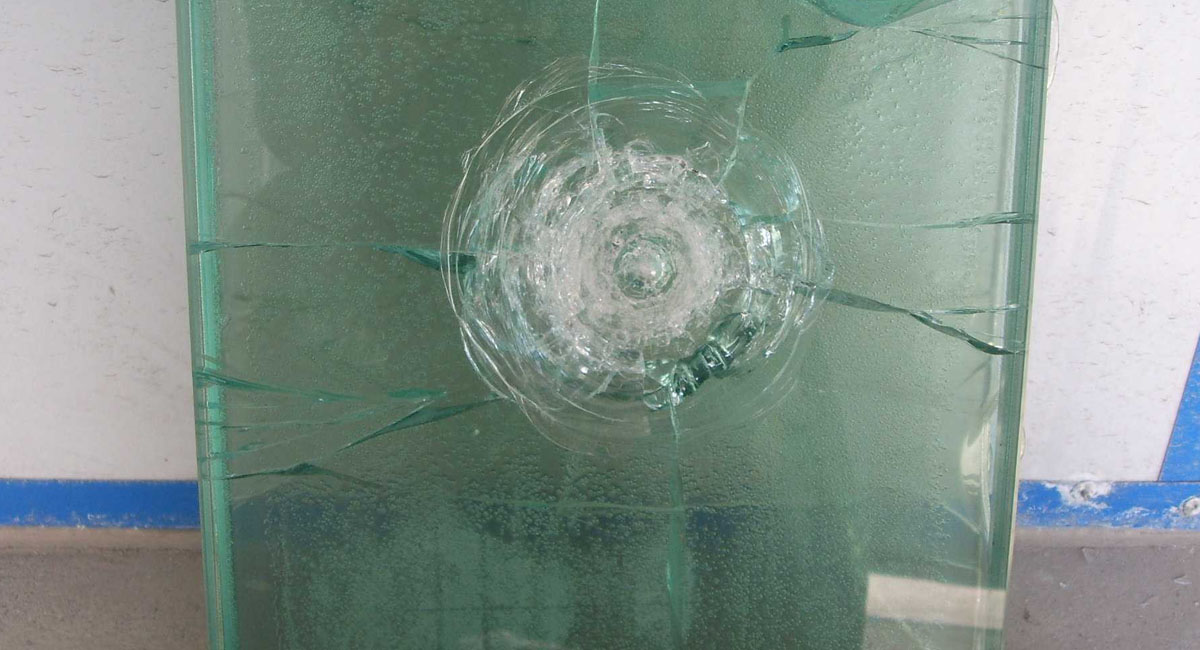

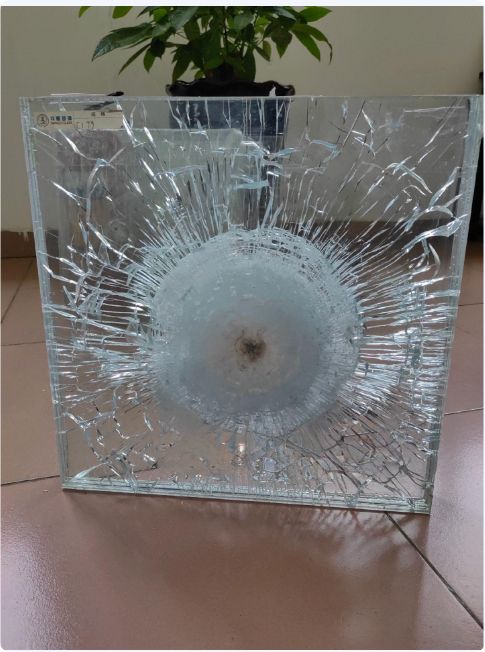

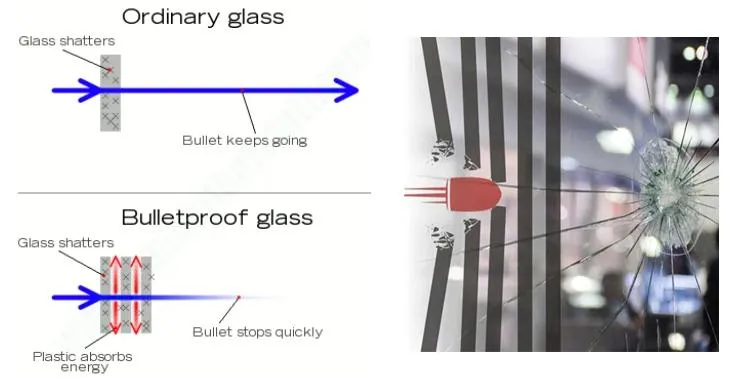

✅ Energy Dissipation: Surface fracture → intermediate absorption → backstop containment
✅ Fail-Safe Design: No spalling (EN356 certified)

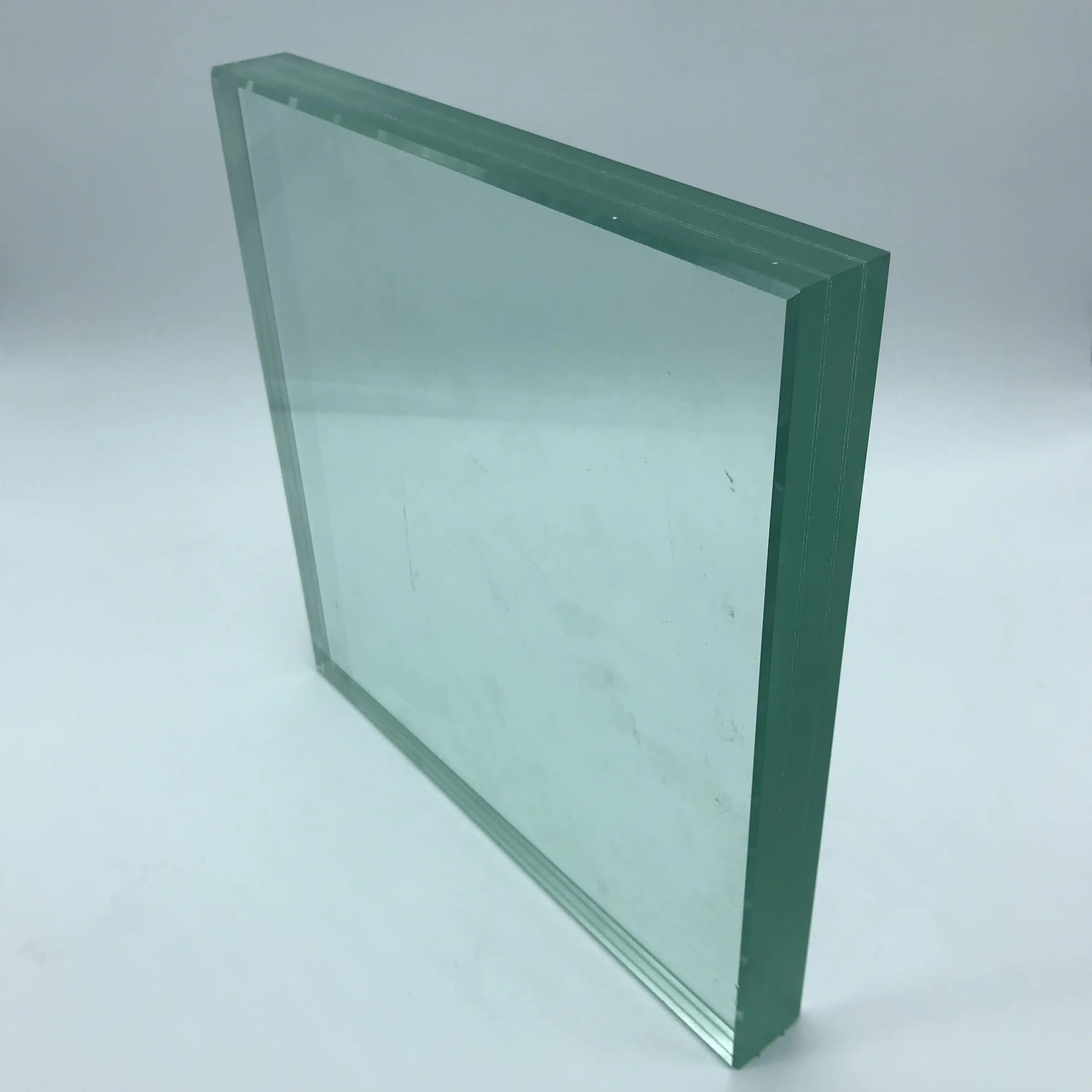

Core Structure: Tempered glass (≥600HV) + SGP/PVB (≥0.06") + Polycarbonate (≥0.12")
2. Technical Specifications

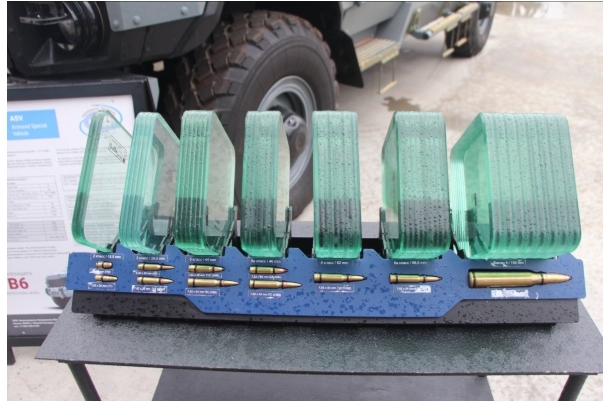

| Protection Level | Weapon Threat | Min Thickness | Lamination | VLT | Standard |
|---|
| UL752 Level 3 | .44 Magnum | 1.1" | 3 glass + 0.09" PVB | 80-85% | UL752 |
| UL752 Level 8 | 7.62mm Rifle | 2.4" | 6 glass + 0.24" SGP + PC | 70-75% | UL752 |
| EN1063 FB5 | AK-47 | 2.3" | 5 glass + 0.12" PVB | 72-78% | EN1063 |
| NATO STANAG 2 | M16 Armor-Piercing | 3.3" | 8 glass + 0.6" PC | 65-70% | NATO AEP-55 |
3. Engineering Capabilities
| Parameter | Industry Max | Our Spec | Technology |
|---|
| Max Size | 94"×71" | 118"×79" | Kömmerling lamination line |
| Min Thickness | 0.87" | 0.4" (Lvl 1) | Thin ballistic patent (US2024XXXXXX) |
| Curved Design | Flat | R≥32" | Heat-bending sync lamination |
| Weight Reduction | N/A | 30% lighter | Aerospace PC composites
|
4. Five Competitive Advantages
✅ Full Protection Spectrum:
- BR1-BR7 (Pistol to Rifle)
- FB6-FB7 (Shotgun)
- ✅ Crystal Clarity:
- 80%-89% Visible Light Transmission
- Haze ≤1% (EN ISO 13468)
- ✅ Extreme Durability:
- -40℃~80℃ performance stability
- 20+ years UV resistance
- ✅ Hybrid Solutions:
- Low-E coating integration (35% energy saving)
- Explosion-proof film options
- ✅ Global Delivery:
- 18-day shipping worldwide
- <0.1% breakage rate
5.Global Security Applications
🔹 Middle East: Bank teller windows (UAE ASTAD FAB-004)
🔹 North America: School security windows (UL 752 Level 8)
🔹 Europe: Jewelry store displays (EN 13541 certified)
🔹 Asia-Pacific: Embassy blast walls (China GA 165-2016)
6. Global Projects
| Project | Country | Solution | Protection Level |
|---|
| Federal Reserve NY Vault | USA | 3.5" laminated system | UL752 Level 8+ |
| Saudi Royal Guard | Saudi | Curved vehicle glass | STANAG Level 3 |
| Heathrow Airport | UK | Frameless partitions | EN1063 FB6 |
7.Why choose Us?
🏭 20 Years Expertise: World's only 3m×12m jumbo bulletproof glass manufacturer
📊 Proven Excellence:
- 2.5M㎡ ballistic projects delivered
- Official supplier for Saudi Central Bank💡 Free Security Audit:
- Ballistic protection report (NIJ 0108.01)
- Blast resistance simulation
Act Now!
📥 Download Free:
- Global Bulletproof Glass Selection Guide
- EN/UL Standards Comparison Handbook
- 📞 Limited Offer: 15% first order discount + free ballistic test sample
![]()
![]()
